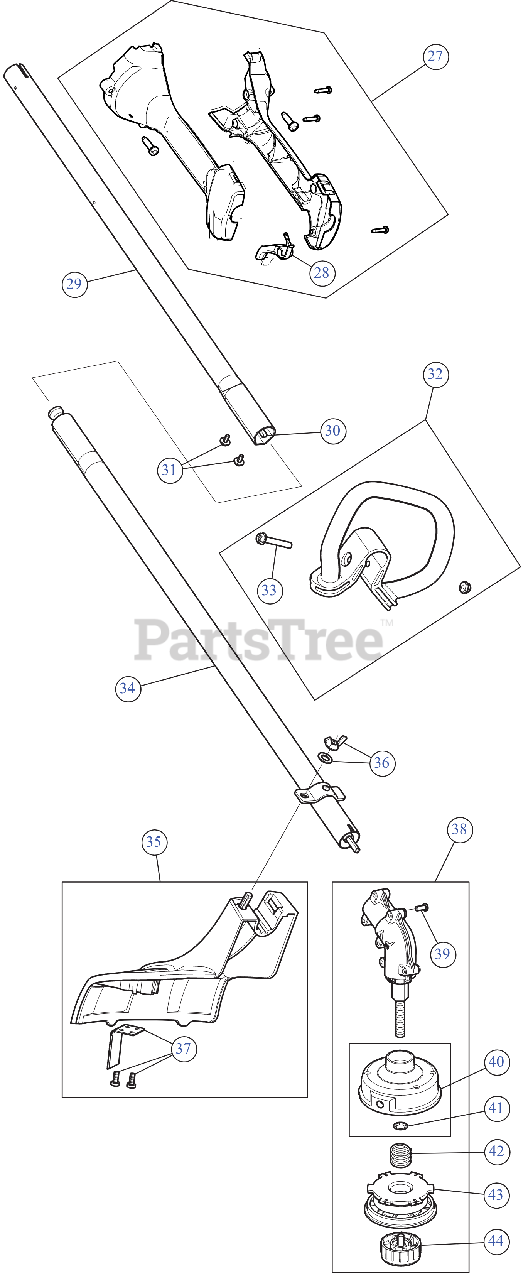

H 2520 (41ADZ04C735) - Hyper Tough String Trimmer General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title

27

MTD 753-09146

THROTTLE GRIP ASSEMBLY

Note: (Incl. 28)

$7.99

$

In Stock, Qty 6

0

28

MTD 731-13693

THROTTLE TRIGGER

$2.99

$

In Stock, Qty 12

0

29

MTD 753-09147

UPPER BOOM ASSEMBLY

Note: (Incl. 30)

$6.99

$

In Stock, Qty 12

0

30

MTD 753-06216

UPPER SHFT

$6.99

$

In Stock, Qty 9

0

31

MTD 710-06562

SCREW 8-32X3/8

$2.49

$

In Stock, Qty 20+

0

32

MTD 753-08042

D-HANDLE

Note: (Incl. 33)

$4.99

$

In Stock, Qty 5

0

33

MTD 753-06040

BOLT 1/4-20X1 1/2

$6.49

$

In Stock, Qty 8

0

34

MTD 753-08686

LOWER BOOM ASSEMBLY

$20.99

$

In Stock, only 1 left!

0

35

MTD 753-08360

GUARD & BLADE ASSEMBLY

Note: (Incl. 36 & 37)

$14.99

$

In Stock, Qty 7

0

36

MTD 753-04282

BLADE GUARD MOUNTING HARDWARE

$23.99

$

In Stock, Qty 6

0

37

MTD 753-08355

BLADE ASSEMBLY W/HDW

$3.99

$

In Stock, Qty 19

0

38

MTD 753-06571

GEARBOX ASSEMBLY

Note: (Incl. 39 - 44)

$42.99

$

In Stock, Qty 18

0

39

MTD 7039

SCREW 8-32X.437

$4.49

$

In Stock, Qty 10

0

40

MTD 753-04284

REEL:OTR W/RET

Note: (Incl. 41)

$26.99

$

In Stock, Qty 20+

0

41

MTD 791-610660

RETAINER .625 OD 2

$4.99

$

In Stock, Qty 20+

0

42

MTD 791-610317B

SPRING-SPOOL

$10.99

$

In Stock, Qty 20+

0

43

MTD 753-1155

REEL-INNER SPOOL

$21.99

$

In Stock, Qty 20+

0

44

MTD 791-153066B

BUMP HEAD KNOB ASSEMBLY

$13.99

$

In Stock, Qty 20+

0

MTD 953-1156

REEL SPOOL ASSEMBLY

$31.99

$

In Stock, Qty 8

0
