H 346 SL (960730012-00) - Husqvarna Grass Catcher (2009-02) BAGGER Parts Diagram

Grass Catcher

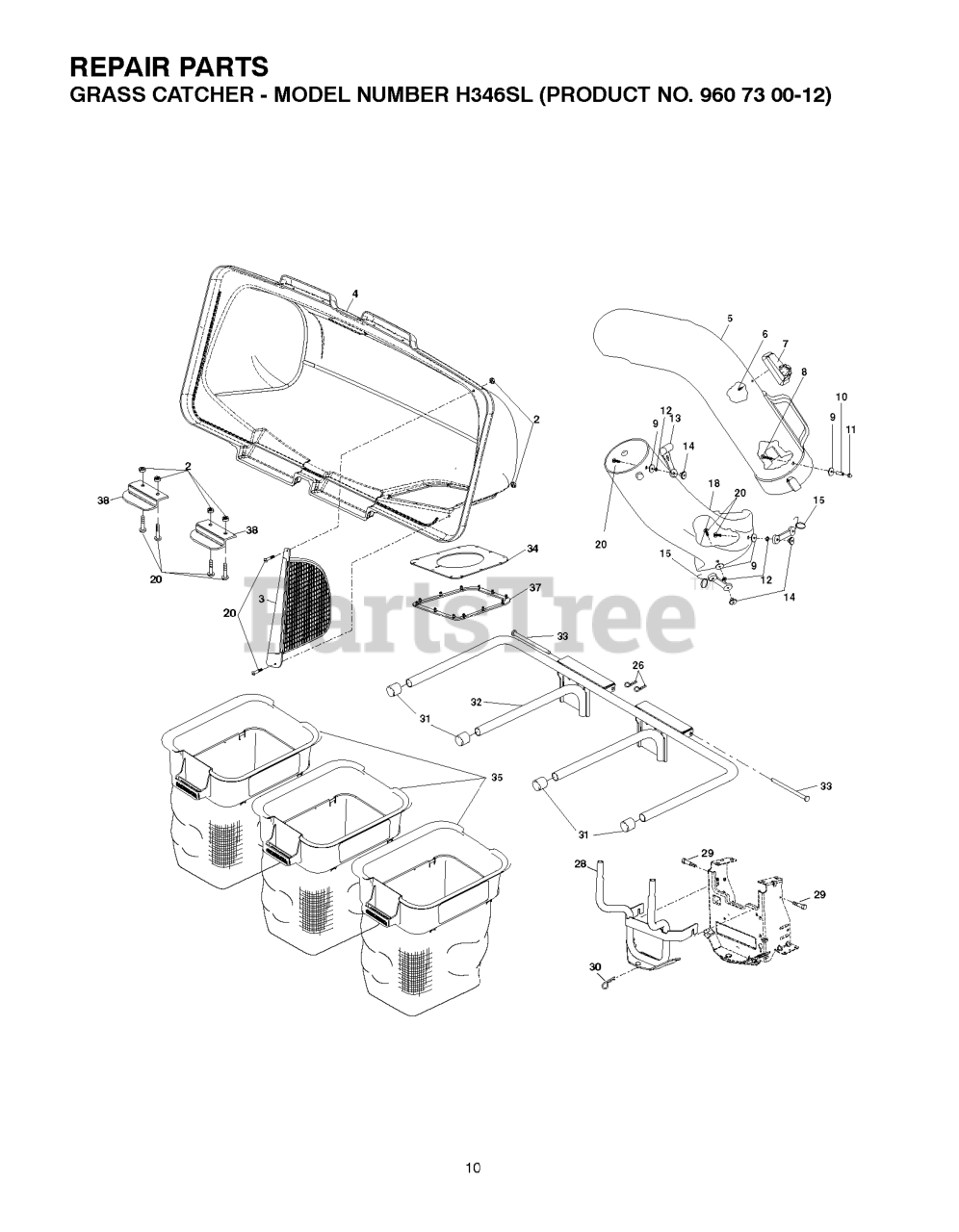

BAGGER Parts Diagram

  • Title

2

Husqvarna 532069180

LOCKNUT

$3.49

$

In Stock, only 1 left!

0

3

Husqvarna 532192709

SCREEN.COVER.BAGGER

$26.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532193010

COVER ASSEMBLY CRAFTSMAN

$

$

Not available

5

Husqvarna 532411397

CHUTE.UPPER.46"

$102.99

$

Usually ships in 3-10 days

0

6

Husqvarna 818021008

SCREW

$5.99

$

In Stock, Qty 8

0

7

Husqvarna 532130933

INDICATOR ASM BAG

$7.99

$

In Stock, only 3 left!

0

8

Husqvarna 532087175

SCREW
(Superseded to 874981024)

$5.99

$

In Stock, only 2 left!

0

9

Husqvarna 819061216

WASHER

$3.49

$

In Stock, Qty 10

0

10

Husqvarna 532007206

SPACER LT

$5.99

$

In Stock, Qty 9

0

11

Husqvarna 532060867

NUT
(Superseded to 539108086)

$3.99

$

In Stock, Qty 17

0

12

Husqvarna 810071000

LOCKWASHER (3 2)

$4.99

$

In Stock, Qty 12

0

13

Husqvarna 532109808

LATCH.HOOD.

$4.99

$

In Stock, Qty 15

0

14

Husqvarna 532125004

WELDNUT
(Superseded to 596987401)

$3.49

$

In Stock, Qty 13

0

15

532160793

LATCH ASSY

$

$

Not available

18

Husqvarna 532405455

CHUTE.LOWER.LT.46"

$113.99

$

In Stock, only 2 left!

0

20

Husqvarna 871081010

SCREW
(Superseded to 596039001)

$3.49

$

In Stock, only 3 left!

0

21

Husqvarna 532132796

SPRING COVER LH

$6.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532133235

SPACER.COVER.BAGGER

$6.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532132983

SPRING COVER RH

$6.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532180923

POST.SUPPORT.BAGGER.BLACK
(Superseded to 531168201)

$79.99

$

Usually ships in 3-10 days

0

25

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 539976978)

$2.49

$

In Stock, Qty 20+

0

26

Husqvarna 532124670

Retainer Spring

$

$

Not available

27

Husqvarna 872140405

BOLT T

$3.99

$

In Stock, Qty 7

0

28

Husqvarna 532198364

BRACKET.BAGGER.3-BIN.BLACK
(Superseded to 535280001)

$96.99

$

In Stock, only 2 left!

0

29

Husqvarna 532176997

SHOULDER BOLT, SELF-TAP

$6.99

$

In Stock, only 3 left!

0

30

Husqvarna 532165898

SPRING.RETAINER.YELLOW.ZINC

$4.99

$

In Stock, Qty 8

0

31

Husqvarna 532174083

PLUG, TUBING END

$6.99

$

In Stock, only 3 left!

0

32

Husqvarna 532179746

FRAME.ASM.BAGGER.2BIN.QC42B

$113.99

$

In Stock, only 1 left!

0

33

Husqvarna 532192786

BAGGER.HINGE.PIN

$20.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532127534

GASKET.COVER.BAGGER

$20.99

$

In Stock, Qty 6

0

35

Husqvarna 532400226

CONTAINER BAG, SOFT

$79.99

$

In Stock, Qty 9

0

38

Husqvarna 532130895

LATCH CER38

$6.99

$

In Stock, only 2 left!

0

39

Husqvarna 532155042

STRIP.REINFORCE.BAGGER.2BIN.BL

$13.99

$

In Stock, only 2 left!

0
