H 348 F (966529202) - Husqvarna 48" Grass Catcher (2010-02) Repair Parts Parts Diagram

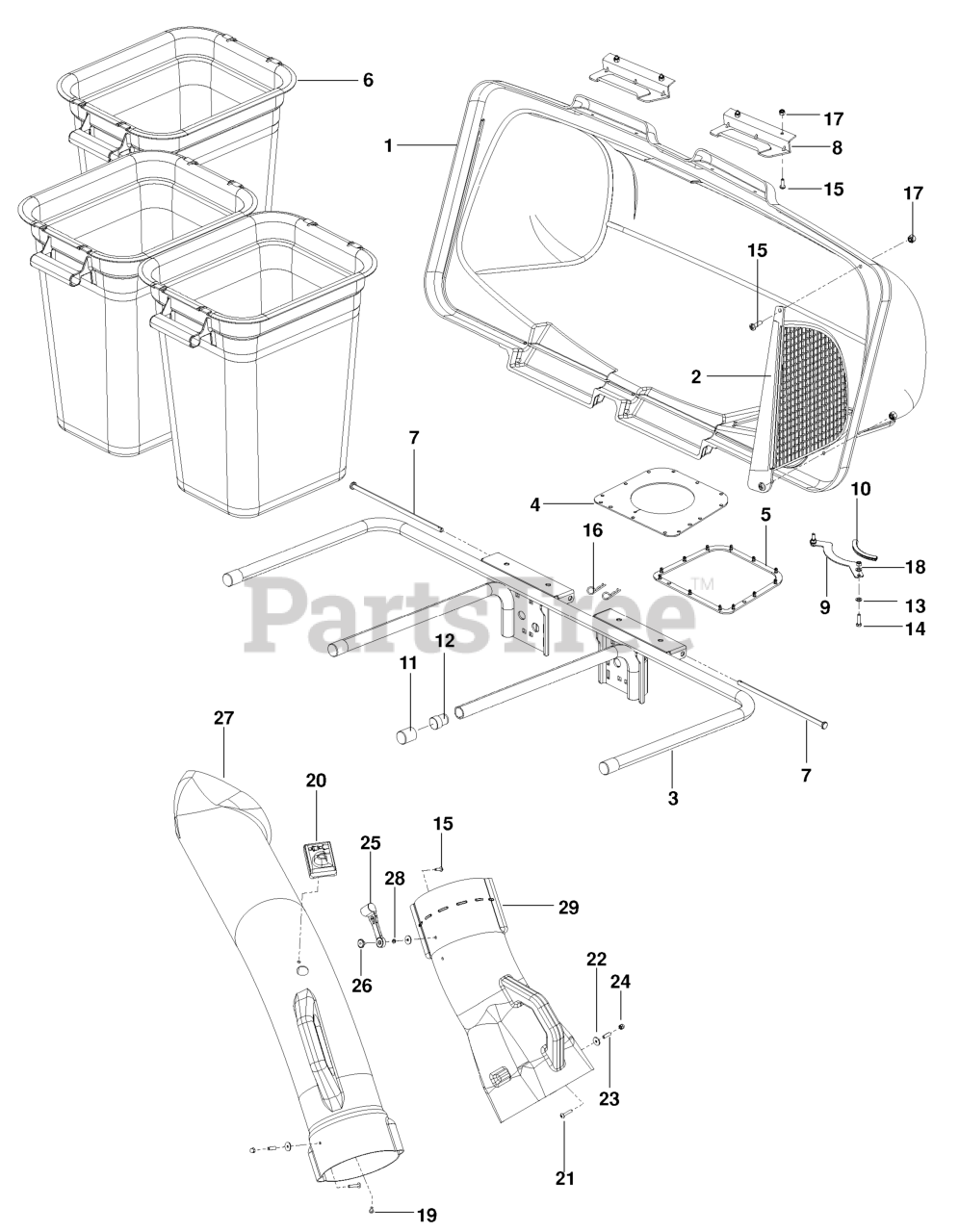

48" Grass Catcher

Repair Parts Parts Diagram

  • Title

1

Husqvarna 532195373

COVER.ASM.3BIN.GENERIC.

$

$

Not available

2

Husqvarna 532192709

SCREEN.COVER.BAGGER

$27.99

$

In Stock, only 2 left!

0

3

Husqvarna 532176990

BAGGER.ASM.FRAME.3BIN.BLACK

$131.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532192550

SEAL.BAGGER.TOP.3-BIN.BLK

$23.99

$

In Stock, Qty 20+

0

5

Husqvarna 532192603

GASKET.COVER.BAGGER

$11.99

$

In Stock, Qty 12

0

6

Husqvarna 532400226

CONTAINER BAG, SOFT

$83.99

$

In Stock, Qty 18

0

7

Husqvarna 532192786

BAGGER.HINGE.PIN

$21.99

$

In Stock, only 2 left!

0

8

Husqvarna 532130895

LATCH CER38

$7.49

$

Usually ships in 3-10 days

0

9

Husqvarna 539110234

SUPPORT.CHUTE.COLLECTION.BLACK

$23.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539112294

RP.FLEX TRIM, BLK-LENGTH 1 FT
(Superseded to 589362602)

$5.99

$

In Stock, only 2 left!

0

11

Husqvarna 539108097

TUBING PLUG
(Superseded to 532174083)

$7.49

$

In Stock, Qty 14

0

12

Husqvarna 522801301

SPACER PLUG, BAGGER

$4.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

14

Husqvarna 539990627

HCS 5/16C X 1 1/4

$4.99

$

In Stock, only 1 left!

0

15

Husqvarna 539976952

SCREW #10-24 X 5/8
(Superseded to 596039001)

$3.99

$

In Stock, Qty 20+

0

16

Husqvarna 539108096

RETAINER SPRING

$5.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539976977

NUT 10-24 NYLOC
(Superseded to 596040801)

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

19

Husqvarna 539108081

SCREW
(Superseded to 818021008)

$5.99

$

In Stock, Qty 6

0

20

Husqvarna 539108082

DUMP BAG INDICATOR
(Superseded to 532140572)

$7.99

$

In Stock, only 2 left!

0

21

Husqvarna 539108083

SCREW #10-24 X 1-1/8 ZD SPEC

$

$

Not available

22

Husqvarna 539108084

WASHER

$3.99

$

In Stock, only 2 left!

0

23

Husqvarna 539108085

BSHG .202X.75 LG SPLIT ZD SPEC
(Superseded to 532007206)

$5.99

$

In Stock, only 2 left!

0

24

Husqvarna 539108086

NUT 10-24 ACORN ZD

$3.99

$

In Stock, Qty 11

0

25

Husqvarna 539108088

HOOD LATCH
(Superseded to 532109808)

$4.99

$

In Stock, Qty 20+

0

26

Husqvarna 539108089

NUT 10-24 WELD PLATED
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

27

Husqvarna 522739201

CHUTE, UPPER

$167.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539109552

WASHER - 3/16 LOCK ZD
(Superseded to 596987301)

$3.99

$

In Stock, Qty 9

0

29

Husqvarna 539130294

CHUTE, MIDDLE

$83.99

$

Usually ships in 3-10 days

0
