H 924RX (1695513) - Snapper 24" Snow Thrower, 9hp (2009) Discharge Chute Group Parts Diagram

24" Snow Thrower, 9hp

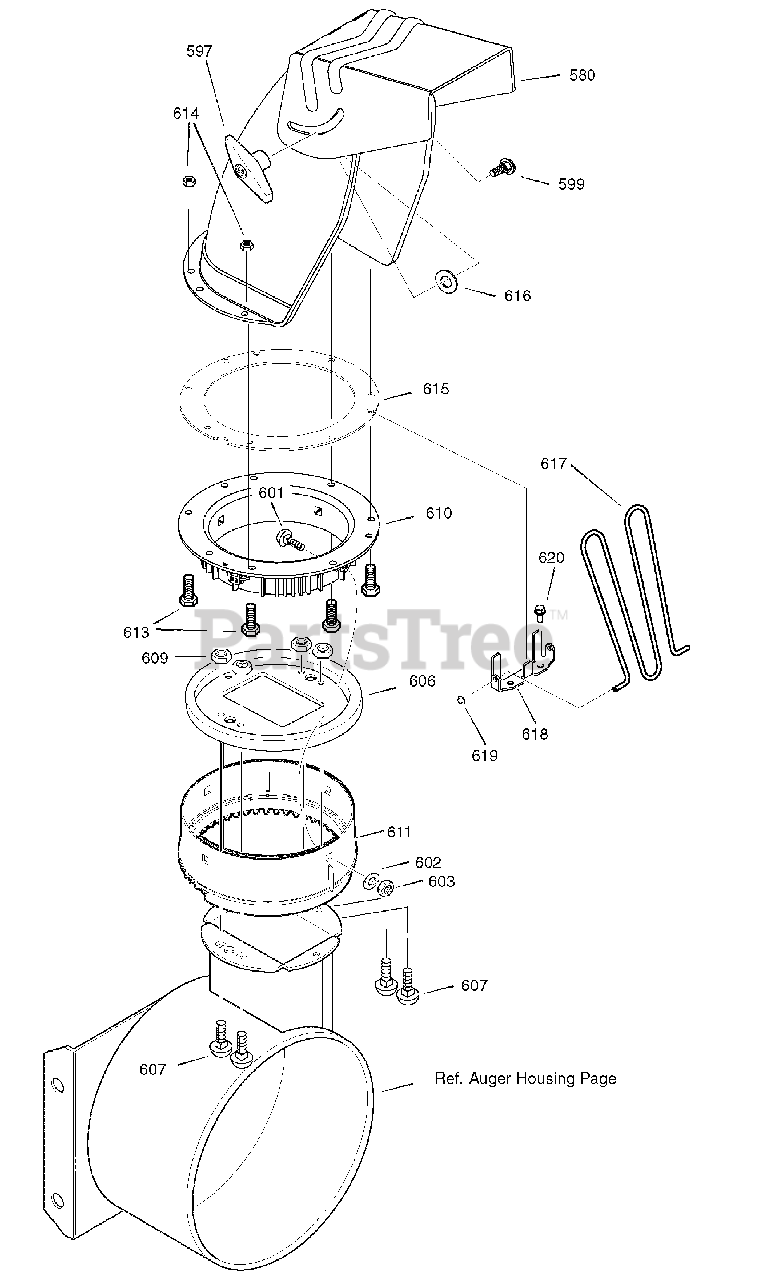

Discharge Chute Group Parts Diagram

  • Title

580

Snapper 1736313

CHUTE ASSEMBLY
(Superseded to 1736313YP)

$113.99

$

Usually ships in 2-12 days

0

597

Snapper 722136

WING KNOB
(Superseded to 1501260MA)

$8.49

$

In Stock, only 3 left!

0

599

Snapper 1931333

BOLT, 5/16-18 X .75
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

601

Snapper 722899

Bolt, 5/16 X 1.5
(Superseded to 704217)

$9.49

$

Usually ships in 2-12 days

0

602

Snapper 725331

WASHER, Flat
(Superseded to 703350)

$4.49

$

In Stock, only 4 left!

0

603

Snapper 725321

NUT, Hex, Nylock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

606

Snapper 722340

CHUTE Collar
(Superseded to 1501932YZMA)

$30.99

$

In Stock, only 1 left!

0

607

Snapper 720386

SCREW, 1/4-20 X 0.75

$

$

Not available

609

Snapper 722400

NUT, 1/4-20 Hex Nylock
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

610

Snapper 1741917

RING, Retainer, Inner
(Superseded to 1741917YP)

$23.99

$

In Stock, only 1 left!

0

611

Snapper 722138

RING, Retainer, Outer
(Superseded to 1501282MA)

$26.99

$

In Stock, only 1 left!

0

613

Snapper 1935450

CAPSCREW, Hex-Flange, 1/4-20 x .75
(Superseded to 1935450SM)

$4.49

$

In Stock, only 1 left!

0

614

Snapper 5025391

NUT, Hex, Nylock Flange, 1/4-20
(Superseded to 5025391FS)

$4.49

$

In Stock, only 3 left!

0

615

Snapper 1736435A

RING, Chute
(Superseded to 1736435AYP)

$13.99

$

In Stock, only 1 left!

0

616

Snapper 2860210

WASHER, Nylon
(Superseded to 2860210SM)

$4.99

$

In Stock, only 2 left!

0

617

Snapper 1733475

GUARD, Chute
(Superseded to 1733475SM)

$22.99

$

Usually ships in 2-12 days

0

618

Snapper 1733967A

BRACKET, Chute Guard
(Superseded to 1733967AYP)

$16.99

$

Usually ships in 2-12 days

0

619

Snapper 1960140

NUT, Push
(Superseded to 1960140SM)

$3.49

$

Usually ships in 2-12 days

0

620

Snapper 1925003

SCREW, Hex-Washer, Taptite, 1/4-20 X 1/2"
(Superseded to 704130)

$3.99

$

In Stock, Qty 13

0
