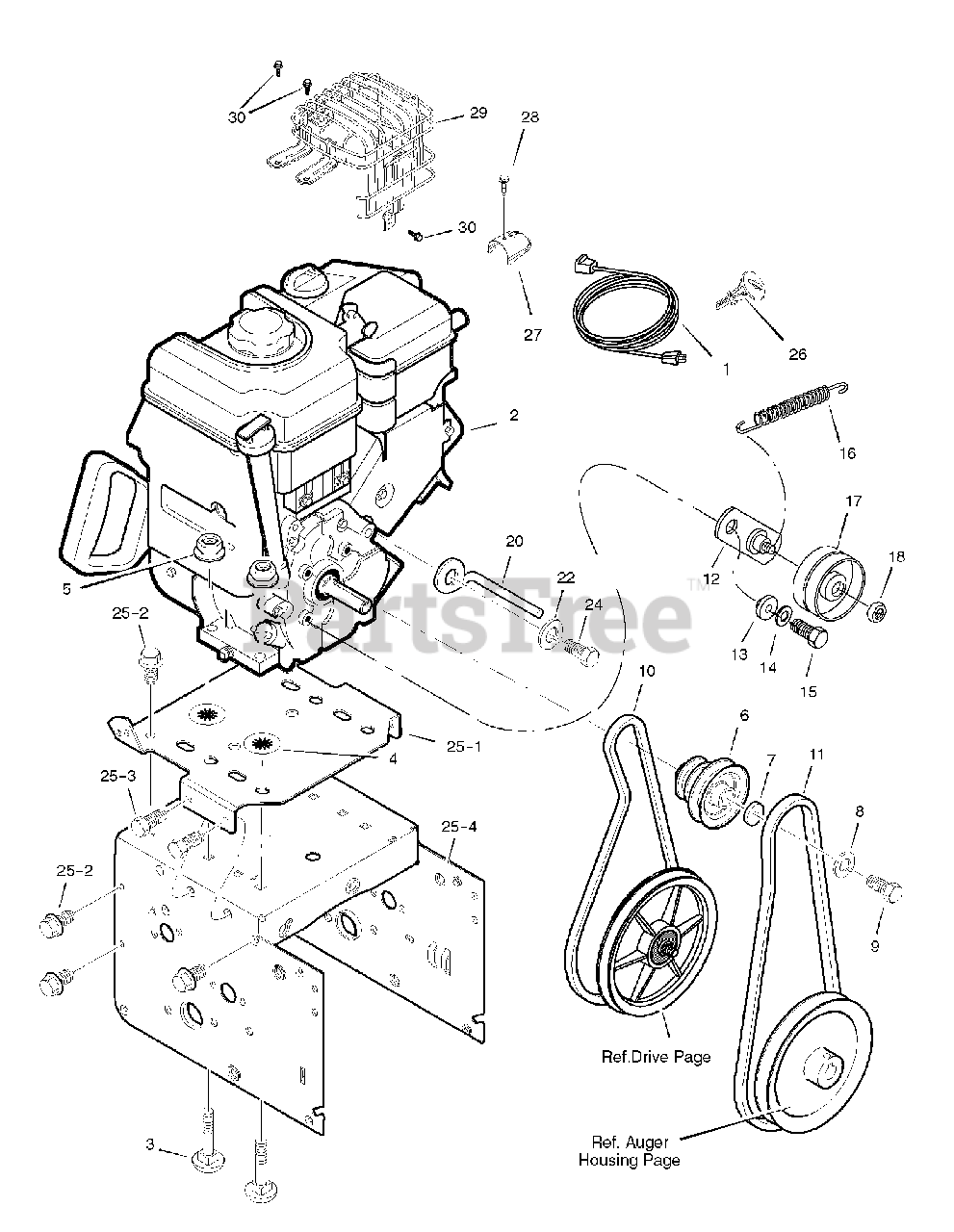

H 924RX (1695513) - Snapper 24" Snow Thrower, 9hp (2009) Engine Group Parts Diagram

24" Snow Thrower, 9hp

Engine Group Parts Diagram

  • Title

1

Snapper 724865

CORD, Starter
(Superseded to 6219MA)

$42.99

$

In Stock, only 1 left!

0

2

Snapper 12D116-0124-E8

* ENGINE, B&S Mod. 12D116-0124-E8

$

$

Not available

3

Snapper 720064

BOLT, CARRIAGE 5/16-18
(Superseded to 704210)

$4.99

$

In Stock, only 3 left!

0

4

Snapper 720376

RETAINER, PUSH
(Superseded to 028X76MA)

$4.49

$

Usually ships in 2-12 days

0

5

Snapper 1960686

NUT, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

6

Snapper 1736102

PULLEY, ENGINE
(Superseded to 1736102YP)

$45.99

$

Usually ships in 2-12 days

0

7

Snapper 722593

WASHER
(Superseded to 17X146MA)

$5.49

$

Usually ships in 2-12 days

0

8

Snapper 725326

WASHER, .38ID
(Superseded to 703116)

$3.49

$

In Stock, Qty 6

0

9

Snapper 725996

SCREW, 3/8-24 x 1.00
(Superseded to 703301)

$4.49

$

In Stock, only 4 left!

0

10

Snapper 1733324

BELT, V 3L
(Superseded to 1733324SM)

$19.99

$

In Stock, only 3 left!

0

11

Snapper 724801

BELT, V 4L
(Superseded to 585416MA)

$23.99

$

In Stock, only 2 left!

0

12

Snapper 722090

BRACKET ASSEMBLY, IDLER
(Superseded to 1687797YP)

$8.99

$

In Stock, only 2 left!

0

13

Snapper 722072

BUSHING, IDLER BRACKET
(Superseded to 1501065MA)

$5.99

$

In Stock, only 2 left!

0

14

Snapper 725326

WASHER, SPLIT
(Superseded to 703116)

$3.49

$

In Stock, Qty 6

0

15

Snapper 725277

SCREW, 5/16-24 X 0.75
(Superseded to 710097MA)

$4.49

$

Usually ships in 2-12 days

0

16

Snapper 724418

SPRING, IDLER TRACTION DRIVE
(Superseded to 53704MA)

$8.99

$

In Stock, only 2 left!

0

17

Snapper 722378

PULLEY, IDLER
(Superseded to 1502120MA)

$23.99

$

In Stock, only 2 left!

0

18

Snapper 724840

NUT, JAM 3/8-16
(Superseded to 703996)

$5.49

$

In Stock, Qty 8

0

20

Snapper 722119

GUIDE, BELT
(Superseded to 1739070YP)

$8.49

$

In Stock, only 2 left!

0

22

Snapper 725326

WASHER .31X.58X.08
(Superseded to 703116)

$3.49

$

In Stock, Qty 6

0

24

Snapper 725277

SCREW, 5/16-24 x 0.75
(Superseded to 710097MA)

$4.49

$

Usually ships in 2-12 days

0

25

FRAME, MOTORBOX (5-11HP)

$

$

Not available

25-1

Snapper 1740574D

PLATE, ENGINE MOUNT
(Superseded to 1740574AYP)

$26.99

$

Usually ships in 2-12 days

0

25-2

Snapper 723210

SCREW, TAP 1/4-20 X .63
(Superseded to 310169MA)

$4.49

$

In Stock, Qty 11

0

25-3

Snapper 722838

SCREW, TAP 5/16-18 X .50
(Superseded to 25X020MA)

$5.49

$

In Stock, Qty 6

0

25-4

Snapper 1735753D

FRAME, MOTOR BOX
(Superseded to 722061DYP)

$64.99

$

Usually ships in 2-12 days

0

26

Snapper 794696

KEY, BRIGGS ENGINE

$8.49

$

In Stock, only 2 left!

0

27

Snapper 794213

DEFLECTOR, Muffler

$

$

Not available

28

Snapper 699854

SCREW,

$4.49

$

In Stock, Qty 17

0

29

Snapper 1734732

HEAT SHIELD, Muffler
(Superseded to 1734732SM)

$22.99

$

Usually ships in 2-12 days

0

30

Snapper 1736103

SCREW, Hex-Washer
(Superseded to 1736103SM)

$4.99

$

Usually ships in 2-12 days

0
