H 924RX (1696008) - Snapper 24" Snow Thrower, 9hp Auger Drive Group Parts Diagram

24" Snow Thrower, 9hp

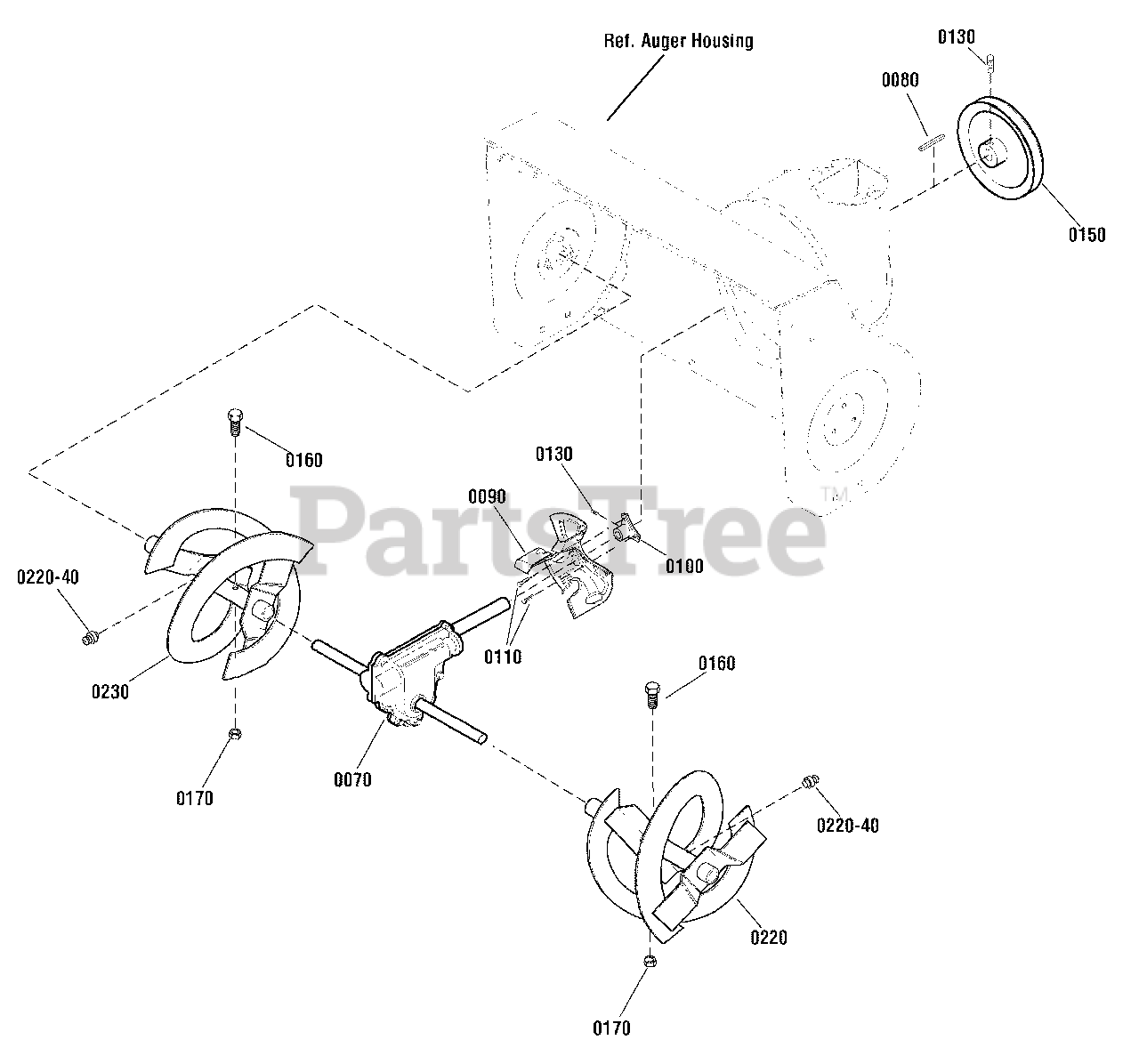

Auger Drive Group Parts Diagram

  • Title

0070

Snapper 1752178

GEAR CASE ASSEMBLY
(Superseded to 1752178YP)

$292.99

$

Usually ships in 2-12 days

0

0080

Snapper 722726

KEY, Square, 3/16 x 3/4
(Superseded to 2001022MA)

$4.49

$

In Stock, Qty 11

0

0090

Snapper 1739094A

IMPELLER
(Superseded to 1687600YP)

$86.99

$

In Stock, only 1 left!

0

0100

Snapper 1739073

HUB, Impeller
(Superseded to 1739073YP)

$23.99

$

In Stock, only 1 left!

0

0110

Snapper 80005639

SCREW, Hex Washer Head, Taptite, 5/16-18 x 1/2

$

$

Not available

0130

Snapper 7090848

SET SCREW, Socket Head, 5/16-18 x 1/2
(Superseded to 7090848SM)

$10.99

$

In Stock, only 1 left!

0

0150

Snapper 722128

PULLEY
(Superseded to 1501211MA)

$71.99

$

In Stock, only 1 left!

0

0160

Snapper 726061

CAPSCREW, Hex Head, 1/4-20 x 1-3/4, G2
(Superseded to 703057)

$5.99

$

In Stock, Qty 20+

0

0170

Snapper 725429

NUT, Center Lock, 1/4-20
(Superseded to 1501216MA)

$4.99

$

In Stock, Qty 20+

0

0220

Snapper 1739261A

AUGER, 24", LH
(Superseded to 1739261AYP)

$101.99

$

Usually ships in 2-12 days

0

0230

Snapper 1739262A

AUGER, 24", RH
(Superseded to 1739262AYP)

$100.99

$

Usually ships in 2-12 days

0

0220-40

Snapper 721620

FITTING, Grease
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

--

Snapper 722130

KIT, Shear Bolt
(Superseded to 1501216MA)

$4.99

$

In Stock, Qty 20+

0

--

Snapper 722130

KIT, Shear Bolt
(Superseded to 1501216MA)

Note: (Includes Ref. Nos. 0160 & 0170)

$4.99

$

In Stock, Qty 20+

0
