H 924RX (1696008) - Snapper 24" Snow Thrower, 9hp Gear Case Assembly Parts Diagram

24" Snow Thrower, 9hp

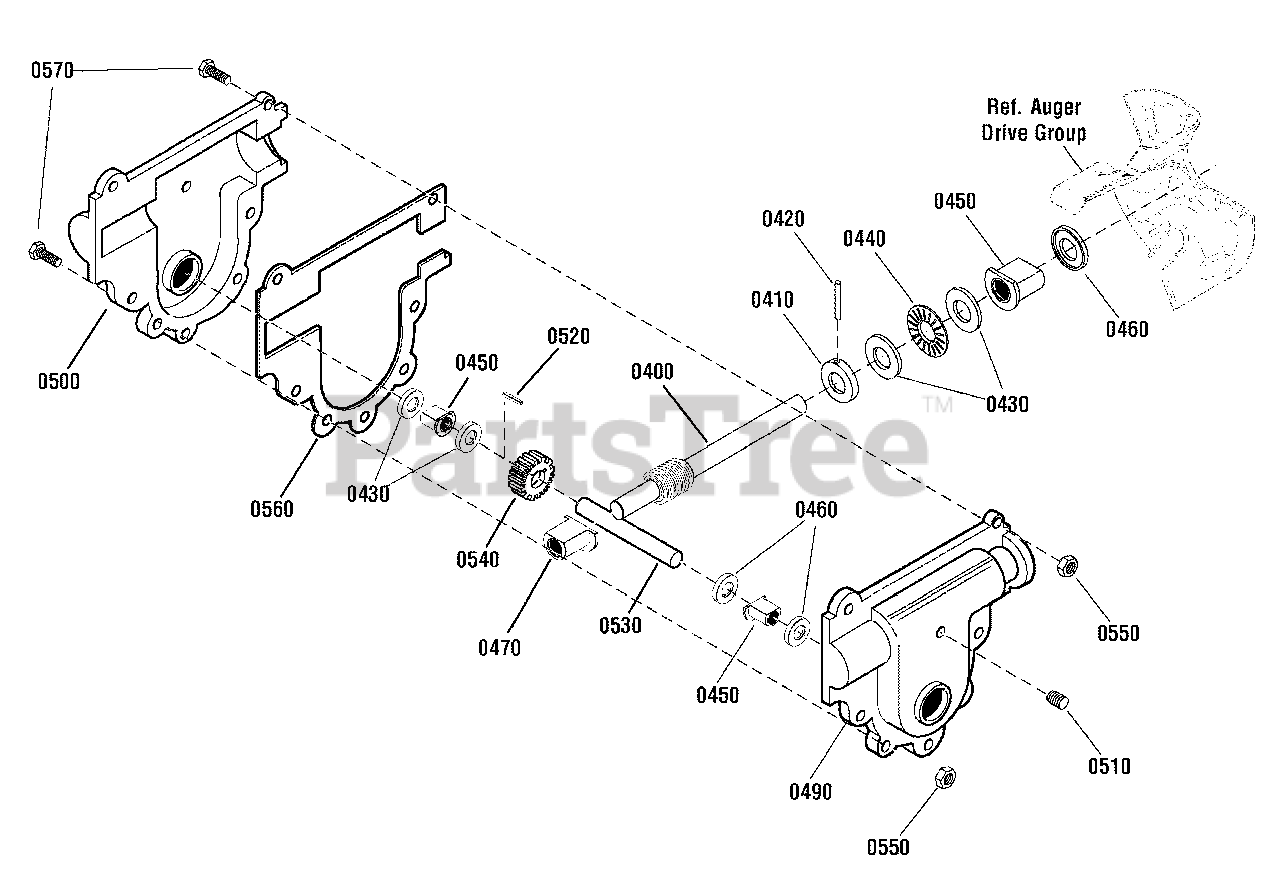

Gear Case Assembly Parts Diagram

  • Title

0400

Snapper 1751673

SHAFT, Impeller
(Superseded to 1751673YP)

$139.99

$

Usually ships in 2-12 days

0

0410

Snapper 724639

COLLAR, Thrust, 3/4 x 1-1/4
(Superseded to 580295MA)

$22.99

$

Usually ships in 2-12 days

0

0420

Snapper 724042

PIN, Spring
(Superseded to 454565MA)

$

$

Not available

0430

Snapper 724079

WASHER, Thrust
(Superseded to 48275MA)

$6.49

$

In Stock, Qty 10

0

0440

Snapper 724352

BEARING, Roll Thrust, 3/4 x 1-1/4 OD
(Superseded to 50684MA)

$6.49

$

In Stock, only 3 left!

0

0450

Snapper 724339

BEARING, Flange, 3/4 ID x 1 OD
(Superseded to 50304MA)

$8.49

$

In Stock, Qty 16

0

0460

Snapper 726077

SEAL, Oil 3/4 x 1-3/16
(Superseded to 9566MA)

$12.99

$

In Stock, Qty 10

0

0470

Snapper 724337

BEARING, Flange, 1/2 ID x 3/4 OD
(Superseded to 50221MA)

$8.49

$

Usually ships in 2-12 days

0

0490

Snapper 721647

CASE, Gear, LH
(Superseded to 10576MA)

$22.99

$

In Stock, only 1 left!

0

0500

Snapper 721649

CASE, Gear, RH
(Superseded to 10577MA)

$22.99

$

Usually ships in 2-12 days

0

0510

Snapper 726003

SCREW, 3/8-16 x 1/2
(Superseded to 333449MA)

$262.99

$

In Stock, only 1 left!

0

0520

Snapper 723995

KEY, Woodruff
(Superseded to 703891)

$4.99

$

In Stock, Qty 20+

0

0530

Snapper 727601

SHAFT, Output
(Superseded to 1501189MA)

$55.99

$

In Stock, only 1 left!

0

0540

Snapper 1752499

GEAR, Worm
(Superseded to 1752499YP)

$58.99

$

Usually ships in 2-12 days

0

0550

Snapper 722398

NUT, Flange Lock, 1/4-20
(Superseded to 7001278MA)

$4.49

$

In Stock, only 1 left!

0

0560

Snapper 724373

GASKET
(Superseded to 51279MA)

$12.99

$

In Stock, only 2 left!

0

0570

Snapper 727590

CAPSCREW, 1/4-20 X 3/4, G5
(Superseded to 710025MA)

$4.49

$

Usually ships in 2-12 days

0
