H HT 25 - Electrolux/AYP Hedge Trimmer (2008-06) Starter Parts Diagram

Hedge Trimmer

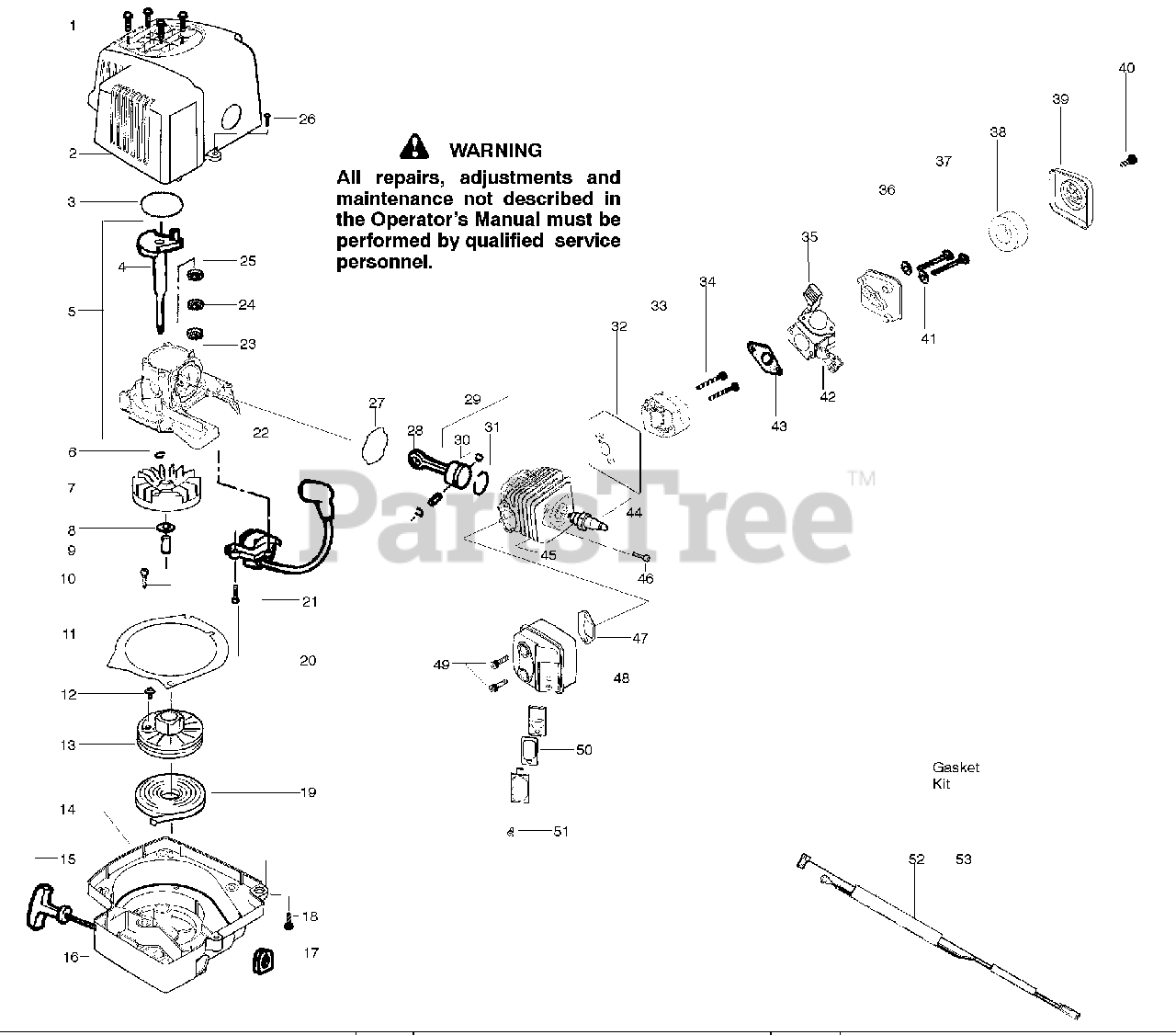

Starter Parts Diagram

  • Title

1

Electrolux/AYP 530016386

Screw

$10.99

$

In Stock, Qty 9

0

2

Electrolux/AYP 530058799

Assy-Shroud/H'shield

$

$

Not available

3

Electrolux/AYP 530071486

O-Ring-C'case (kit)

$9.99

$

In Stock, only 1 left!

0

4

Electrolux/AYP 530012571

Assy-Crankshaft
(Superseded to 545145801)

$24.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 530071681

Assy-C/case-C/shaft

Note: (Incl. #4,6,22)

$

$

Not available

6

Electrolux/AYP 530015941

Ring-Retainer-C'shaft

$4.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 530071487

Assy-Flywheel
(Superseded to 545221701)

$13.99

$

In Stock, only 1 left!

0

8

Electrolux/AYP 530015828

Washer-Flat

$4.99

$

In Stock, only 1 left!

0

9

Electrolux/AYP 530055729

Spacer-Flywheel

$9.22

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 530015496

Screw

$3.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 530055681

Plate-Baffle

$

$

Not available

12

Electrolux/AYP 530016392

Screw

$4.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 530069353

Kit-Starter Pulley

Note: (Incl.# 12)

$

$

Not available

14

Electrolux/AYP 530058801

Assy-Fan Housing

$

$

Not available

15

Electrolux/AYP 530027569

Handle-Starter

$6.49

$

In Stock, only 2 left!

0

16

Electrolux/AYP 530069232

Kit-Rope

$7.49

$

In Stock, Qty 20+

0

17

Electrolux/AYP 530019182

Grommet-Ignition Module

$3.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 530016386

Screw-(f/hsg to shrd)

$10.99

$

In Stock, Qty 9

0

19

Electrolux/AYP 530042085

Spring-Starter
(Superseded to 545008010)

$7.49

$

In Stock, Qty 20+

0

20

Electrolux/AYP 530016357

Screw

$6.49

$

In Stock, Qty 5

0

21

Electrolux/AYP 530054137

Ignition Module

$

$

Not available

22

Electrolux/AYP 530012510

Assy-Crankcase

Note: (Incl. 23-25)

$

$

Not available

23

Electrolux/AYP 530055728

Bearing-Outer

$9.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 530019264

Seal-Crankcase

$7.49

$

In Stock, only 1 left!

0

25

Electrolux/AYP 530032125

Bearing-Inner
(Superseded to 738210101)

$18.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 530015934

Screw

$4.99

$

In Stock, only 1 left!

0

27

Electrolux/AYP 530071486

Seal-Cylinder (kit)

$9.99

$

In Stock, only 1 left!

0

28

Electrolux/AYP 530069945

Assy-Connecting Rod
(Superseded to 530049817)

$9.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 530071476

Kit-Piston

Note: (Incl. 30 & 31)

$40.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 530015162

Retainer-Piston Pin

$6.49

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 530012472

Ring-Piston
(Superseded to 545154009)

$3.99

$

In Stock, Qty 12

0

32

Electrolux/AYP 530071486

Gasket-Carb. Adapt.(kit)

$9.99

$

In Stock, only 1 left!

0

33

Electrolux/AYP 530057634

Adapter-Carburetor

$12.99

$

In Stock, only 1 left!

0

34

Electrolux/AYP 530016309

Screw

$4.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 530071718

Kit-Choke Lever

$12.99

$

In Stock, only 4 left!

0

36

Electrolux/AYP 530055680

Air Box

$4.99

$

In Stock, only 2 left!

0

37

Electrolux/AYP 530016429

Screw

$6.49

$

In Stock, Qty 8

0

38

Electrolux/AYP 530047932

Air Filter Foam

$4.99

$

In Stock, Qty 12

0

39

Electrolux/AYP 530055679

Air Filter Cover

$

$

Not available

40

Electrolux/AYP 530015957

Screw

$4.99

$

In Stock, Qty 7

0

41

Electrolux/AYP 530015158

Washer
(Superseded to 530015123)

$4.99

$

In Stock, only 4 left!

0

42

Electrolux/AYP 530071633

Kit-Carburetor Ass'y. (C1U-W13A)

$53.99

$

In Stock, only 3 left!

0

43

Electrolux/AYP 530071486

Gasket-Carburetor(kit)

$9.99

$

In Stock, only 1 left!

0

44

Electrolux/AYP 952030249

Spark Plug(RCJ-6Y)

$4.99

$

In Stock, Qty 20+

0

45

Electrolux/AYP 530012553

Cylinder

$

$

Not available

46

Electrolux/AYP 530015953

Screw

$6.49

$

In Stock, Qty 8

0

47

Electrolux/AYP 530071486

Gasket-Muffler (kit)

$9.99

$

In Stock, only 1 left!

0

48

Electrolux/AYP 530071682

Kit-Muffler

Note: (Incl. # 47,49.50,51)

$

$

Not available

49

Electrolux/AYP 530016338

Bolt-Muffler

$3.99

$

In Stock, only 3 left!

0

50

Electrolux/AYP 530071544

Kit-Spark Arrestor

$

$

Not available

51

Electrolux/AYP 530015241

Screw

$3.99

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 530057728

Assy-Leadwire

$

$

Not available

53

Electrolux/AYP 530071486

Kit-Gasket

Note: (Incl. #3,27,32,43,47)

$9.99

$

In Stock, only 1 left!

0

53

Electrolux/AYP 545186733

Operator Manual

Note: Not Shown

$

$

Not available

53

Electrolux/AYP 530057594

Decal-Start Inst.

Note: Not Shown

$

$

Not available
