H1011 R SAC (MZAW) - Honda Riding Mower, Made in USA (SN: MZAW-6000001 - MZAW-6100000) MULCHING KIT Parts Diagram

Riding Mower, Made in USA

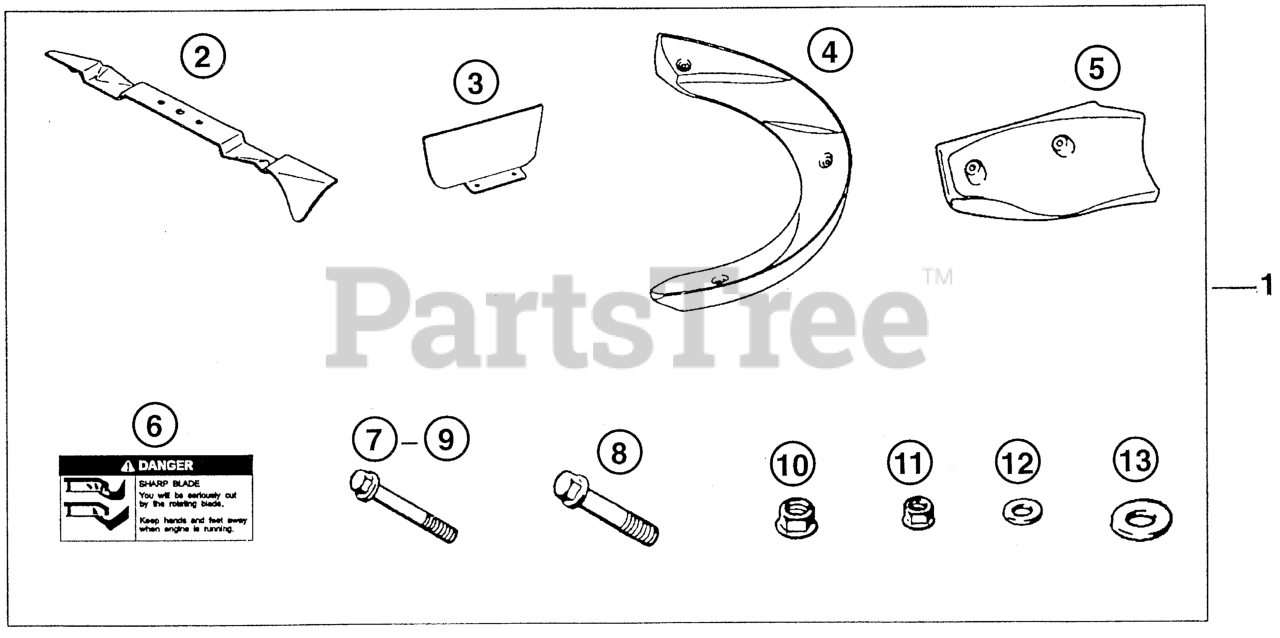

MULCHING KIT Parts Diagram

  • Title

1

Honda 06764-763-R00

MULCHING KIT

$

$

Currently unavailable

2

Honda 72511-763-R00

BLADE, MULCHING (NOT AVAILABLE)

$

$

Not available

3

Honda 76264-763-R00

PLATE, COVER (NOT AVAILABLE)

$

$

Not available

4

Honda 76267-763-R00

GUIDE A, SWIRL (NOT AVAILABLE)

$

$

Not available

5

Honda 76268-763-R00

GUIDE B, SWIRL (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 87122-763-A00

LABEL A, WARNING (ENGLISH)

$19.99

$

Usually ships in 3-6 days

0

7

Honda 90101-763-R00

BOLT, FLANGE (6X40)

$1.99

$

Usually ships in 3-6 days

0

8

Honda 90102-763-R00

BOLT, FLANGE (8X35)

$0.99

$

Usually ships in 3-6 days

0

9

Honda 90103-763-R00

BOLT, FLANGE (6X55)

$6.99

$

Usually ships in 3-6 days

0

10

Honda 90115-659-003

NUT, SELF-LOCK (8MM) (Honda Code 0599480).

$1.49

$

In Stock, Qty 20+

0

11

Honda 90343-ZE6-000

SEE PART DETAILS - PRI; NUT, SELF-LOCK (6MM)

$2.49

$

In Stock, Qty 20+

0

12

Honda 90501-763-R00

WASHER, FLAT (6MM)

$0.99

$

Usually ships in 3-6 days

0

13

Honda 90502-763-R00

WASHER, FLAT (8MM)

$0.99

$

Usually ships in 3-6 days

0
