H2113 HMA (MZBF) - Honda Harmony Lawn Tractor, Made in USA (SN: MZBF-6200001 - MZBF-9999999) ROTARY BLADE (2) Parts Diagram

Harmony Lawn Tractor, Made in USA

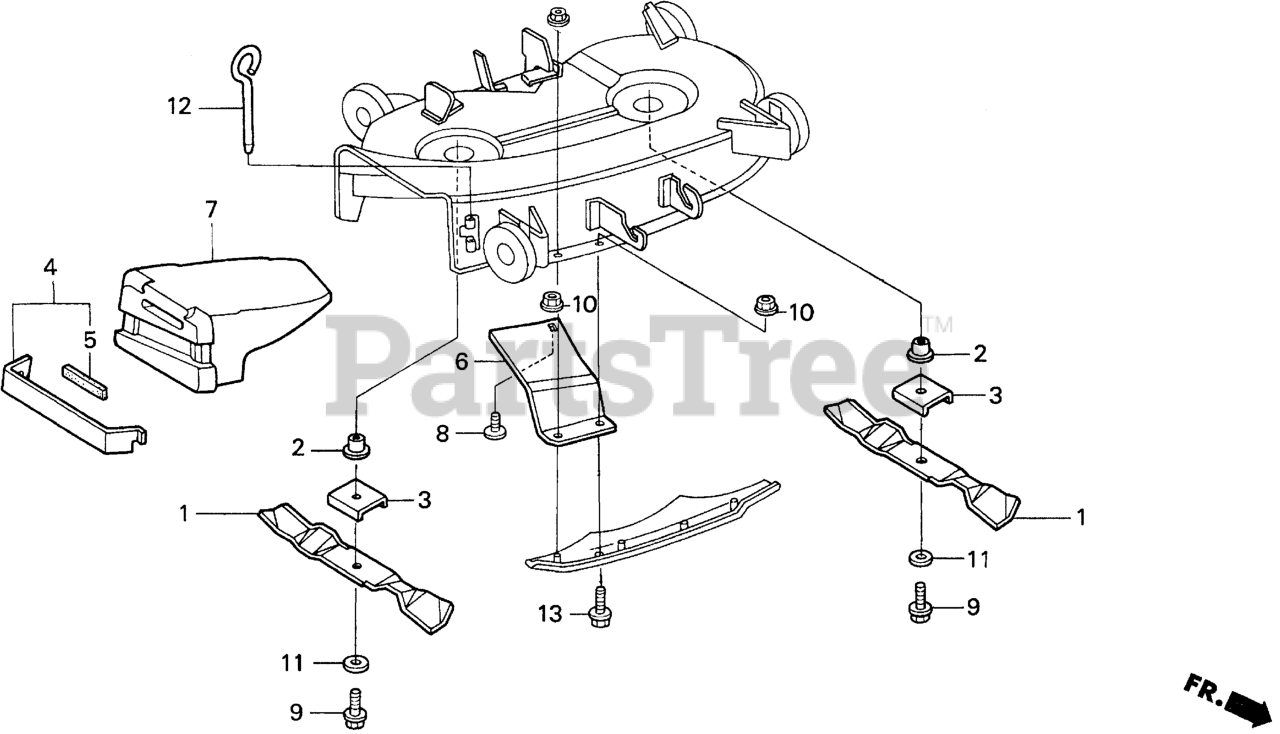

ROTARY BLADE (2) Parts Diagram

  • Title

1

Honda 72511-758-H60

BLADE, ROTARY

$54.99

$

In Stock, only 2 left!

0

2

Honda 72611-771-L00

SEE PART DETAILS - SUP; HOLDER, BLADE
(Superseded to 72611-758-L00)

$

$

Not available

3

Honda 72625-758-L00

HOLDER, BLADE (B)

$

$

Not available

4

Honda 76262-758-H60

COVER, SWIRL GUIDE

$

$

Not available

5

Honda 76264-758-H60

SEAL, SWIRL GUIDE COVER

$

$

Currently unavailable

6

Honda 76267-758-H60

GUIDE A, SWIRL

$92.99

$

Usually ships in 3-6 days

0

7

Honda 76268-758-H60

GUIDE B, SWIRL

$

$

Not available

8

Honda 90101-963-000

BOLT, SPECIAL (9X15)

$3.99

$

Usually ships in 3-6 days

0

9

Honda 90105-751-701

SEE PART DETAILS - PRI; BOLT, BLADE HOLDER (10X28)

$4.49

$

In Stock, Qty 7

0

10

Honda 90309-428-731

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

$4.49

$

In Stock, Qty 5

0

11

Honda 90510-751-701

SEE PART DETAILS - PRI; WASHER, BLADE

$20.99

$

Usually ships in 3-6 days

0

12

Honda 90751-758-H60

PIN, RING

$5.49

$

Usually ships in 3-6 days

0

13

Honda 95701-08022-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X22) Use from Engine SN 1609607.

$2.99

$

In Stock, Qty 10

0
