H3011 H HSA (MZAJ) - Honda Riding Mower, Made in Japan (SN: MZAJ-6000001 - MZAJ-9999999) CUTTER HOUSING Parts Diagram

Riding Mower, Made in Japan

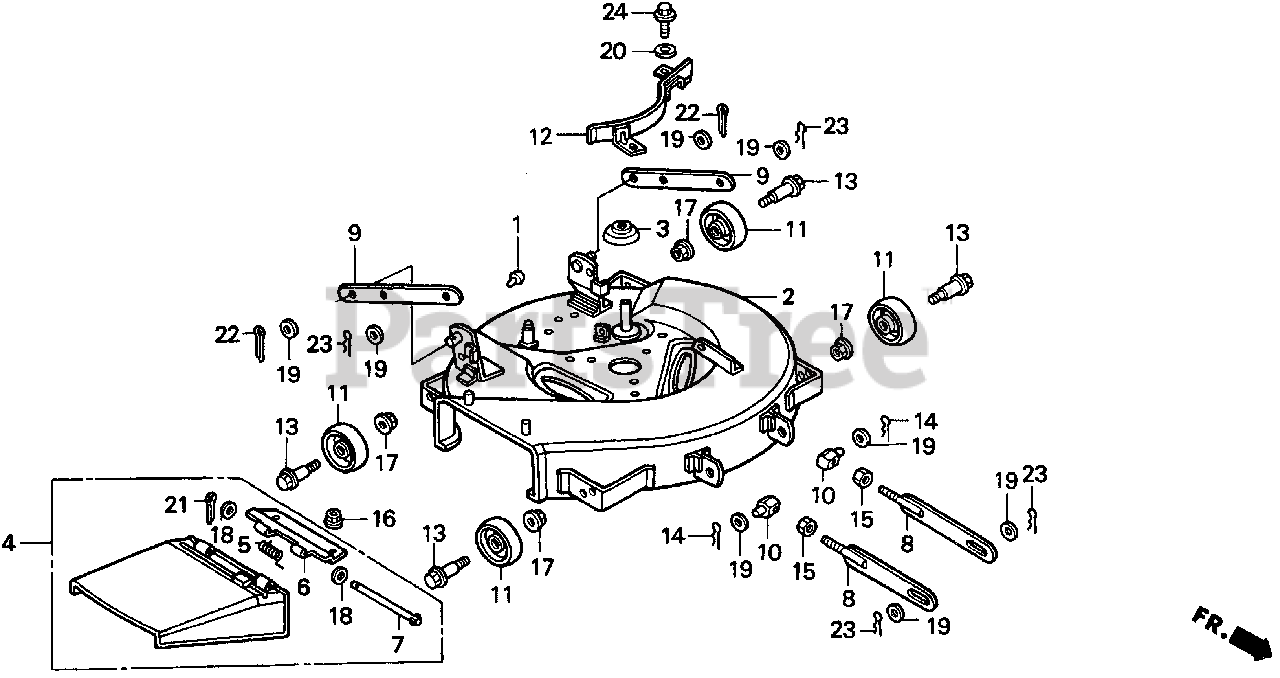

CUTTER HOUSING Parts Diagram

  • Title

1

Honda 72701-751-701

RUBBER, STOPPER

$8.49

$

In Stock, only 1 left!

0

2

Honda 76110-763-D90ZA

HOUSING, CUTTER

$

$

Not available

3

Honda 76127-751-000

CAP, TENSION ARM

$6.49

$

Usually ships in 3-6 days

0

4

Honda 76150-763-A01ZA

SEE PART DETAILS - PRI; ADAPTER, DISCHARGE *NH1* (BLACK)

$111.99

$

Usually ships in 3-6 days

0

5

Honda 76152-763-A01

SPRING, DISCHARGE ADAPTER

$6.49

$

Usually ships in 3-6 days

0

6

Honda 76153-763-A01

SEE PART DETAILS - PRI; HINGE, DISCHARGE ADAPTER

$18.99

$

In Stock, only 1 left!

0

7

Honda 76154-763-A00

PIN, DISCHARGE ADAPTER (NOT AVAILABLE)

$

$

Not available

8

Honda 76171-751-010

SEE PART DETAILS - PRI; LINK, FR. DECK

$79.99

$

Usually ships in 3-6 days

0

9

Honda 76172-763-A01

LINK, RR. DECK

$38.99

$

Usually ships in 3-6 days

0

10

Honda 76185-751-700

PIN, FR. LINK ADJUSTING

$21.99

$

Usually ships in 3-6 days

0

11

Honda 76231-763-A00

ROLLER, ANTI-SCALP

$28.99

$

In Stock, only 2 left!

0

12

Honda 76251-763-A00

COVER, DECK PULLEY

$46.99

$

Usually ships in 3-6 days

0

13

Honda 90105-751-000

BOLT, ANTI-SCALP ROLLER

$16.99

$

Usually ships in 3-6 days

0

14

Honda 90702-750-000

PIN, LOCK (2.3MM)

$4.99

$

Usually ships in 3-6 days

0

15

Honda 94001-12000-0S

SEE PART DETAILS - PRI; NUT, HEX. (12MM)

$2.49

$

In Stock, only 2 left!

0

16

Honda 94050-08080

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0468447).

$1.49

$

In Stock, Qty 20+

0

17

Honda 94050-10080

SEE PART DETAILS - PRI; NUT, FLANGE (10MM) (Honda Code 0623405).

$5.49

$

In Stock, Qty 20+

0

18

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

19

Honda 94102-14800

WASHER, PLAIN (14MM)

$1.99

$

In Stock, only 2 left!

0

20

Honda 94103-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$1.49

$

In Stock, Qty 10

0

21

Honda 94201-20120

PIN, COTTER (2.0X12)

$1.49

$

In Stock, Qty 7

0

22

Honda 94201-40250

PIN, COTTER (4X25)

$1.99

$

In Stock, Qty 9

0

23

Honda 94252-14000

PIN, LOCK (14MM)

$2.99

$

In Stock, only 2 left!

0

24

Honda 95701-06016-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) (Honda Code 2105807).

$2.49

$

In Stock, only 4 left!

0
