H3011 H HSA (MZAJ) - Honda Riding Mower, Made in Japan (SN: MZAJ-6000001 - MZAJ-9999999) CYLINDER Parts Diagram

Riding Mower, Made in Japan

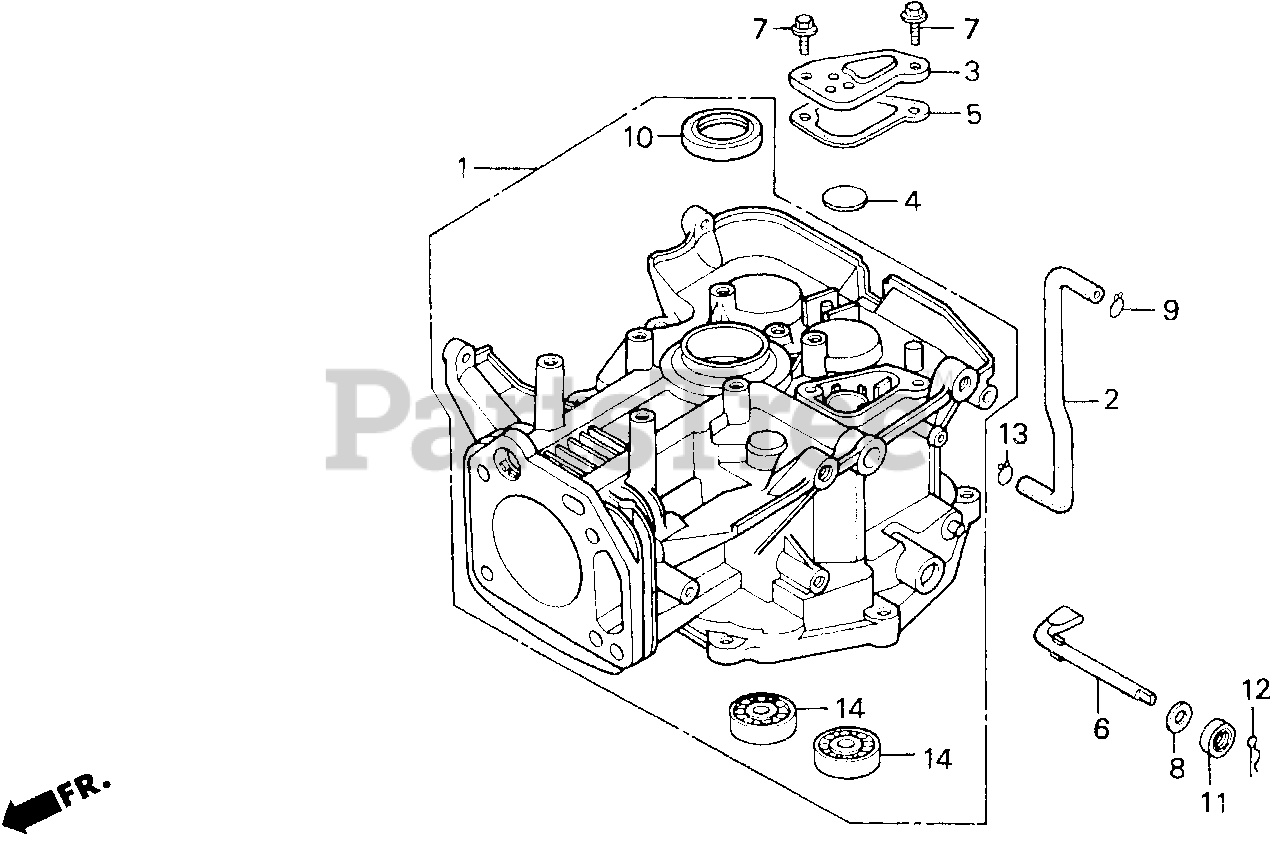

CYLINDER Parts Diagram

  • Title

1

Honda 12000-ZE9-405

CYLINDER ASSY.

Note: Use from Engine SN 2100577.

$907.99

$

Usually ships in 3-6 days

0

2

Honda 12315-ZF5-000

TUBE, BREATHER (Honda Code 3131828).

$8.99

$

Usually ships in 3-6 days

0

3

Honda 12370-ZF5-000

CAP, BREATHER CHAMBER (Honda Code 3131836).

$8.99

$

Usually ships in 3-6 days

0

4

Honda 12372-ZE2-300

VALVE, BREATHER (Honda Code 2061620).

$3.99

$

In Stock, Qty 9

0

5

Honda 12373-ZE8-000

GASKET, BREATHER CAP (Honda Code 2089647).

$3.49

$

Usually ships in 3-6 days

0

6

Honda 16541-ZE8-000

SHAFT, GOVERNOR ARM

Note: Use up to Engine SN 2096049.

$14.99

$

Usually ships in 3-6 days

0

6

Honda 16541-ZE8-010

SEE PART DETAILS - PRI; SHAFT, GOVERNOR ARM (Honda Code 4751293).

Note: Use from Engine SN 2096050.

$14.99

$

Usually ships in 3-6 days

0

7

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$1.99

$

In Stock, Qty 11

0

8

Honda 90406-VM6-000

WASHER, THRUST (8.1MM) (Honda Code 1806934).

$3.99

$

Usually ships in 3-6 days

0

9

Honda 90652-MB1-000

CLIP, TUBE (Honda Code 1768605).

$1.49

$

In Stock, only 1 left!

0

10

Honda 91201-ZE3-004

OIL SEAL (35X52X8) (Honda Code 2108595).

$10.99

$

In Stock, Qty 5

0

11

Honda 91201-ZE9-003

SEE PART DETAILS - PRI; OIL SEAL (8X14X5) (Honda Code 2461713).

$5.49

$

In Stock, only 2 left!

0

11

Honda 91203-952-771

SEE PART DETAILS - SUP; OIL SEAL (8X14X5) (Honda Code 0744326).
(Superseded to 91201-ZE9-003)

$5.49

$

In Stock, only 2 left!

0

12

Honda 94251-08000

SEE PART DETAILS - PRI; PIN, LOCK (8MM) (Honda Code 0115527).

Note: Use up to Engine SN 2096049.

$1.99

$

In Stock, Qty 20+

0

12

Honda 94251-10000

PIN, LOCK (10MM) (Honda Code 0159269).

Note: Use from Engine SN 2096050.

$1.99

$

In Stock, Qty 5

0

13

Honda 95002-70000

CLIP, TUBE (C11) (Honda Code 0053595).

Note: Use up to Engine SN 2062388.

$2.49

$

In Stock, Qty 20+

0

14

Honda 96100-62020-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6202) (Honda Code 0708941).

Note: Use up to Engine SN 2102951.

$12.99

$

In Stock, only 1 left!

0
