H3011 H HSA (MZAJ) - Honda Riding Mower, Made in Japan (SN: MZAJ-6000001 - MZAJ-9999999) PARKING BRAKE LEVER Parts Diagram

Riding Mower, Made in Japan

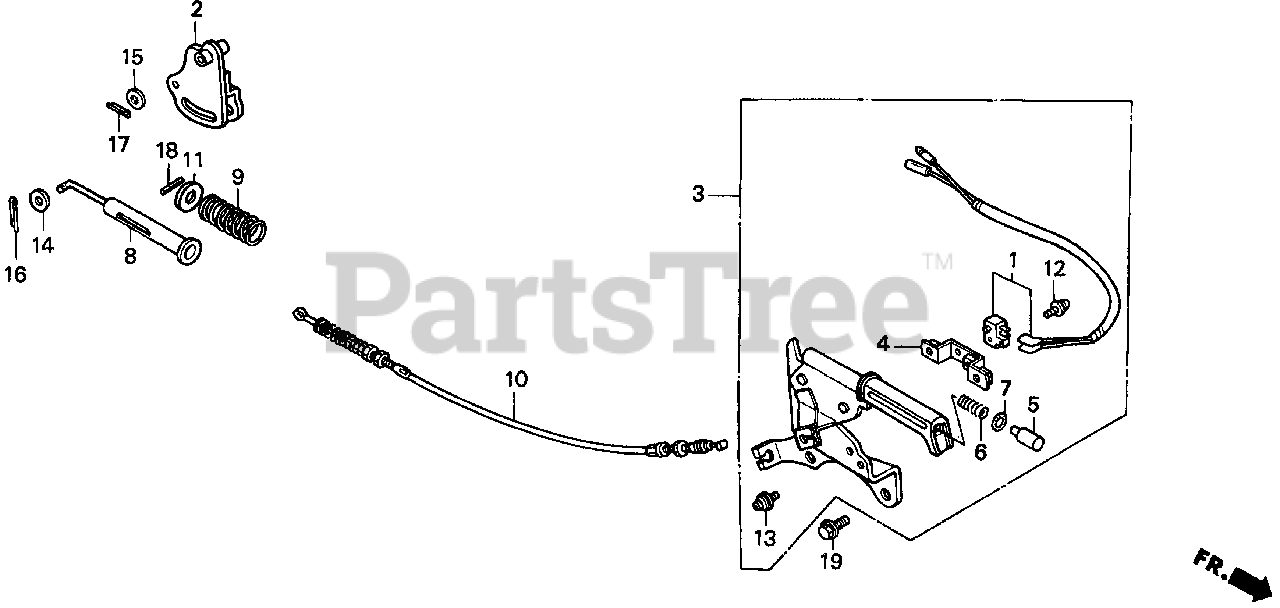

PARKING BRAKE LEVER Parts Diagram

  • Title

1

Honda 35620-763-A02

SWITCH ASSY., PARKING BRAKE (NOT AVAILABLE)

Note: Use up to Frame SN 6001453.

$

$

Not available

1

Honda 35620-763-A03

SWITCH ASSY., PARKING BRAKE

Note: Use from Frame SN 6001454.

$30.99

$

Usually ships in 3-6 days

0

2

Honda 46540-763-A00

ARM, BRAKE

$38.99

$

Usually ships in 3-6 days

0

3

Honda 47100-763-A01

LEVER ASSY., PARKING BRAKE (NOT AVAILABLE)

Note: Use up to Frame SN 6001453.

$

$

Currently unavailable

3

Honda 47100-763-A02ZA

LEVER ASSY., PARKING BRAKE *YR161* (ORANGE)

Note: Use from Frame SN 6001454.

$196.99

$

Usually ships in 3-6 days

0

4

Honda 47132-763-A00

BRACKET, PARKING BRAKE SWITCH

$12.99

$

Usually ships in 3-6 days

0

5

Honda 47142-763-A00ZA

KNOB, PUSH ROD *YR161* (ORANGE)

$8.49

$

Usually ships in 3-6 days

0

6

Honda 47143-679-310

SPRING, PUSH ROD

$4.99

$

Usually ships in 3-6 days

0

7

Honda 47147-567-000

O-RING, PARKING BRAKE LEVER

$5.49

$

Usually ships in 3-6 days

0

8

Honda 47272-763-A00

PIPE, PARKING BRAKE SPRING SETTING

$36.99

$

Usually ships in 3-6 days

0

9

Honda 47273-751-000

SPRING, PARKING BRAKE LOAD SETTING

$11.99

$

Usually ships in 3-6 days

0

10

Honda 47290-763-A00

CABLE, PARKING BRAKE

$44.99

$

Usually ships in 3-6 days

0

11

Honda 90527-751-700

WASHER, BRAKE SPRING SETTING

$6.49

$

Usually ships in 3-6 days

0

12

Honda 93893-04014-08

SCREW-WASHER (4X14)

$1.49

$

Usually ships in 3-6 days

0

13

Honda 93893-05012-08

SEE PART DETAILS - PRI; SCREW-WASHER (5X12)

$1.99

$

Usually ships in 3-6 days

0

14

Honda 94101-05800

WASHER, PLAIN (5MM) (Honda Code 0285791).

$1.49

$

In Stock, only 2 left!

0

15

Honda 94102-10800

WASHER, PLAIN (10MM)

$4.49

$

In Stock, Qty 6

0

16

Honda 94201-20150

PIN, COTTER (2.0X15)

$1.49

$

In Stock, only 2 left!

0

17

Honda 94201-20350

PIN, COTTER (2.0X35)

$1.49

$

Usually ships in 3-6 days

0

18

Honda 94305-60251

PIN, SPRING (6X25)

$2.49

$

Usually ships in 3-6 days

0

19

Honda 95701-08016-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) (Honda Code 2374767).

$2.49

$

In Stock, only 4 left!

0
