H3011 H HSA (MZAJ) - Honda Riding Mower, Made in Japan (SN: MZAJ-6000001 - MZAJ-9999999) REAR BODY Parts Diagram

Riding Mower, Made in Japan

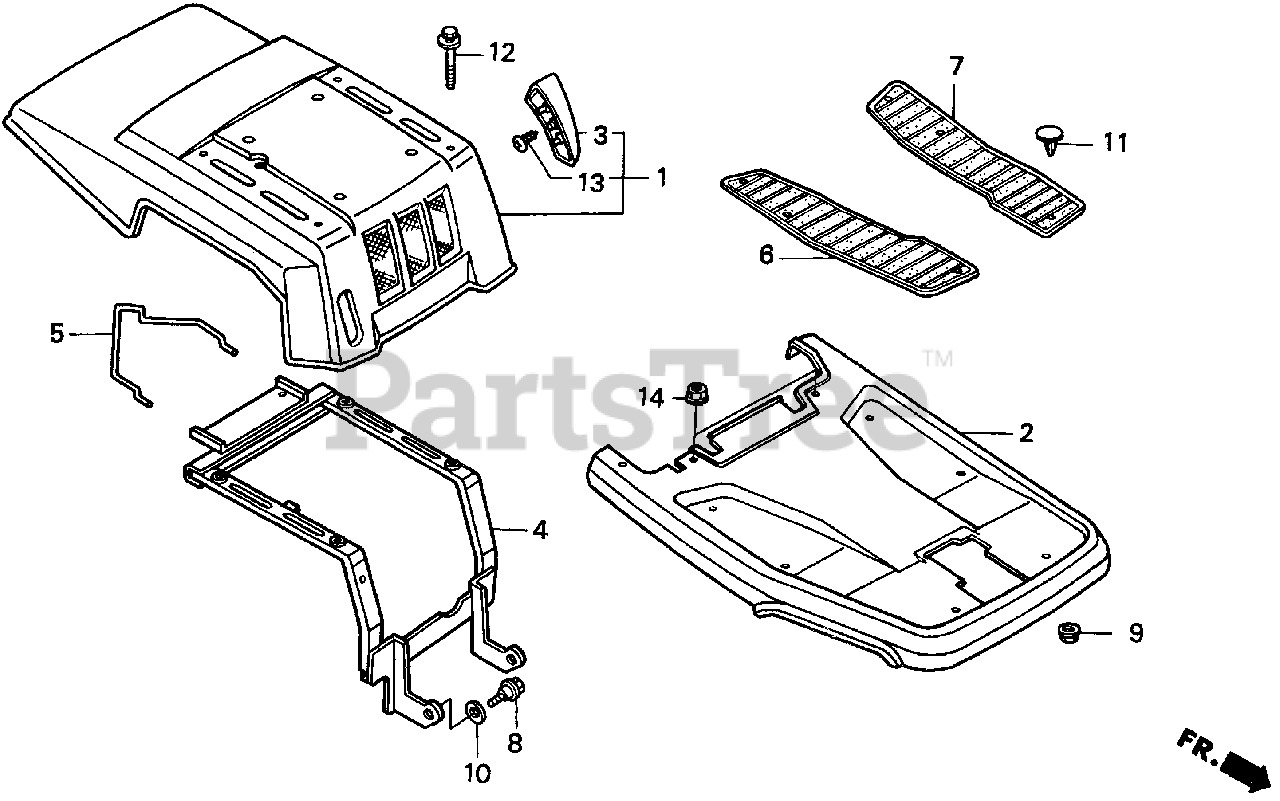

REAR BODY Parts Diagram

  • Title

1

Honda 63300-763-A00ZA

BODY ASSY., RR. *R165* (JOLLY RED)

$902.99

$

Usually ships in 3-6 days

0

2

Honda 65130-763-A00ZB

FLOOR *R280* (POWER RED)

$969.99

$

Usually ships in 3-6 days

0

3

Honda 76429-763-A00ZA

INDICATOR, HEIGHT ADJUSTING *R165* (JOLLY RED)

$

$

Not available

4

Honda 81120-763-A00

FRAME, SEAT

$314.99

$

Usually ships in 3-6 days

0

5

Honda 81143-763-A00

SPRING, MANUAL SET

$13.99

$

Usually ships in 3-6 days

0

6

Honda 83301-751-000

FLOOR MAT, R.

$71.99

$

Usually ships in 3-6 days

0

7

Honda 83302-751-000

FLOOR MAT, L.

$71.99

$

Usually ships in 3-6 days

0

8

Honda 90106-751-010

SEE PART DETAILS - PRI; BOLT, HINGE (10MM)

$7.99

$

In Stock, only 2 left!

0

9

Honda 90301-634-670

NUT, FLANGE (6MM)

$14.99

$

Usually ships in 3-6 days

0

10

Honda 90432-751-000

WASHER, LOCK (B)

$6.99

$

Usually ships in 3-6 days

0

11

Honda 90657-671-631

CLIP, TRIM (BLACK)

$12.99

$

Usually ships in 3-6 days

0

12

Honda 93404-06020-07

BOLT-WASHER (6X20)

$2.49

$

Usually ships in 3-6 days

0

13

Honda 93903-25120

SCREW, TAPPING (6X12)

$1.49

$

Usually ships in 3-6 days

0

14

Honda 94050-08080

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0468447).

$1.49

$

In Stock, Qty 20+

0
