H3011 H HSA (MZAJ) - Honda Riding Mower, Made in Japan (SN: MZAJ-6000001 - MZAJ-9999999) SEAT Parts Diagram

Riding Mower, Made in Japan

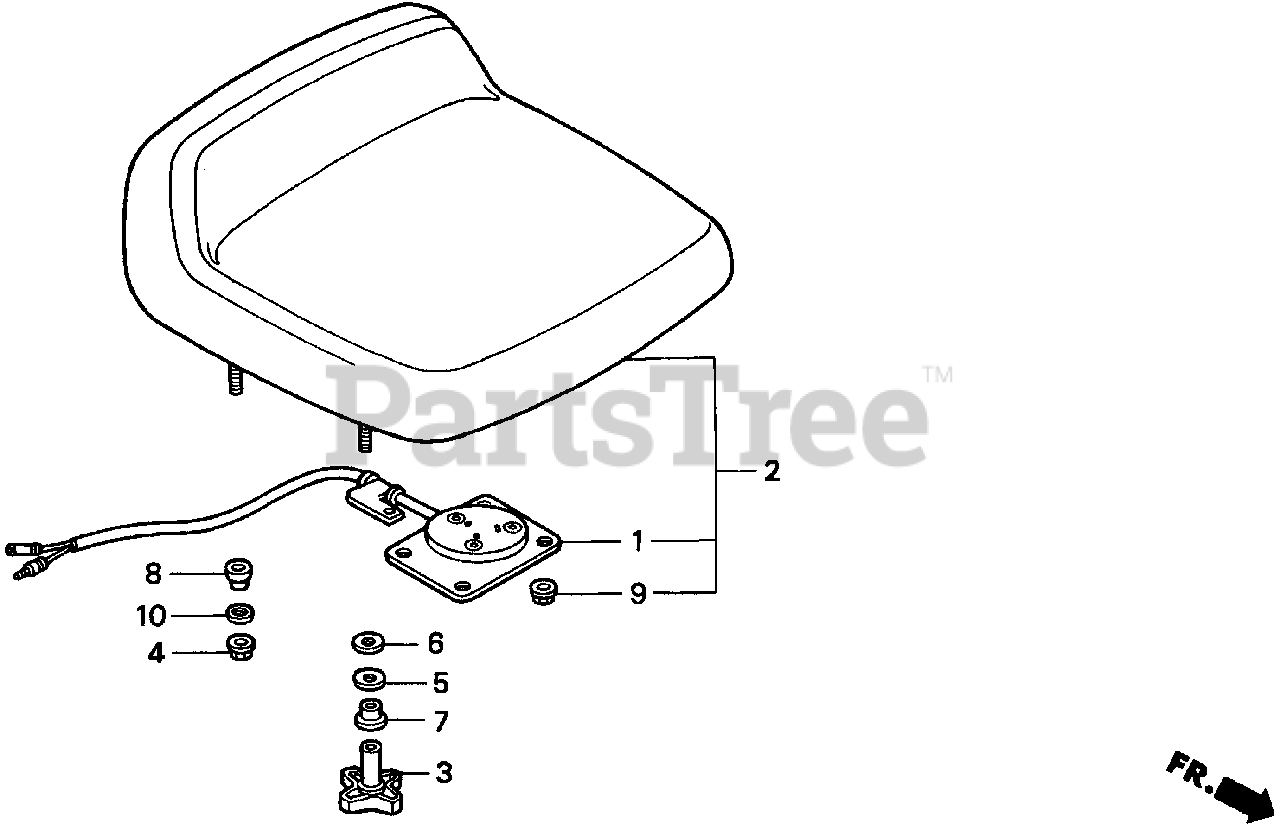

SEAT Parts Diagram

  • Title

1

Honda 35800-763-A01

SWITCH ASSY., SEAT (NOT AVAILABLE)

Note: Use up to Frame SN 6001453.

$

$

Not available

1

Honda 35800-763-A02

SWITCH ASSY., SEAT

Note: Use from Frame SN 6001454.

$91.99

$

Usually ships in 3-6 days

0

2

Honda 81100-763-A01

SEAT ASSY.

$479.99

$

Usually ships in 3-6 days

0

3

Honda 81173-763-A00

GRIP, SEAT

$21.99

$

Usually ships in 3-6 days

0

4

Honda 90301-473-003

NUT, U (6MM) (FUSE RASHI)

$5.49

$

Usually ships in 3-6 days

0

5

Honda 90481-760-K20

WASHER, SPRING (10MM)

$5.49

$

Usually ships in 3-6 days

0

6

Honda 90505-HA0-680

WASHER (6X20)

$3.99

$

Usually ships in 3-6 days

0

7

Honda 91552-763-A00

COLLAR, SEAT

$2.99

$

Usually ships in 3-6 days

0

8

Honda 91555-763-A00

COLLAR, SEAT SLIDE

$6.99

$

Usually ships in 3-6 days

0

9

Honda 94050-06080

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0612689).

$0.99

$

In Stock, Qty 12

0

10

Honda 94103-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, only 2 left!

0
