H3011 H HSA (MZAJ) - Honda Riding Mower, Made in Japan (SN: MZAJ-6000001 - MZAJ-9999999) STEERING WHEEL Parts Diagram

Riding Mower, Made in Japan

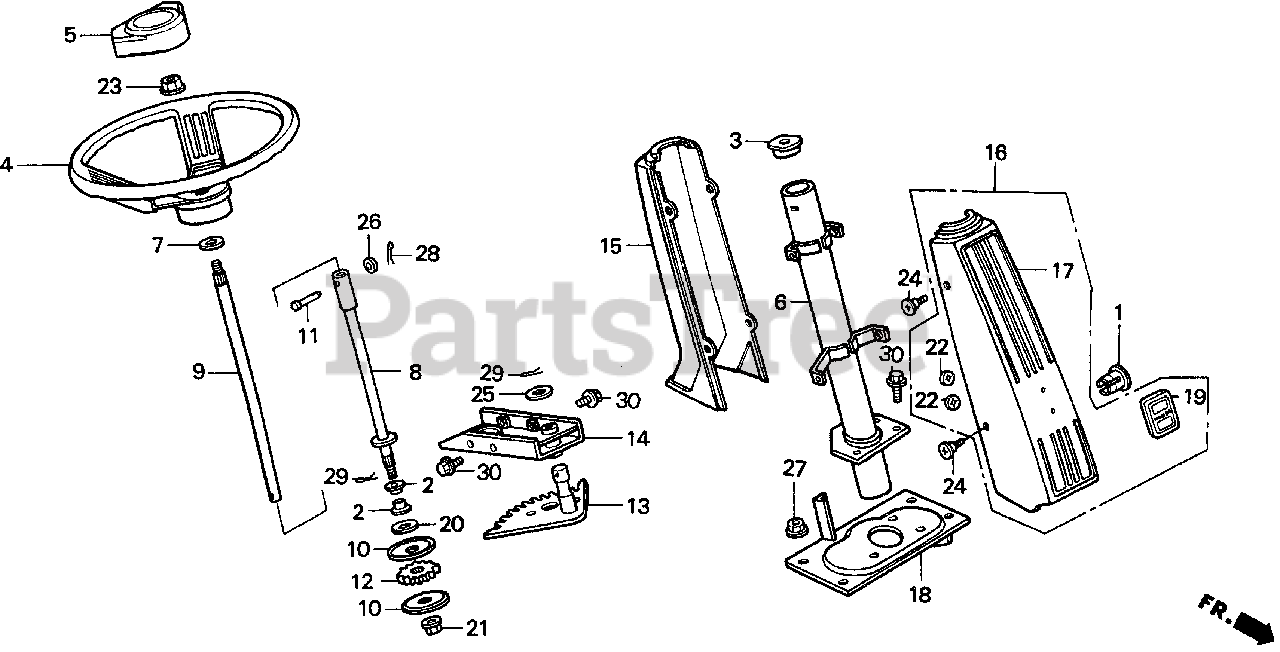

STEERING WHEEL Parts Diagram

  • Title

1

Honda 50315-763-A00ZA

PLUG, CROSS PIPE SETTING *R165* (JOLLY RED)

$5.99

$

Usually ships in 3-6 days

0

2

Honda 53055-750-000

BUSH (17X22X15)

$11.99

$

Usually ships in 3-6 days

0

3

Honda 53055-751-000

BUSH, STEERING SHAFT

$14.99

$

Usually ships in 3-6 days

0

4

Honda 53110-750-003

WHEEL, STEERING

$389.99

$

Usually ships in 3-6 days

0

5

Honda 53122-750-013

PAD, CENTER

$28.99

$

Usually ships in 3-6 days

0

6

Honda 53210-763-A03

PIPE, STEERING COLUMN

$282.99

$

Usually ships in 3-6 days

0

7

Honda 53222-579-000

WASHER, STEERING COLUMN

$17.99

$

Usually ships in 3-6 days

0

8

Honda 53310-751-000

SHAFT, STEERING

$121.99

$

Usually ships in 3-6 days

0

9

Honda 53313-751-010

SHAFT, STEERING WHEEL

$121.99

$

Usually ships in 3-6 days

0

10

Honda 53315-751-010

WASHER (14.2X44)

$10.99

$

Usually ships in 3-6 days

0

11

Honda 53317-751-000

PIN (7X30)

$4.99

$

Usually ships in 3-6 days

0

12

Honda 53421-751-000

GEAR, STEERING DRIVE

$41.99

$

Usually ships in 3-6 days

0

13

Honda 53423-763-A00

GEAR, STEERING DRIVEN

$85.99

$

Usually ships in 3-6 days

0

14

Honda 53475-763-A00

BASE, STEERING

$75.99

$

Usually ships in 3-6 days

0

15

Honda 61401-763-A00ZA

COVER, RR. COLUMN *R165* (JOLLY RED)

$

$

Not available

16

Honda 61402-763-D00ZB

COVER ASSY., FR. COLUMN *R280* (POWER RED)

$92.99

$

Usually ships in 3-6 days

0

17

Honda 61405-763-A00ZC

COVER, FR. COLUMN *R280* (POWER RED)

$

$

Not available

18

Honda 75254-763-A02

PLATE, P.T.O. CLUTCH BASE

Note: Use up to Frame SN 6002529.

$

$

Currently unavailable

18

Honda 75254-763-A03

PLATE, P.T.O. CLUTCH BASE

Note: Use from Frame SN 6002530.

$64.99

$

Usually ships in 3-6 days

0

19

Honda 87126-763-D20

EMBLEM, FR.

$56.99

$

Usually ships in 3-6 days

0

20

Honda 90122-428-000

WASHER, PIVOT BOLT (NOT AVAILABLE)

$

$

Currently unavailable

21

Honda 90304-GA6-003

NUT, AXLE (10MM)

$3.99

$

Usually ships in 3-6 days

0

22

Honda 90313-172-000

NUT, SPEED (4MM)

$7.99

$

Usually ships in 3-6 days

0

23

Honda 90380-SB2-003

NUT, SELF-LOCK (OHASHI)

$1.99

$

In Stock, only 2 left!

0

24

Honda 90381-MB2-000

SCREW, SPECIAL (6X11)

$4.99

$

Usually ships in 3-6 days

0

25

Honda 90451-065-920

WASHER, THRUST (17MM)

$4.99

$

Usually ships in 3-6 days

0

26

Honda 90502-155-000

WASHER, PLAIN (7MM) (NOT AVAILABLE)

$3.49

$

Usually ships in 3-6 days

0

27

Honda 94050-08080

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0468447).

$1.49

$

In Stock, Qty 20+

0

28

Honda 94201-20150

PIN, COTTER (2.0X15)

$1.49

$

In Stock, only 2 left!

0

29

Honda 94201-30250

PIN, SPLIT (3.0X25)
(Superseded to 94201-30450)

$1.49

$

In Stock, Qty 7

0

29

Honda 94201-30450

SEE PART DETAILS - PRI; PIN, COTTER (3.0X45) (Honda Code 0058453).

$1.49

$

In Stock, Qty 7

0

30

Honda 95701-08016-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) (Honda Code 2374767).

Note: Use up to Frame SN 6002529.

$2.49

$

In Stock, only 4 left!

0

30

Honda 95701-08016-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) (Honda Code 2374767).

Note: Use from Frame SN 6002530.

$2.49

$

In Stock, only 4 left!

0
