H3011 SA (MZAJ) - Honda Riding Mower, Made in Japan (SN: MZAJ-5000001 - MZAJ-6000000) FOOT BRAKE PEDAL Parts Diagram

Riding Mower, Made in Japan

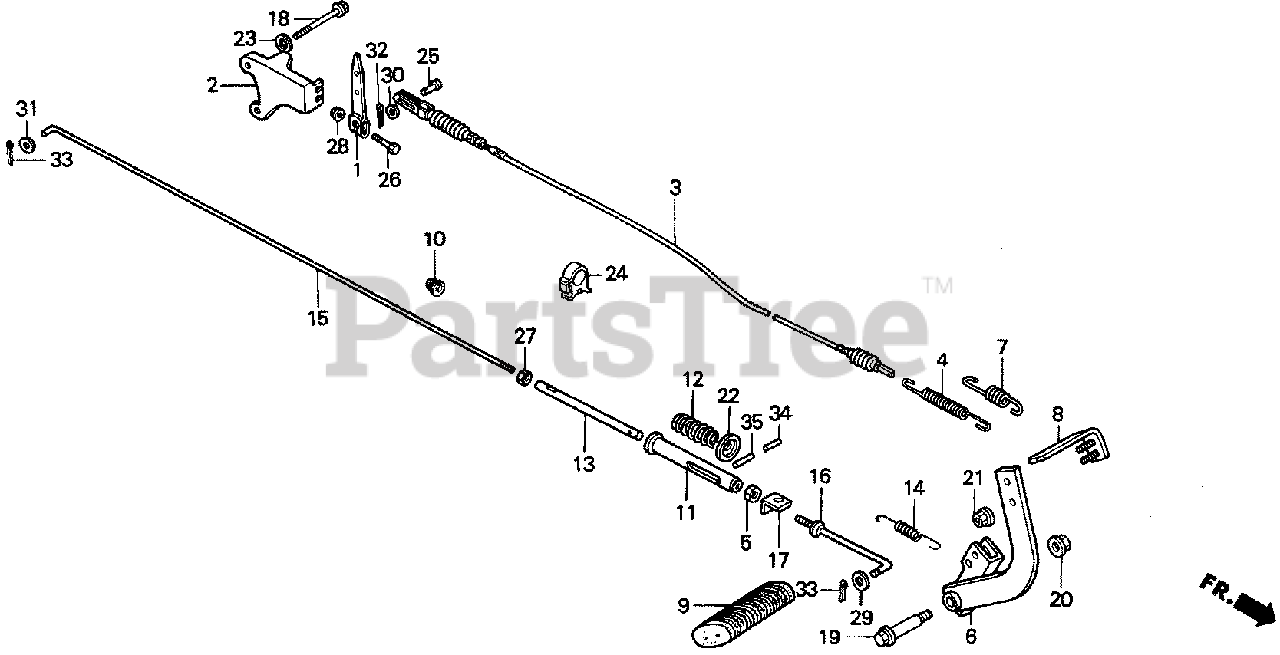

FOOT BRAKE PEDAL Parts Diagram

  • Title

1

Honda 22815-751-700

ARM, CLUTCH

$

$

Not available

2

Honda 22817-751-000

HOLDER, CLUTCH WIRE

$

$

Not available

3

Honda 24140-763-A02

CABLE B, CLUTCH (BRAKE)

$

$

Not available

4

Honda 24147-763-A00

SPRING, CLUTCH

$

$

Not available

5

Honda 45423-KA4-700

NUT, HEX. (6MM) (LEFT HAND THREAD)

$1.99

$

Usually ships in 3-6 days

0

6

Honda 46510-763-A00

PEDAL, FOOT BRAKE

$

$

Not available

7

Honda 46514-763-A00

SPRING, BRAKE PEDAL

$5.49

$

Usually ships in 3-6 days

0

8

Honda 46515-751-010

BRACKET, BRAKE PEDAL

$

$

Not available

9

Honda 46545-751-700

RUBBER, BRAKE PEDAL

$

$

Not available

10

Honda 46547-751-000

BUSH, BRAKE ROD

$5.49

$

Usually ships in 3-6 days

0

11

Honda 47241-763-A00

PIPE, BRAKE

$51.99

$

Usually ships in 3-6 days

0

12

Honda 47251-751-000

SPRING, BRAKE ROD SETTING

$

$

Not available

13

Honda 47253-763-A00

SHAFT, SPRING SET

$26.99

$

Usually ships in 3-6 days

0

14

Honda 47255-751-000

SPRING, BRAKE DAMPER

$6.99

$

Usually ships in 3-6 days

0

15

Honda 47261-763-D00

ROD A, FOOT BRAKE

$31.99

$

Usually ships in 3-6 days

0

16

Honda 47265-763-A00

ROD B, FOOT BRAKE

$6.49

$

Usually ships in 3-6 days

0

17

Honda 47269-763-A00

PLATE, DAMPER SPRING SETTING

$3.99

$

Usually ships in 3-6 days

0

18

Honda 90015-ZG0-801

BOLT, FLANGE (6X65)

$3.49

$

In Stock, only 1 left!

0

19

Honda 90104-751-000

BOLT, P.T.O. CLUTCH LEVER

$9.99

$

In Stock, only 1 left!

0

20

Honda 90118-961-000

NUT, SELF-LOCK (8MM)

$6.99

$

Usually ships in 3-6 days

0

21

Honda 90208-425-870

NUT, FLANGE (8MM) (NOT AVAILABLE)

$

$

Not available

22

Honda 90526-751-700

WASHER, BRAKE SPRING SETTING

$7.49

$

Usually ships in 3-6 days

0

23

Honda 90530-751-000

WASHER (6X15)

$

$

Not available

24

Honda 90690-GHB-631

CLIP, CABLE (8MM)

$2.99

$

Usually ships in 3-6 days

0

25

Honda 90755-751-010

PIN, CLUTCH JOINT

$4.49

$

Usually ships in 3-6 days

0

26

Honda 92101-05025-0A

BOLT, HEX. (5X25)

$1.99

$

Usually ships in 3-6 days

0

27

Honda 94001-08000-0S

NUT, HEX. (8MM)

$1.99

$

In Stock, Qty 20+

0

28

Honda 94050-05000

NUT, FLANGE (5MM)

$1.99

$

In Stock, Qty 20+

0

29

Honda 94101-05800

WASHER, PLAIN (5MM)

$1.49

$

In Stock, only 2 left!

0

30

Honda 94101-06800

WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

31

Honda 94101-08800

SEE PART DETAILS - PRI; WASHER, PLAIN (8MM)

$2.49

$

In Stock, only 4 left!

0

32

Honda 94201-16120

PIN, SPLIT (1.6X12)

$1.49

$

In Stock, Qty 12

0

33

Honda 94201-20150

PIN, SPLIT (2.0X15)

$1.49

$

In Stock, only 2 left!

0

34

Honda 94305-30282

PIN, SPRING (3X28)

$1.99

$

Usually ships in 3-6 days

0

35

Honda 94305-50282

PIN, SPRING (5X28)

$2.49

$

Usually ships in 3-6 days

0
