H3013 H HSA (MZAH) - Honda Riding Mower, Made in Japan (SN: MZAH-6000001 - MZAH-9999999) 11H/13H CHANGE LEVER Parts Diagram

Riding Mower, Made in Japan

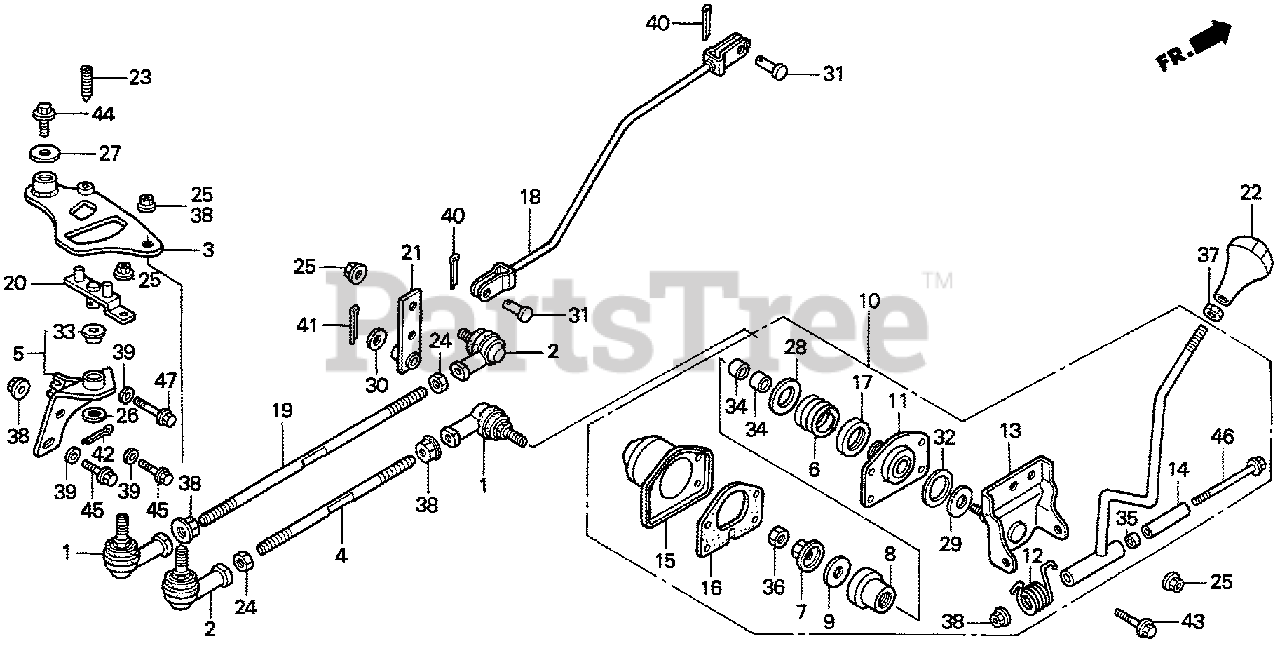

11H/13H CHANGE LEVER Parts Diagram

  • Title

1

Honda 24125-751-013

JOINT, R. BALL

$42.99

$

Usually ships in 3-6 days

0

2

Honda 24129-751-003

JOINT, L. BALL

$44.99

$

In Stock, only 1 left!

0

3

Honda 24138-763-D02

ARM, CONTROL

Note: Use up to Frame SN 6004377.

$

$

Not available

4

Honda 24363-763-D00

ROD, GEARSHIFT

$24.99

$

Usually ships in 3-6 days

0

5

Honda 24370-763-D01

BRACKET ASSY., RETURN ARM

$74.99

$

Usually ships in 3-6 days

0

6

Honda 24372-763-D02

SPRING, FRICTION

Note: Use up to Frame SN 6001515.

$

$

Not available

6

Honda 24372-763-D03

SPRING, FRICTION

Note: Use from Frame SN 6001516.

$16.99

$

Usually ships in 3-6 days

0

7

Honda 04201-763-D00

WASHER SET, FRICTION

Note: Use up to Frame SN 6001515.

$

$

Not available

7

Honda 24376-763-D05

WASHER, FRICTION SETTING

Note: Use from Frame SN 6001516.

$14.99

$

Usually ships in 3-6 days

0

8

Honda 24378-763-D04

COLLAR, FRICTION SPRING

Note: Use up to Frame SN 6001515.

$21.99

$

Usually ships in 3-6 days

0

8

Honda 24378-763-D04

COLLAR, FRICTION SPRING

Note: Use from Frame SN 6000971.

$21.99

$

Usually ships in 3-6 days

0

9

Honda 24379-763-D03

WASHER, FRICTION (15X40X3)

$

$

Not available

10

Honda 24400-763-D05

LEVER ASSY., CHANGE

$

$

Not available

11

Honda 24413-763-D02

HOLDER, CHANGE LEVER

$103.99

$

Usually ships in 3-6 days

0

12

Honda 24416-763-D01

SPRING, CHANGE LEVER

$14.99

$

Usually ships in 3-6 days

0

13

Honda 24425-763-D02

SHAFT, CHANGE LEVER

$83.99

$

Usually ships in 3-6 days

0

14

Honda 24429-763-D00

COLLAR, CHANGE LEVER JOINT

$8.49

$

Usually ships in 3-6 days

0

15

Honda 24435-763-D00

COVER, FRICTION

$19.99

$

Usually ships in 3-6 days

0

16

Honda 24438-763-D00

GASKET, FRICTION COVER (NOT AVAILABLE)

Note: Use up to Frame SN 6004197.

$

$

Currently unavailable

16

Honda 24438-763-D01

GASKET, FRICTION COVER

Note: Use from Frame SN 6004198.

$9.49

$

Usually ships in 3-6 days

0

17

Honda 24439-763-D00

GUIDE, SPRING

$8.49

$

Usually ships in 3-6 days

0

18

Honda 46571-763-D00

ROD, RETURN (A)

$

$

Not available

19

Honda 46573-763-D00

ROD, RETURN (305MM) (C)

Note: (Optional).

$21.99

$

Usually ships in 3-6 days

0

20

Honda 46576-763-D01

ARM A, RETURN

$61.99

$

Usually ships in 3-6 days

0

21

Honda 46577-763-D00

ARM B, RETURN

$42.99

$

Usually ships in 3-6 days

0

22

Honda 54225-763-A01

KNOB, SHIFT LEVER

$57.99

$

Usually ships in 3-6 days

0

23

Honda 90145-763-D00

SCREW, FIXING (8X1.25)

Note: Use up to Frame SN 6002994.

$8.49

$

Usually ships in 3-6 days

0

24

Honda 90201-750-000

NUT, HEX. (8MM)

$4.49

$

Usually ships in 3-6 days

0

25

Honda 90309-428-731

NUT, FLANGE (M8X1.25) (SELF-LOCK)

Note: Use up to Frame SN 6001533.

$5.49

$

In Stock, Qty 17

0

25

Honda 90309-428-731

NUT, FLANGE (M8X1.25) (SELF-LOCK)

Note: Use from Frame SN 6001534 to 6003652.

$5.49

$

In Stock, Qty 17

0

25

Honda 94050-08080

NUT, FLANGE (8MM)

Note: Use from Frame SN 6003653.

$1.49

$

In Stock, Qty 20+

0

26

Honda 90439-443-740

WASHER (16X22)

$5.99

$

Usually ships in 3-6 days

0

27

Honda 90471-435-770

WASHER (8MM) (NOT AVAILABLE)

Note: Use up to Frame SN 6002994.

$

$

Not available

28

Honda 90501-763-D00

WASHER (31X46X1)

$13.99

$

Usually ships in 3-6 days

0

29

Honda 90502-763-D00

WASHER (15.5X40X2) (NOT AVAILABLE)

Note: Use up to Frame SN 6000970.

$

$

Currently unavailable

29

Honda 90502-763-D02

WASHER (15.5X36X2)

Note: Use from Frame SN 6000971.

$15.99

$

Usually ships in 3-6 days

0

30

Honda 90505-116-670

WASHER (13X20)

$4.49

$

Usually ships in 3-6 days

0

31

Honda 90753-763-D00

PIN (10X18)

$5.49

$

Usually ships in 3-6 days

0

32

Honda 91251-763-D00

DUST SEAL

Note: Use from Frame SN 6001516.

$4.99

$

Usually ships in 3-6 days

0

33

Honda 91556-763-D01

BUSH (16X18X25)

$11.99

$

Usually ships in 3-6 days

0

34

Honda 91557-763-D02

BUSH (15X17X12)

$5.49

$

Usually ships in 3-6 days

0

35

Honda 91562-763-D00

COLLAR (13X19.1X10)

$5.49

$

Usually ships in 3-6 days

0

36

Honda 94002-10080-0S

NUT, HEX. (10MM)

$2.49

$

Usually ships in 3-6 days

0

37

Honda 94002-12020-0S

NUT, HEX. (12MM)

$2.49

$

Usually ships in 3-6 days

0

38

Honda 94050-08080

NUT, FLANGE (8MM)

Note: Use up to Frame SN 2000200.

$1.49

$

In Stock, Qty 20+

0

38

Honda 94050-08080

NUT, FLANGE (8MM)

Note: Use from Frame SN 2000201.

$1.49

$

In Stock, Qty 20+

0

39

Honda 94103-08800

WASHER, PLAIN (8MM)

$1.49

$

In Stock, Qty 6

0

40

Honda 94201-25300

PIN, SPLIT (2.5X30)

$1.49

$

Usually ships in 3-6 days

0

41

Honda 94201-25300

PIN, SPLIT (2.5X30)

$1.49

$

Usually ships in 3-6 days

0

42

Honda 94201-30250

PIN, SPLIT (3.0X25)
(Superseded to 94201-30450)

$1.49

$

In Stock, Qty 20+

0

42

Honda 94201-30450

PIN, SPLIT (3.0X45)

$1.49

$

In Stock, Qty 20+

0

43

Honda 95701-06014-08

BOLT, FLANGE (6X14)

$2.49

$

In Stock, Qty 20+

0

44

Honda 95701-08020-08

BOLT, FLANGE (8X20)

Note: Use up to Frame SN 6002994.

$2.49

$

In Stock, Qty 9

0

45

Honda 95701-08045-08

BOLT, FLANGE (8X45)

$3.49

$

In Stock, Qty 20+

0

46

Honda 95701-08080-08

BOLT, FLANGE (8X80)

$4.49

$

Usually ships in 3-6 days

0

47

Honda 95701-08115-08

BOLT, FLANGE (8X115)

$4.49

$

Usually ships in 3-6 days

0
