H3013 H HSA (MZAH) - Honda Riding Mower, Made in Japan (SN: MZAH-6000001 - MZAH-9999999) 11H/13H SUB-TRANSMISSION Parts Diagram

Riding Mower, Made in Japan

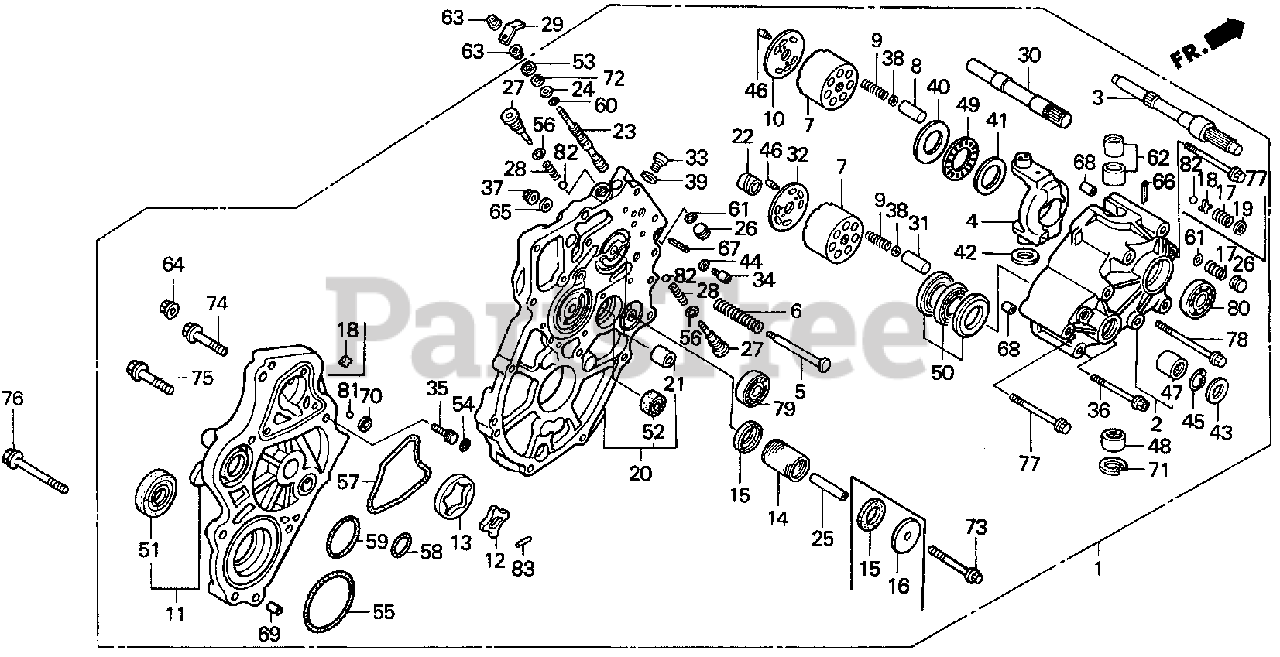

11H/13H SUB-TRANSMISSION Parts Diagram

  • Title

1

Honda 20006-VD6-000

TRANSMISSION SUB-ASSY. (H.S.T.)

$1297.99

$

Usually ships in 3-6 days

0

2

Honda 25310-VD6-000

CASE, PUMP

Note: Use up to Frame SN 6002366.

$

$

Not available

2

Honda 25310-VD6-010

CASE, PUMP

Note: Use from Frame SN 6002367.

$269.99

$

Usually ships in 3-6 days

0

3

Honda 25321-VD6-000

SHAFT, PUMP

$130.99

$

Usually ships in 3-6 days

0

4

Honda 25330-VD6-000

BOWL, PUMP CONTROL

$185.99

$

Usually ships in 3-6 days

0

5

Honda 25333-VD6-000

SHAFT, RETURN

$15.99

$

Usually ships in 3-6 days

0

6

Honda 25334-VD6-000

SPRING, RETURN

$3.99

$

Usually ships in 3-6 days

0

7

Honda 25341-VD6-800

CYLINDER, PUMP

$88.99

$

Usually ships in 3-6 days

0

8

Honda 25342-VD6-000

PISTON, PUMP

$10.99

$

Usually ships in 3-6 days

0

9

Honda 25343-VD6-000

SPRING, PISTON

$2.99

$

Usually ships in 3-6 days

0

10

Honda 25344-VD6-800

PLATE, PUMP CYLINDER

$34.99

$

Usually ships in 3-6 days

0

11

Honda 04202-VD6-000

CASE SET, CHARGE

Note: Use from Frame SN 6001534 to 6002366.

$

$

Not available

11

Honda 25410-VD6-000

CASE, CHARGE PUMP

Note: Use up to Frame SN 6001533.

$

$

Not available

11

Honda 25410-VD6-020

CASE, CHARGE PUMP

Note: Use from Frame SN 6002367.

$202.99

$

Usually ships in 3-6 days

0

12

Honda 25411-VD6-003

ROTOR, TROCHOID

$16.99

$

Usually ships in 3-6 days

0

13

Honda 25415-VD6-003

VANE, TROCHOID

$27.99

$

Usually ships in 3-6 days

0

14

Honda 25421-VD6-000

FILTER, SUCTION (NOT AVAILABLE)

Note: Use up to Frame SN 6002366.

$

$

Currently unavailable

14

Honda 25421-VD6-003

FILTER, SUCTION

Note: Use from Frame SN 6002367.

$

$

Not available

15

Honda 25422-VD6-000

CAP, FILTER GUIDE

Note: Use up to Frame SN 6002366.

$8.49

$

Usually ships in 3-6 days

0

15

Honda 25422-VD6-000

CAP, FILTER GUIDE

Note: Use from Frame SN 6002367.

$8.49

$

Usually ships in 3-6 days

0

16

Honda 25423-VD6-000

WASHER, FILTER GUIDE

Note: Use up to Frame SN 6002366.

$

$

Not available

17

Honda 25431-VD6-000

SPRING, RELIEF VALVE (NOT AVAILABLE)

Note: Use up to Frame SN 6002366.

$

$

Not available

17

Honda 25431-VD6-010

SPRING, RELIEF VALVE

Note: Use from Frame SN 6002367.

$1.99

$

Usually ships in 3-6 days

0

18

Honda 25432-VD6-003

GUIDE, RELIEF VALVE SPRING (NOT AVAILABLE)

Note: Use up to Frame SN 6002366.

$

$

Currently unavailable

19

Honda 25433-VD6-000

WASHER, RELIEF VALVE

Note: Use up to Frame SN 6002366.

$2.99

$

Usually ships in 3-6 days

0

20

Honda 25510-VD6-000

PLATE, DISTRIBUTOR

$785.99

$

Usually ships in 3-6 days

0

21

Honda 25512-VD6-003

BUSH, PUMP SHAFT

$13.99

$

Usually ships in 3-6 days

0

22

Honda 25514-VD6-000

BUSH, MOTOR SHAFT

$17.99

$

Usually ships in 3-6 days

0

23

Honda 25521-VD6-020

SPOOL, NEUTRAL VALVE

$43.99

$

Usually ships in 3-6 days

0

24

Honda 25522-VD6-000

COLLAR, NEUTRAL VALVE

$6.49

$

Usually ships in 3-6 days

0

25

Honda 25523-VD6-010

COLLAR, FILTER SETTING

$8.49

$

Usually ships in 3-6 days

0

26

Honda 25524-VD6-000

CAP, NEUTRAL VALVE

Note: Use up to Frame SN 6002366.

$6.49

$

Usually ships in 3-6 days

0

26

Honda 25524-VD6-000

CAP, NEUTRAL VALVE

Note: Use from Frame SN 6002367.

$6.49

$

Usually ships in 3-6 days

0

27

Honda 25525-VD6-000

BOLT, CHECK VALVE

$19.99

$

Usually ships in 3-6 days

0

28

Honda 25526-VD6-000

SPRING, CHECK VALVE

$1.99

$

Usually ships in 3-6 days

0

29

Honda 25527-VD6-030

LEVER, SPOOL SHIFT

$6.49

$

Usually ships in 3-6 days

0

30

Honda 25721-VD6-000

SHAFT, MOTOR

$87.99

$

Usually ships in 3-6 days

0

31

Honda 25742-VD6-000

PISTON, MOTOR

$10.99

$

Usually ships in 3-6 days

0

32

Honda 25744-VD6-800

PLATE, MOTOR CYLINDER

$33.99

$

Usually ships in 3-6 days

0

33

Honda 90101-VD6-003

BOLT, SPECIAL (10X13)

$5.49

$

Usually ships in 3-6 days

0

34

Honda 90108-VD6-000

BOLT, SPECIAL (8X9)

$4.49

$

Usually ships in 3-6 days

0

35

Honda 90116-VD6-000

BOLT, ADJUSTING (8MM)

Note: Use up to Frame SN 6001533.

$

$

Not available

35

Honda 90116-VD6-800

BOLT, ADJUSTING (6X33)

Note: Use from Frame SN 6001534.

$9.99

$

Usually ships in 3-6 days

0

36

Honda 90154-KB7-700

BOLT, FLANGE (8X73)

$27.99

$

Usually ships in 3-6 days

0

37

Honda 90301-473-003

NUT, U (6MM) (FUSE RASHI)

$5.49

$

Usually ships in 3-6 days

0

38

Honda 90503-VD6-000

WASHER, PISTON (5MM)

$2.49

$

Usually ships in 3-6 days

0

39

Honda 90505-VD6-000

WASHER, SEALING (10MM)

$3.49

$

Usually ships in 3-6 days

0

40

Honda 90506-VD6-003

BEARING, PLATE

$27.99

$

Usually ships in 3-6 days

0

41

Honda 90507-VD6-003

PLATE, NEEDLE BEARING

$20.99

$

Usually ships in 3-6 days

0

42

Honda 90538-VD6-000

WASHER (20.5X32X3)

$10.99

$

Usually ships in 3-6 days

0

43

Honda 90539-VD6-000

WASHER, THRUST (17.5MM) (NOT AVAILABLE)

$

$

Not available

44

Honda 90540-VD6-000

WASHER, SEALING (8MM)

$3.49

$

Usually ships in 3-6 days

0

45

Honda 90660-VD6-000

CLIP, BEARING

$3.99

$

Usually ships in 3-6 days

0

46

Honda 90754-VD6-000

PIN, DOWEL (4X3)

$4.49

$

Usually ships in 3-6 days

0

47

Honda 91002-GG2-003

BEARING, NEEDLE (17X24X15) (SOURCE: VINTAGE PARTS INC.)

$21.99

$

Usually ships in 3-6 days

0

48

Honda 91014-HA7-671

BEARING, NEEDLE (20MM) (NOT AVAILABLE)

$

$

Not available

49

Honda 91055-VD6-003

BEARING, THRUST ROLLER

$33.99

$

Usually ships in 3-6 days

0

50

Honda 91067-VD6-003

BEARING, THRUST BALL

$86.99

$

Usually ships in 3-6 days

0

51

Honda 91203-751-003

OIL SEAL (20X38X10)

$12.99

$

In Stock, only 1 left!

0

52

Honda 91204-751-003

OIL SEAL (20X31X7)

$9.99

$

Usually ships in 3-6 days

0

53

Honda 91256-VD6-003

DUST SEAL (5X14X3)

$

$

Not available

54

Honda 15142-PE0-000

O-RING (4.8X1.9)

Note: Use from Frame SN 6001534.

$3.49

$

Usually ships in 3-6 days

0

54

Honda 91306-PJ4-000

SEE PART DETAILS - PRI; O-RING (6.8X1.9)

Note: Use up to Frame SN 6001533.

$4.49

$

Usually ships in 3-6 days

0

55

Honda 91314-MG7-003

SEE PART DETAILS - PRI; O-RING (69.5X3) (ARAI)

$11.99

$

Usually ships in 3-6 days

0

55

Honda 91314-MJ0-000

SEE PART DETAILS - SUP; O-RING (3X70)
(Superseded to 91314-MG7-003)

$11.99

$

Usually ships in 3-6 days

0

56

Honda 91353-VD6-003

O-RING (11.8X2.4)

$1.99

$

Usually ships in 3-6 days

0

57

Honda 91359-VD6-003

O-RING (2.4)

$5.99

$

Usually ships in 3-6 days

0

58

Honda 91360-VD6-003

O-RING (22.5X2.4)

$1.99

$

Usually ships in 3-6 days

0

59

Honda 91361-VD6-003

O-RING (34X2.4)

$2.99

$

Usually ships in 3-6 days

0

60

Honda 91362-VD6-000

O-RING (P7)

$1.49

$

Usually ships in 3-6 days

0

61

Honda 91302-GE0-000

O-RING (8.8X1.9)

Note: Use up to Frame SN 6002366.

$4.99

$

In Stock, only 4 left!

0

61

Honda 91302-GE0-000

O-RING (8.8X1.9)

Note: Use from Frame SN 6002367.

$4.99

$

In Stock, only 4 left!

0

61

Honda 91363-VD6-003

O-RING (P9)
(Superseded to 91302-GE0-000)

Note: Use up to Frame SN 6002366.

$4.99

$

In Stock, only 4 left!

0

61

Honda 91363-VD6-003

O-RING (P9)
(Superseded to 91302-GE0-000)

Note: Use from Frame SN 6002367.

$4.99

$

In Stock, only 4 left!

0

62

Honda 91556-VD6-800

SEE PART DETAILS - SUP; COLLAR, CONTROL BOWL
(Superseded to 91556-VD6-801)

$

$

Not available

62

Honda 91556-VD6-801

SEE PART DETAILS - PRI; COLLAR, CONTROL BOWL

$

$

Not available

63

Honda 94050-05000

NUT, FLANGE (5MM)

$1.99

$

In Stock, Qty 20+

0

64

Honda 94050-06080

NUT, FLANGE (6MM)

Note: Use from Frame SN 6001534.

$0.99

$

In Stock, Qty 12

0

64

Honda 94050-08080

NUT, FLANGE (8MM)

Note: Use up to Frame SN 6001533.

$1.49

$

In Stock, Qty 20+

0

65

Honda 94101-06800

WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

66

Honda 94201-30250

PIN, SPLIT (3.0X25)
(Superseded to 94201-30450)

$1.49

$

In Stock, Qty 7

0

66

Honda 94201-30450

PIN, SPLIT (3.0X45)

$1.49

$

In Stock, Qty 7

0

67

Honda 94201-40280

PIN, SPLIT (4.0X28)

$1.49

$

In Stock, Qty 5

0

67

Honda 94201-40300

PIN, SPLIT (4.0X30)

$1.49

$

In Stock, Qty 5

0

68

Honda 94301-06100

PIN, DOWEL (6X10)

$2.99

$

Usually ships in 3-6 days

0

69

Honda 94301-08140

PIN, DOWEL (8X14)

$2.99

$

In Stock, Qty 14

0

70

Honda 94520-12000

CIRCLIP (INNER) (12MM)

$0.99

$

Usually ships in 3-6 days

0

71

Honda 94520-28000

CIRCLIP (INNER) (28MM)

$1.49

$

Usually ships in 3-6 days

0

72

Honda 94524-14000

CIRCLIP (INNER) (14MM)

$1.49

$

Usually ships in 3-6 days

0

73

Honda 95701-06075-08

BOLT, FLANGE (6X75)

$2.99

$

Usually ships in 3-6 days

0

74

Honda 95701-08030-08

BOLT, FLANGE (8X30)

$1.99

$

Usually ships in 3-6 days

0

75

Honda 95701-08040-08

BOLT, FLANGE (8X40)

$2.99

$

Usually ships in 3-6 days

0

76

Honda 95701-08050-08

BOLT, FLANGE (8X50)

$2.99

$

Usually ships in 3-6 days

0

77

Honda 95701-08080-08

BOLT, FLANGE (8X80)

$3.49

$

Usually ships in 3-6 days

0

78

Honda 95701-08095-08

BOLT, FLANGE (8X95) (SOURCE: VINTAGE PARTS INC.)

$

$

Not available

79

Honda 96100-60040-00

BEARING, RADIAL BALL (6004)

$19.99

$

In Stock, only 1 left!

0

80

Honda 96100-62030-00

BEARING, RADIAL BALL (6203)

$10.99

$

Usually ships in 3-6 days

0

81

Honda 96211-10000

BALL, STEEL (#10) (5/16)

Note: Use from Frame SN 6002367.

$1.99

$

Usually ships in 3-6 days

0

82

Honda 96211-13000

BALL, STEEL (#13) (13/32)

$0.99

$

Usually ships in 3-6 days

0

83

Honda 96220-30158

ROLLER (3X15.8)

Note: Use up to Frame SN 6000006.

$0.99

$

Usually ships in 3-6 days

0

83

Honda 96220-30168

ROLLER (3X16.8)

Note: Use from Frame SN 6000007.

$0.99

$

Usually ships in 3-6 days

0
