H3013 H HSA (MZAH) - Honda Riding Mower, Made in Japan (SN: MZAH-6000001 - MZAH-9999999) 11H/13H TRANSMISSION CASE Parts Diagram

Riding Mower, Made in Japan

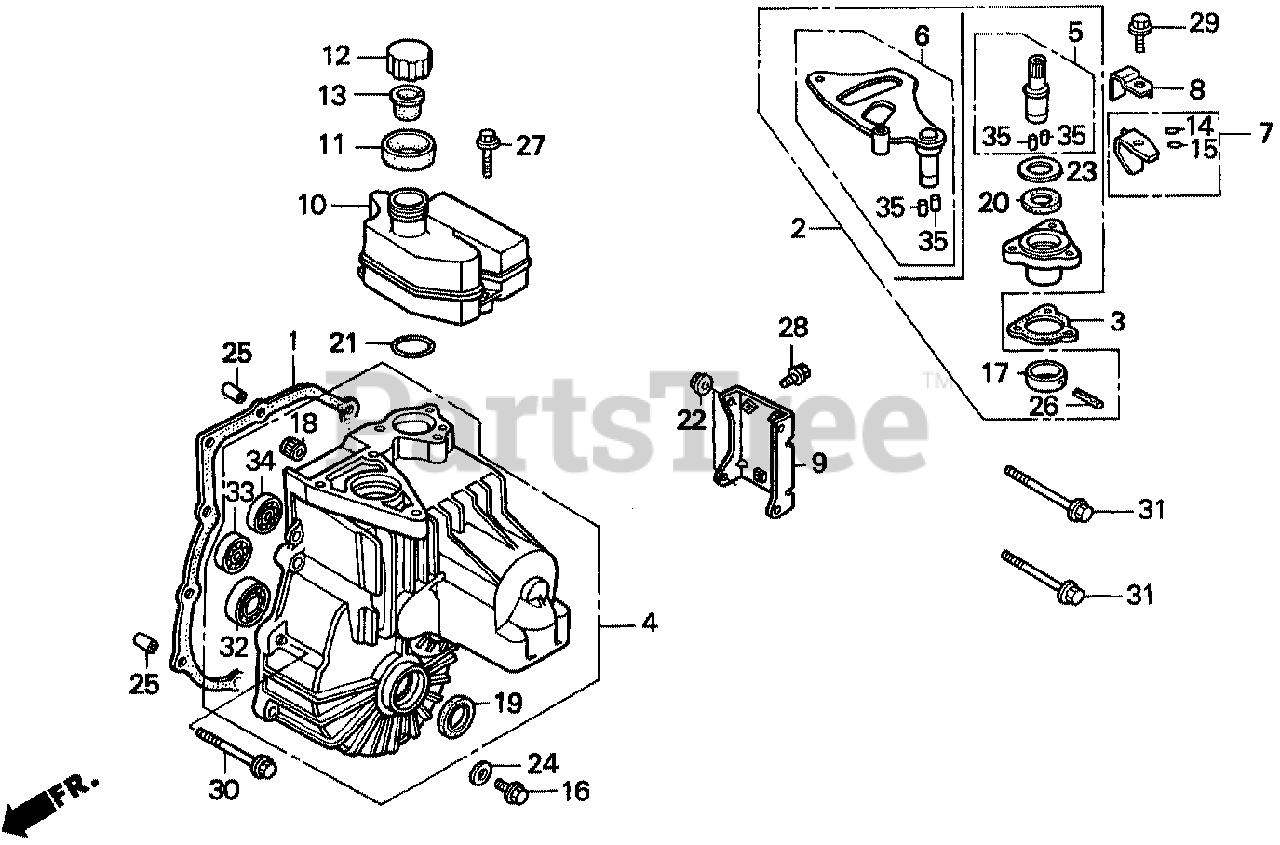

11H/13H TRANSMISSION CASE Parts Diagram

  • Title

1

Honda 21115-VD6-010

GASKET, L. TRANSMISSION CASE

$36.99

$

Usually ships in 3-6 days

0

2

Honda 21140-VD6-070

COVER, CONTROL SHAFT

$212.99

$

Usually ships in 3-6 days

0

3

Honda 21146-VD6-010

GASKET, CONTROL SHAFT COVER

$4.49

$

Usually ships in 3-6 days

0

4

Honda 21210-VD6-000

CASE, L. TRANSMISSION

$749.99

$

Usually ships in 3-6 days

0

5

Honda 24130-VD6-020

SHAFT, CONTROL (NOT AVAILABLE)

Note: Use up to Frame SN 6004377.

$

$

Not available

6

Honda 24130-VD6-030

SHAFT, CONTROL

Note: Use from Frame SN 6004378.

$184.99

$

Usually ships in 3-6 days

0

7

Honda 25530-VD6-000

STAY, SPOOL LEVER

$14.99

$

Usually ships in 3-6 days

0

8

Honda 25531-VD6-000

HOLDER, SPOOL LEVER

$6.99

$

Usually ships in 3-6 days

0

9

Honda 50133-763-D00

BRACKET, TRANSMISSION (A)

$49.99

$

Usually ships in 3-6 days

0

10

Honda 56850-VD6-000

TANK, OIL

$78.99

$

Usually ships in 3-6 days

0

11

Honda 56852-VD6-000

RUBBER, SEAL

$6.99

$

Usually ships in 3-6 days

0

12

Honda 56862-VD6-000

FRAME, OIL CAP

$13.99

$

Usually ships in 3-6 days

0

13

Honda 56864-VD6-000

GASKET, OIL CAP

$12.99

$

Usually ships in 3-6 days

0

14

Honda 87262-763-D00

MARK, GREEN

$2.49

$

Usually ships in 3-6 days

0

15

Honda 87263-763-D00

MARK (RED)

$2.49

$

Usually ships in 3-6 days

0

16

Honda 90081-MC7-000

BOLT, PLUG

$12.99

$

Usually ships in 3-6 days

0

17

Honda 90312-VD6-010

COLLAR, CONTROL SHAFT

$12.99

$

Usually ships in 3-6 days

0

18

Honda 91101-121-691

BEARING, NEEDLE (14MM) (TOYO)

$33.99

$

Usually ships in 3-6 days

0

19

Honda 91203-751-003

OIL SEAL (20X38X10)

$12.99

$

In Stock, only 1 left!

0

20

Honda 91204-187-013

OIL SEAL (20X30X5)

$7.49

$

Usually ships in 3-6 days

0

21

Honda 91354-VD6-003

O-RING (36X3.2)

$

$

Not available

22

Honda 94050-08080

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

23

Honda 94102-20800

WASHER, PLAIN (20MM)

$1.49

$

Usually ships in 3-6 days

0

24

Honda 94109-14000

WASHER, DRAIN PLUG (14MM)

$0.99

$

In Stock, Qty 20+

0

25

Honda 94301-10200

PIN, DOWEL (10X20)

$3.49

$

Usually ships in 3-6 days

0

26

Honda 94305-30282

PIN, SPRING (3X28)

Note: Use up to Frame SN 6000006.

$1.99

$

Usually ships in 3-6 days

0

26

Honda 94305-40282

PIN, SPRING (4X28)

Note: Use from Frame SN 6000007.

$2.99

$

In Stock, only 2 left!

0

27

Honda 95701-06028-08

BOLT, FLANGE (6X28)

$2.99

$

Usually ships in 3-6 days

0

28

Honda 95701-08014-08

BOLT, FLANGE (8X14)

$2.49

$

Usually ships in 3-6 days

0

29

Honda 95701-08025-08

BOLT, FLANGE (8X25)

$0.99

$

In Stock, only 2 left!

0

30

Honda 95701-08080-08

BOLT, FLANGE (8X80)

$3.49

$

Usually ships in 3-6 days

0

31

Honda 95801-08100-08

BOLT, FLANGE (8X100)

$3.99

$

Usually ships in 3-6 days

0

32

Honda 96100-60060-00

BEARING, RADIAL BALL (6006)

$16.99

$

Usually ships in 3-6 days

0

33

Honda 96100-63020-00

BEARING, RADIAL BALL (6302)

$10.99

$

Usually ships in 3-6 days

0

34

Honda 96100-63040-00

BEARING, RADIAL BALL (6304)

$17.99

$

Usually ships in 3-6 days

0

35

Honda 96220-60180

ROLLER (6X18) (NOT AVAILABLE)

$

$

Currently unavailable
