H4000 (8954-0) - Generac 4,000 Watt Portable Generator A-C Generator Model No. 8954-0 Parts Diagram

4,000 Watt Portable Generator

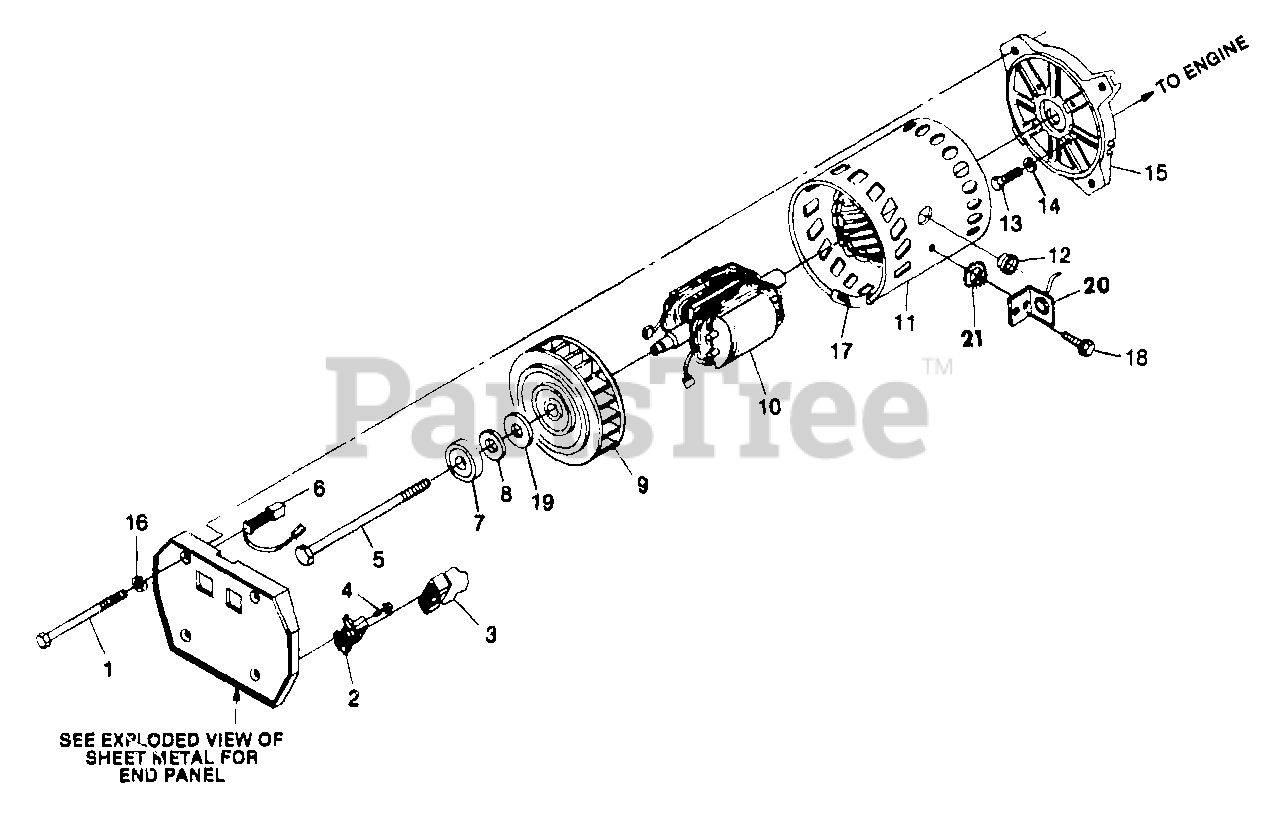

A-C Generator Model No. 8954-0 Parts Diagram

  • Title

1

Briggs & Stratton 44395H

BOLT, Stator

$

$

Currently unavailable

2

Briggs & Stratton 22694

HOUSING, Receptacle (White)
(Superseded to 22694GS)

$5.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 28293

RECTIFIER, Bridge

$

$

Currently unavailable

4

Briggs & Stratton 59636

SCREW (Plastite)- No. 4 x 3/8"

$

$

Currently unavailable

5

Briggs & Stratton 58885B

ROTOR ASSY

$

$

Currently unavailable

6

Briggs & Stratton 59606

BRUSH & LUG ASSY (Red)

$

$

Not available

6

Briggs & Stratton 59606A

BRUSH & LUG ASSY (Neutral)

$

$

Not available

7

Briggs & Stratton 24049

BEARING, Rotor

$

$

Not available

8

Briggs & Stratton 58886

WASHER, Fan Loading
(Superseded to 58886GS)

$5.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 58888

FAN, Cooling

$

$

Not available

10

Briggs & Stratton 71821

ROTOR & FAN ASSY

$

$

Currently unavailable

11

Briggs & Stratton 71823

STATOR ASSY

$

$

Currently unavailable

12

Briggs & Stratton 23484D

BUSHING, Snap- 0.87" diameter

$

$

Currently unavailable

13

Briggs & Stratton 22336

CAPSCREW, Hex Head - 5/16"-24 x 3/4"

$

$

Not available

14

Briggs & Stratton 22129

LOCKWASHER- 5/16"
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

15

Briggs & Stratton 60220F

HOUSING, Engine Adapter

$

$

Currently unavailable

16

Briggs & Stratton 22097

LOCKWASHER- 1/4"
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 61876

TRIM, Rubber - 3-1/2" long

$

$

Currently unavailable

18

Briggs & Stratton 24413

SCREW (Taptite)- No. 10-32 x 1/2"

$

$

Not available

19

Briggs & Stratton 60221

WASHER, Felt
(Superseded to 60221GS)

$6.49

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 45992

DIODE, Battery Charge
(Superseded to 5045992)

$11.99

$

In Stock, only 2 left!

0

21

Briggs & Stratton 23762

WASHER, External Shakeproof- No. 10
(Superseded to 23762GS)

$2.99

$

Usually ships in 2-12 days

0
