H4013 SA/A (MZAR) - Honda Lawn Tractor, Made in Japan (SN: MZAR-1000001 - MZAR-1999999) AIR CLEANER (H4013) Parts Diagram

Lawn Tractor, Made in Japan

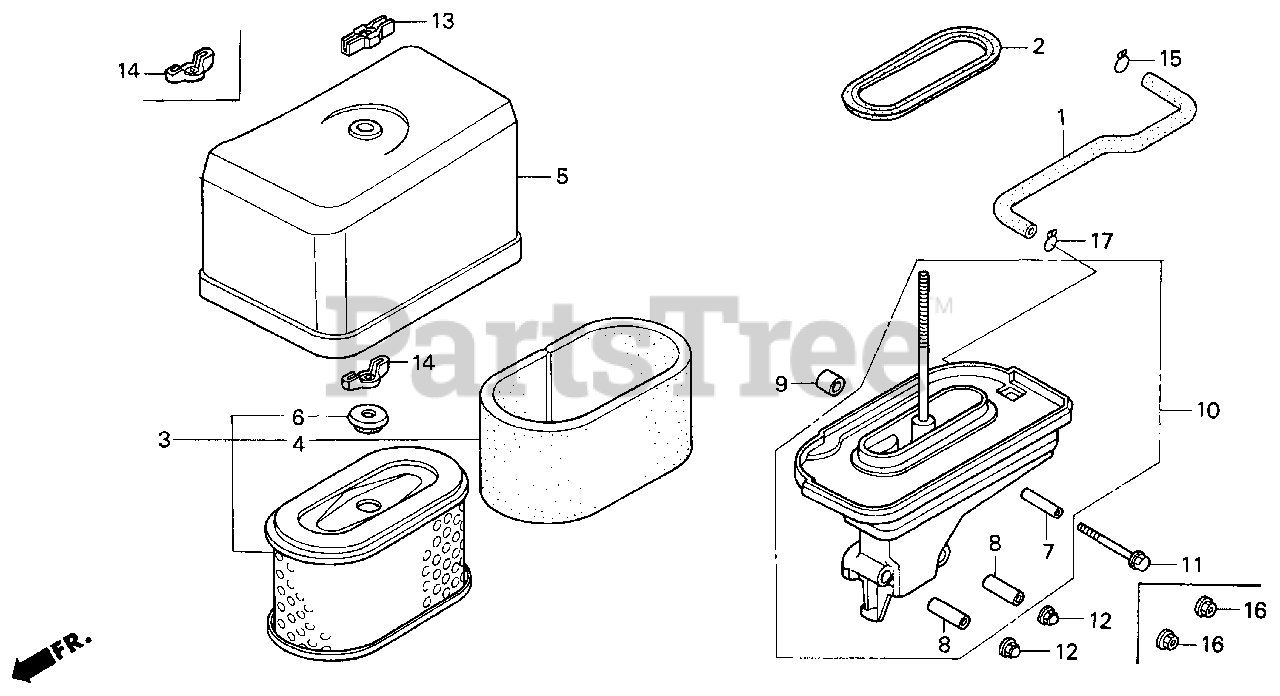

AIR CLEANER (H4013) Parts Diagram

  • Title

1

Honda 12315-ZF5-000

TUBE, BREATHER

$8.49

$

Usually ships in 3-6 days

0

2

Honda 16271-ZE8-000

GASKET, ELBOW

$4.49

$

In Stock, only 1 left!

0

3

Honda 17210-ZF5-505

SEE PART DETAILS - PRI; ELEMENT, AIR CLEANER (METAL BASE)
(Superseded to 17210-ZF5-010)

$24.99

$

Usually ships in 3-6 days

0

4

Honda 17218-ZF5-000

SEE PART DETAILS - SUP; FILTER (OUTER)

$

$

Not available

4

Honda 17218-ZF5-505

SEE PART DETAILS - PRI; FILTER (OUTER)
(Superseded to 17218-ZF5-305)

$9.49

$

In Stock, only 2 left!

0

5

Honda 17230-ZE8-013

COVER, AIR CLEANER (DUAL)

$33.99

$

Usually ships in 3-6 days

0

6

Honda 17232-891-000

GROMMET, AIR CLEANER

$5.49

$

In Stock, Qty 15

0

7

Honda 17238-ZE1-000

COLLAR, AIR CLEANER

$5.49

$

Usually ships in 3-6 days

0

8

Honda 17238-ZE2-310

COLLAR, AIR CLEANER

$4.49

$

In Stock, Qty 12

0

9

Honda 17239-ZF5-L10

SPACER, AIR CLEANER ELBOW

$5.49

$

Usually ships in 3-6 days

0

10

Honda 17410-ZE8-013

ELBOW, AIR CLEANER

$41.99

$

In Stock, only 1 left!

0

11

Honda 90014-888-000

BOLT, FLANGE (6X50)

$5.49

$

Usually ships in 3-6 days

0

12

Honda 90201-415-000

NUT, CAP (6MM)

Note: Use up to Engine SN 2019955.

$2.49

$

Usually ships in 3-6 days

0

13

Honda 90203-ZA0-800

WINGNUT (6MM)

Note: Use up to Engine SN 2056133.

$3.99

$

In Stock, only 1 left!

0

14

Honda 90325-044-000

WINGNUT, TOOL BOX SETTING

Note: Use up to Engine SN 2056133.

$5.49

$

In Stock, Qty 20+

0

14

Honda 90325-044-000

WINGNUT, TOOL BOX SETTING

Note: Use from Engine SN 2056134.

$5.49

$

In Stock, Qty 20+

0

15

Honda 90652-MB1-000

CLIP, TUBE

$1.49

$

In Stock, only 1 left!

0

16

Honda 94050-06000

NUT, FLANGE (6MM)

Note: Use from Engine SN 2019956.

$0.99

$

In Stock, Qty 20+

0

17

Honda 95002-70000

CLIP, TUBE (C11)

Note: Use up to Engine SN 2019955.

$1.99

$

In Stock, Qty 20+

0
