H4013 SA/A (MZAR) - Honda Lawn Tractor, Made in Japan (SN: MZAR-1000001 - MZAR-1999999) CLUTCH ARM (H4013) Parts Diagram

Lawn Tractor, Made in Japan

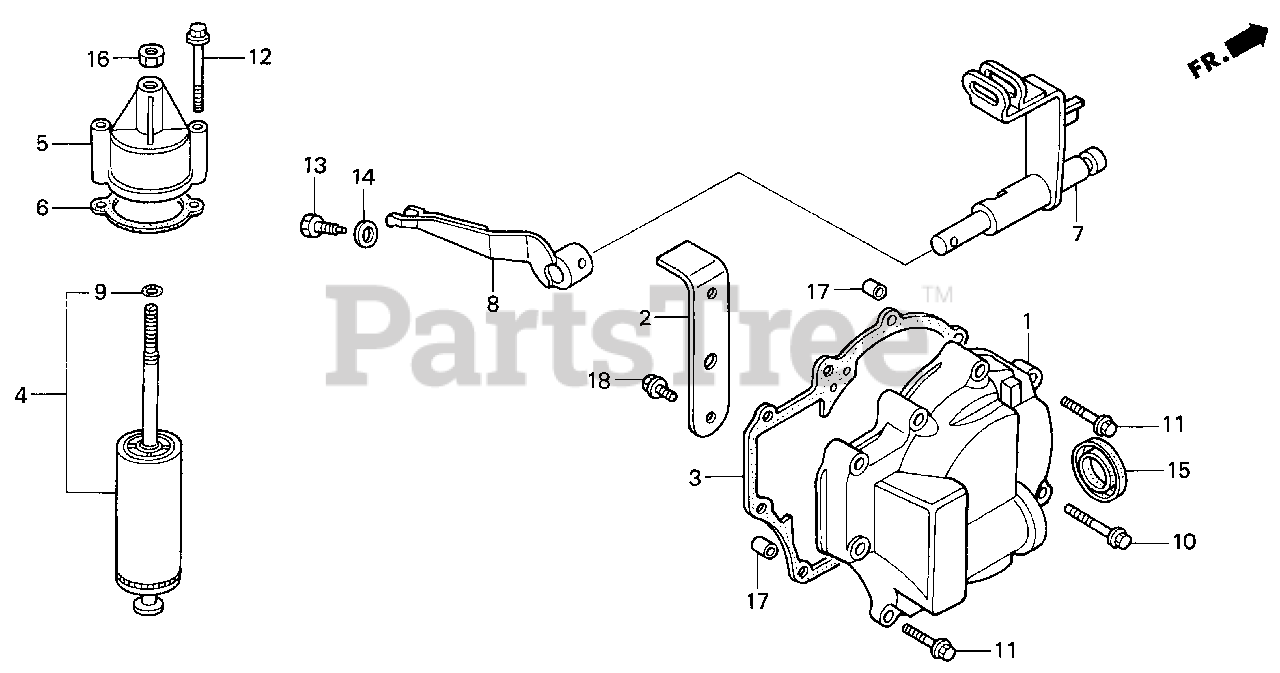

CLUTCH ARM (H4013) Parts Diagram

  • Title

1

Honda 21311-758-000

COVER, CLUTCH

$

$

Not available

2

Honda 21314-758-000

GUIDE, OIL

$

$

Not available

3

Honda 21315-758-010

GASKET, CLUTCH COVER

$

$

Not available

4

Honda 22710-758-003

DAMPER ASSY., CLUTCH

$

$

Not available

5

Honda 22711-758-000

BRACKET, DAMPER (UPPER)

$

$

Not available

6

Honda 22715-751-010

SEE PART DETAILS - PRI; GASKET, CLUTCH DAMPER

$6.99

$

Usually ships in 3-6 days

0

6

Honda 22715-758-010

GASKET, CLUTCH DAMPER

$4.99

$

Usually ships in 3-6 days

0

6

Honda 22715-763-A40

SEE PART DETAILS - SUP; GASKET, CLUTCH DAMPER

Note: Use up to Frame SN 1002938.

$

$

Currently unavailable

7

Honda 22811-758-010

SHAFT, CLUTCH

$

$

Not available

8

Honda 22826-758-000

ARM, DAMPER

$

$

Not available

9

Honda 52771-MB9-871

O-RING A (7.5X1.5)

$1.99

$

Usually ships in 3-6 days

0

10

Honda 90012-751-000

BOLT, FLANGE (6X40) (CT200)

$3.49

$

Usually ships in 3-6 days

0

11

Honda 90014-ZE6-000

BOLT, FLANGE (6X35)

$2.49

$

In Stock, Qty 6

0

12

Honda 90014-888-000

BOLT, FLANGE (6X50)

$5.49

$

Usually ships in 3-6 days

0

13

Honda 90029-611-010

SEE PART DETAILS - PRI; BOLT, SPECIAL (8X24)

$11.99

$

Usually ships in 3-6 days

0

14

Honda 90412-679-000

WASHER, CONICAL SPRING (8MM)

$6.49

$

Usually ships in 3-6 days

0

15

Honda 91214-GK1-004

OIL SEAL (26X34.5X5.5)

$6.99

$

Usually ships in 3-6 days

0

16

Honda 94030-08000

NUT, HEX. (8MM)

$1.49

$

Usually ships in 3-6 days

0

17

Honda 94301-08140

PIN A, DOWEL (8X14)

$2.99

$

In Stock, Qty 14

0

18

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$1.99

$

In Stock, Qty 20+

0
