H4013 SA/A (MZAR) - Honda Lawn Tractor, Made in Japan (SN: MZAR-1000001 - MZAR-1999999) CLUTCH (H4013) Parts Diagram

Lawn Tractor, Made in Japan

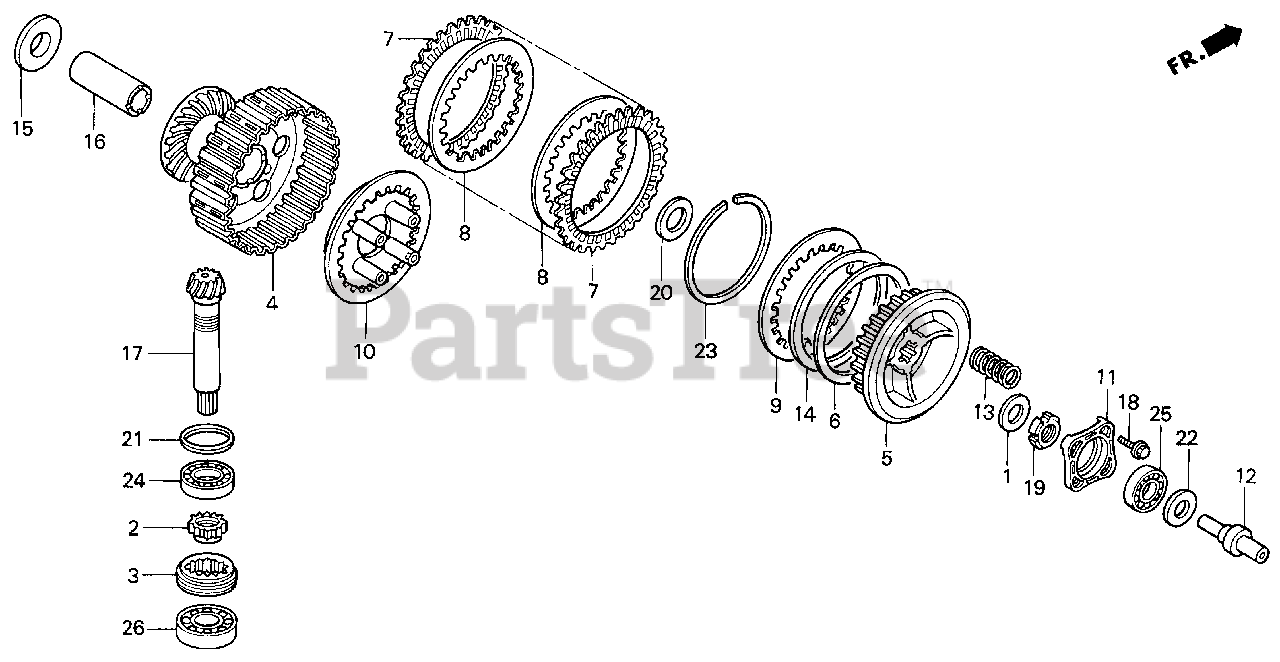

CLUTCH (H4013) Parts Diagram

  • Title

1

Honda 15451-107-000

WASHER, OIL FILTER ROTOR LOCKING

$5.49

$

Usually ships in 3-6 days

0

2

Honda 21212-750-000

NUT, LOCK (22MM)

$15.99

$

Usually ships in 3-6 days

0

3

Honda 21213-751-000

NUT, LOCK (48MM)

$25.99

$

Usually ships in 3-6 days

0

4

Honda 22100-758-000

CLUTCH (OUTER)

$

$

Not available

5

Honda 22121-763-A01

CENTER, CLUTCH

$

$

Not available

6

Honda 22125-KB4-670

SEAT, JUDDER SPRING

$11.99

$

Usually ships in 3-6 days

0

7

Honda 22201-758-003

DISK, CLUTCH FRICTION

$

$

Not available

8

Honda 22311-HE0-000

SEE PART DETAILS - PRI; PLATE, CLUTCH

$

$

Not available

9

Honda 22311-758-000

PLATE, CLUTCH

$

$

Not available

10

Honda 22350-751-013

PLATE, CLUTCH PRESSURE

$44.99

$

Usually ships in 3-6 days

0

11

Honda 22361-437-000

PLATE, CLUTCH LIFTER

$17.99

$

Usually ships in 3-6 days

0

12

Honda 22366-758-000

ROD, CLUTCH LIFTER

$

$

Not available

13

Honda 22401-758-000

SPRING, CLUTCH

$4.49

$

Usually ships in 3-6 days

0

14

Honda 22405-758-003

SPRING, CONED DISK

$20.99

$

Usually ships in 3-6 days

0

15

Honda 23326-758-000

SHIM A, MAINSHAFT (8.25MM)

$

$

Not available

15

Honda 23327-758-000

SHIM B, MAINSHAFT (8.30MM)

$

$

Not available

15

Honda 23328-758-000

SHIM C, MAINSHAFT (8.35MM)

$

$

Not available

15

Honda 23329-758-000

SHIM D, MAINSHAFT (8.40MM)

$

$

Not available

15

Honda 23330-758-000

SHIM E, MAINSHAFT (8.45MM)

$

$

Not available

15

Honda 23331-758-000

SHIM F, MAINSHAFT (8.50MM)

$

$

Not available

15

Honda 23332-758-000

SHIM G, MAINSHAFT (8.55MM)

$

$

Not available

15

Honda 23333-758-000

SHIM H, MAINSHAFT (8.60MM)

$

$

Not available

15

Honda 23334-758-000

SHIM I, MAINSHAFT (8.65MM)

$26.99

$

Usually ships in 3-6 days

0

15

Honda 23335-758-000

SHIM J, MAINSHAFT (8.70MM)

$

$

Not available

15

Honda 23336-758-000

SHIM K, MAINSHAFT (8.75MM)

$

$

Not available

16

Honda 23356-758-000

COLLAR, MAINSHAFT

$

$

Not available

17

Honda 41211-758-700

SHAFT, INPUT

$

$

Not available

18

Honda 90050-751-000

BOLT, SPECIAL FLANGE (6X28)

$2.99

$

Usually ships in 3-6 days

0

19

Honda 90231-KCS-651

SEE PART DETAILS - PRI; NUT, LOCK (16MM)

$5.49

$

In Stock, only 1 left!

0

20

Honda 90404-KK0-000

WASHER (20X37X2)

$4.99

$

Usually ships in 3-6 days

0

21

Honda 90510-751-000

SHIM A, PINION GEAR (36X43.5X1.25)

$12.99

$

Usually ships in 3-6 days

0

21

Honda 90511-751-000

SHIM B, PINION GEAR (36X43.5X1.30)

$12.99

$

Usually ships in 3-6 days

0

21

Honda 90512-751-000

SHIM C, PINION GEAR (36X43.5X1.35)

$12.99

$

Usually ships in 3-6 days

0

21

Honda 90513-751-000

SHIM D, PINION GEAR (36X43.5X1.40)

$11.99

$

Usually ships in 3-6 days

0

21

Honda 90514-751-000

SHIM E, PINION GEAR (36X43.5X1.45)

$11.99

$

Usually ships in 3-6 days

0

21

Honda 90515-751-000

SHIM F, PINION GEAR (36X43.5X1.50)

$12.99

$

Usually ships in 3-6 days

0

21

Honda 90516-751-000

SHIM G, PINION GEAR (36X43.5X1.55)

$

$

Not available

21

Honda 90517-751-000

SHIM H, PINION GEAR (36X43.5X1.60)

$11.99

$

Usually ships in 3-6 days

0

21

Honda 90518-751-000

SHIM I, PINION GEAR (36X43.5X1.65)

$11.99

$

Usually ships in 3-6 days

0

21

Honda 90519-751-000

SHIM J, PINION GEAR (36X43.5X1.70)

$11.99

$

Usually ships in 3-6 days

0

21

Honda 90520-751-000

SHIM K, PINION GEAR (36X43.5X1.75)

$

$

Not available

22

Honda 90510-758-000

SHIM A, CLUTCH LIFTER (1.0MM)

$

$

Not available

22

Honda 90511-758-000

SHIM B, CLUTCH LIFTER (1.2MM)

$

$

Not available

22

Honda 90512-758-000

SHIM C, CLUTCH LIFTER (1.4MM)

$

$

Not available

22

Honda 90513-758-000

SHIM D, CLUTCH LIFTER (1.6MM)

$

$

Not available

22

Honda 90514-758-000

SHIM E, CLUTCH LIFTER (1.8MM)

$

$

Not available

22

Honda 90515-758-000

SHIM F, CLUTCH LIFTER (2.0MM)

$8.99

$

Usually ships in 3-6 days

0

22

Honda 90516-758-000

SHIM G, CLUTCH LIFTER (2.2MM)

$

$

Not available

22

Honda 90517-758-000

SHIM H, CLUTCH LIFTER (2.4MM)

$

$

Not available

22

Honda 90518-758-000

SHIM I, CLUTCH LIFTER (2.6MM)

$

$

Not available

22

Honda 90519-758-000

SHIM J, CLUTCH LIFTER (2.8MM)

$

$

Not available

22

Honda 90520-758-000

SHIM K, CLUTCH LIFTER (3.0MM)

$

$

Not available

23

Honda 90609-355-000

SET-RING, SPECIAL (82.5MM) (NOT AVAILABLE)

$

$

Currently unavailable

24

Honda 91003-GE0-003

SEE PART DETAILS - SUP; BEARING, RADIAL BALL (60/22)
(Superseded to 91003-751-701)

$

$

Not available

24

Honda 91003-751-701

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (60/22) (TMB)

$

$

Not available

25

Honda 91011-KK6-013

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (16003)

$18.99

$

In Stock, only 1 left!

0

26

Honda 96100-62040-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6204)

$15.99

$

In Stock, only 2 left!

0
