H4013 SA/A (MZAR) - Honda Lawn Tractor, Made in Japan (SN: MZAR-1000001 - MZAR-1999999) CUTTER HOUSING (H4013) Parts Diagram

Lawn Tractor, Made in Japan

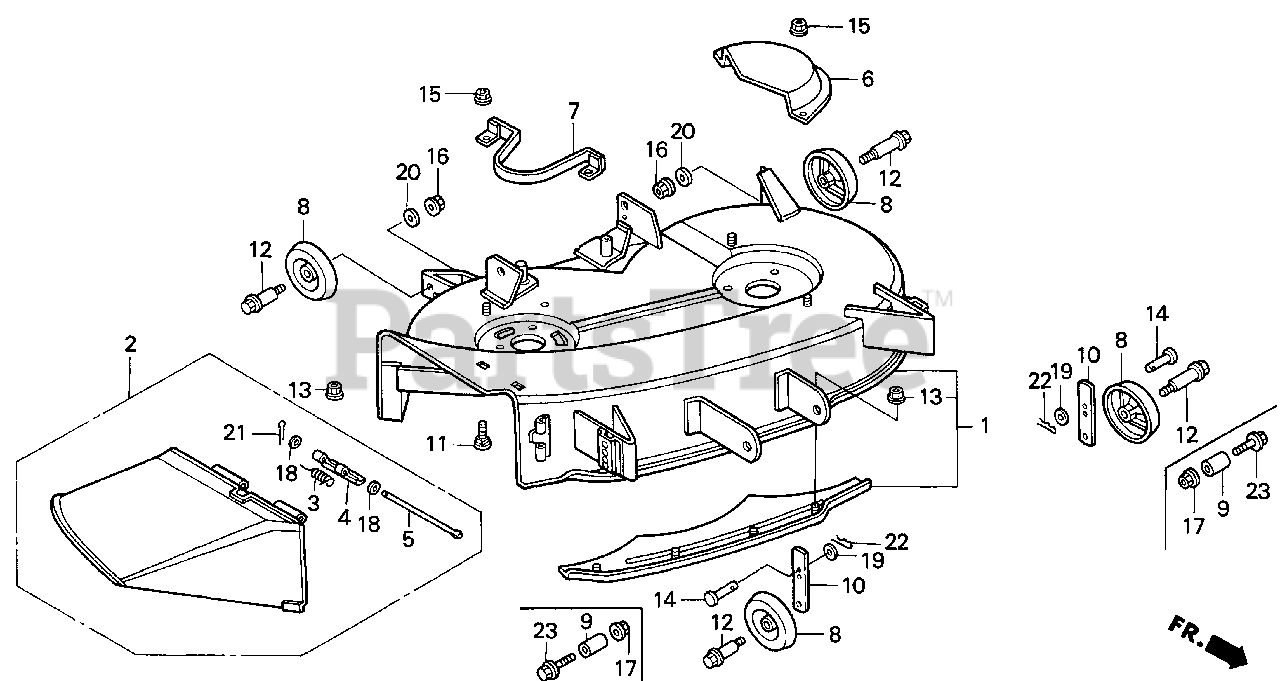

CUTTER HOUSING (H4013) Parts Diagram

  • Title

1

Honda 76110-758-L02

HOUSING, CUTTER

$1018.99

$

Usually ships in 3-6 days

0

2

Honda 76150-758-L01

ADAPTER, DISCHARGE

$

$

Not available

3

Honda 76152-758-L00

SPRING, DISCHARGE ADAPTER

$5.99

$

Usually ships in 3-6 days

0

4

Honda 76153-758-L00

HINGE, DISCHARGE ADAPTER

$

$

Not available

5

Honda 76154-758-L00

PIN, DISCHARGE ADAPTER (NA USE ALT:06814-V09-A01)

$

$

Currently unavailable

6

Honda 76156-758-L00

COVER, L. BELT

$

$

Not available

7

Honda 76183-758-L00

SEE PART DETAILS - SUP; STOPPER, BELT
(Superseded to 76183-758-L21)

$34.99

$

Usually ships in 3-6 days

0

8

Honda 76231-763-A00

ROLLER, ANTI-SCALP

$22.99

$

Usually ships in 3-6 days

0

9

Honda 76232-758-L00

COLLAR, ANTI-SCALP ROLLER (12.7X15.9X39.5)

Note: Use from Frame SN 1002451.

$

$

Not available

10

Honda 76285-758-L01

ARM, ROLLER

Note: Use up to Frame SN 1002450.

$

$

Not available

10

Honda 76285-758-L02

ARM, ROLLER

Note: Use from Frame SN 1002451.

$

$

Not available

11

Honda 90101-963-000

BOLT, SPECIAL (9X15)

$3.99

$

Usually ships in 3-6 days

0

12

Honda 90105-751-000

BOLT, ANTI-SCALP ROLLER

Note: Use up to Frame SN 1002450.

$13.99

$

In Stock, only 1 left!

0

12

Honda 90105-751-000

BOLT, ANTI-SCALP ROLLER

Note: Use from Frame SN 1002451.

$13.99

$

In Stock, only 1 left!

0

13

Honda 90309-428-731

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

Note: Use up to Frame SN 1002450.

$4.49

$

In Stock, Qty 10

0

13

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

Note: Use from Frame SN 1002451.

$1.49

$

In Stock, Qty 20+

0

14

Honda 90755-758-L00

PIN, ROLLER ARM (8X22)

$3.99

$

Usually ships in 3-6 days

0

15

Honda 94050-08080

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

16

Honda 94050-10080

NUT, FLANGE (10MM)

$3.99

$

In Stock, Qty 20+

0

17

Honda 94050-12080

NUT, FLANGE (12MM)

Note: Use from Frame SN 1002451.

$2.99

$

Usually ships in 3-6 days

0

18

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

19

Honda 94101-08800

SEE PART DETAILS - SUP; WASHER, PLAIN (8MM)

Note: Use up to Frame SN 1002450.

$2.49

$

In Stock, only 4 left!

0

20

Honda 94103-10000

WASHER, FLAT (10MM)

Note: Use up to Frame SN 1002450.

$0.99

$

Usually ships in 3-6 days

0

21

Honda 94201-20150

PIN, COTTER (2.0X15)

$1.49

$

In Stock, only 2 left!

0

22

Honda 90651-703-000

PIN, SNAP (7MM)

Note: Use from Frame SN 1001031.

$1.49

$

In Stock, Qty 20+

0

22

Honda 94251-08000

PIN, LOCK (8MM)

Note: Use up to Frame SN 1001030.

$1.49

$

In Stock, Qty 20+

0

23

Honda 95701-12060-08

BOLT, FLANGE (12X60)

Note: Use from Frame SN 1002451.

$3.99

$

Usually ships in 3-6 days

0
