H4013 SA/A (MZAR) - Honda Lawn Tractor, Made in Japan (SN: MZAR-1000001 - MZAR-1999999) MAINSHAFT (H4013) Parts Diagram

Lawn Tractor, Made in Japan

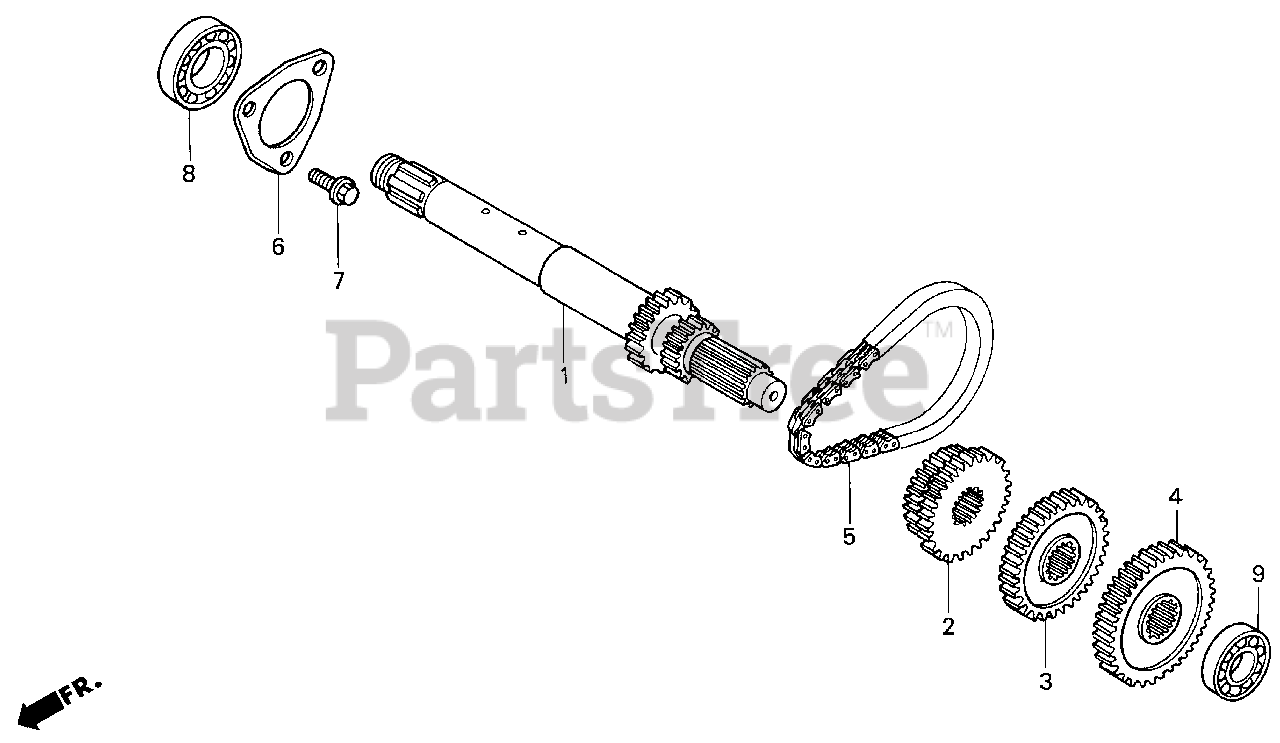

MAINSHAFT (H4013) Parts Diagram

  • Title

1

Honda 23211-758-000

MAINSHAFT

$181.99

$

Usually ships in 3-6 days

0

2

Honda 23421-758-700

GEAR, MAINSHAFT SECOND & THIRD (30/23T)

$

$

Not available

3

Honda 23441-758-700

GEAR, MAINSHAFT FOURTH (34T)

$

$

Not available

4

Honda 23451-758-000

GEAR, MAINSHAFT FIFTH (37T)

$

$

Not available

5

Honda 23865-758-000

CHAIN, REVERSE

Note: Use up to Frame SN 1002938.

$81.99

$

Usually ships in 3-6 days

0

5

Honda 23865-758-003

CHAIN, REVERSE (SC-A-0412-52)

Note: Use from Frame SN 1002939.

$

$

Not available

6

Honda 24551-758-000

HOLDER, BEARING

$

$

Not available

7

Honda 95701-06016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16)

$1.99

$

In Stock, Qty 20+

0

8

Honda 96100-60040-00

BEARING, RADIAL BALL (6004)

$19.99

$

In Stock, only 1 left!

0

9

Honda 96100-62020-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6202)

$11.99

$

In Stock, only 1 left!

0
