H4013 SA/B (MZAR) - Honda Lawn Tractor, Made in Japan (SN: MZAR-2000001 - MZAR-2999999) DIFFERENTIAL GEAR (H4013) Parts Diagram

Lawn Tractor, Made in Japan

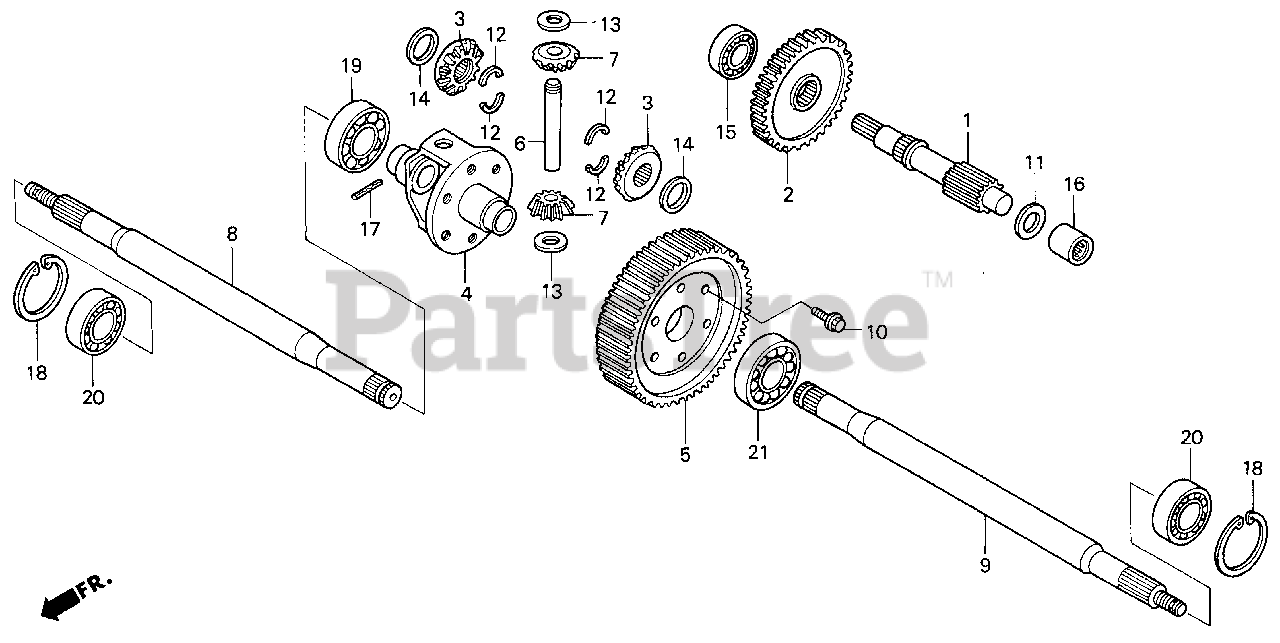

DIFFERENTIAL GEAR (H4013) Parts Diagram

  • Title

1

Honda 23214-758-000

COUNTERSHAFT

$

$

Not available

2

Honda 23612-758-010

GEAR, COUNTERSHAFT DRIVEN (52T)

$

$

Not available

3

Honda 41241-758-000

GEAR, DIFFERENTIAL

$91.99

$

Usually ships in 3-6 days

0

4

Honda 41311-758-000

CASE, DIFFERENTIAL GEAR

$

$

Not available

5

Honda 41312-758-000

GEAR, FINAL DRIVEN (59T)

$

$

Not available

6

Honda 41321-751-000

SHAFT, DIFFERENTIAL

$24.99

$

Usually ships in 3-6 days

0

7

Honda 41341-751-000

PINION, DIFFERENTIAL

$82.99

$

Usually ships in 3-6 days

0

8

Honda 42311-758-701

SHAFT, R. AXLE

$

$

Not available

9

Honda 42321-758-701

SHAFT, L. AXLE

$

$

Not available

10

Honda 90113-750-000

BOLT, SPECIAL (10X20)

$5.49

$

Usually ships in 3-6 days

0

11

Honda 90455-751-000

WASHER, THRUST (18MM)

$14.99

$

Usually ships in 3-6 days

0

12

Honda 90502-751-700

COTTER (15MM)

$15.99

$

Usually ships in 3-6 days

0

13

Honda 90521-751-000

WASHER A, DIFFERENTIAL PINION (14.2X26X0.7)

$5.99

$

Usually ships in 3-6 days

0

13

Honda 90522-751-000

WASHER B, DIFFERENTIAL PINION (14.2X26X0.8)

$5.99

$

Usually ships in 3-6 days

0

13

Honda 90523-751-000

WASHER C, DIFFERENTIAL PINION (14.2X26X0.9)

$5.99

$

Usually ships in 3-6 days

0

13

Honda 90524-751-000

WASHER D, DIFFERENTIAL PINION (14.2X26X1.0)

$5.99

$

Usually ships in 3-6 days

0

14

Honda 90525-752-000

WASHER, DIFFERENTIAL GEAR

$8.99

$

Usually ships in 3-6 days

0

15

Honda 91003-GE0-003

SEE PART DETAILS - SUP; BEARING, RADIAL BALL (60/22)
(Superseded to 91003-751-701)

$

$

Not available

15

Honda 91003-751-701

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (60/22) (TMB)

$

$

Not available

16

Honda 91051-758-003

BEARING, NEEDLE (18X25X17)

$19.99

$

Usually ships in 3-6 days

0

17

Honda 94305-40322

PIN, SPRING (4X32)

$3.49

$

In Stock, only 1 left!

0

18

Honda 94520-52000

CIRCLIP (INNER) (52MM)

$4.49

$

Usually ships in 3-6 days

0

19

Honda 96100-60060-00

BEARING, RADIAL BALL (6006)

$19.99

$

Usually ships in 3-6 days

0

20

Honda 96100-62050-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6205)

$28.99

$

In Stock, Qty 8

0

21

Honda 96100-62060-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6206)

$22.99

$

In Stock, only 2 left!

0
