H4013 SAN/D (MZAR) - Honda Lawn Tractor, Made in Japan (SN: MZAR-4000001 - MZAR-4099999) FLYWHEEL (H4013) Parts Diagram

Lawn Tractor, Made in Japan

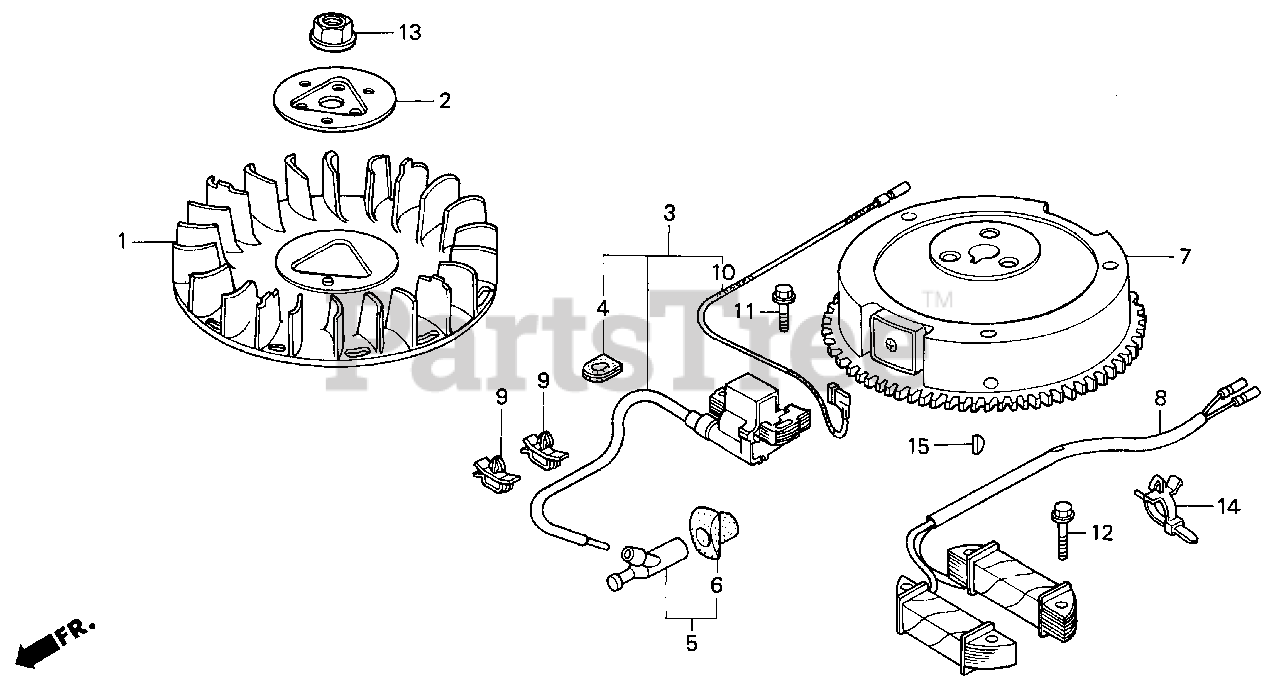

FLYWHEEL (H4013) Parts Diagram

  • Title

1

Honda 19511-ZE9-010

FAN, COOLING
(Superseded to 19511-ZE9-020)

$10.99

$

In Stock, only 1 left!

0

2

Honda 19512-ZE2-000

PLATE, COOLING FAN SETTING

$12.99

$

In Stock, only 1 left!

0

3

Honda 30500-ZF5-L13

SEE PART DETAILS - SUP; COIL ASSY., IGNITION
(Superseded to 30500-ZF5-L14)

$

$

Not available

3

Honda 30500-ZF5-L14

SEE PART DETAILS - PRI; COIL ASSY., IGNITION

$

$

Not available

4

Honda 30563-ZE8-000

GROMMET, IGNITION

$6.99

$

Usually ships in 3-6 days

0

5

Honda 30600-ZF5-L12

TERMINAL ASSY., IGNITION

$27.99

$

Usually ships in 3-6 days

0

6

Honda 30605-ZF5-L11

SEAL, IGNITION TERMINAL

$15.99

$

Usually ships in 3-6 days

0

7

Honda 31100-ZE9-804

FLYWHEEL

$

$

Not available

8

Honda 31630-ZF5-L11

COIL ASSY., CHARGE (10A)

$204.99

$

Usually ships in 3-6 days

0

9

Honda 32161-393-003

CLIP, WIRE HARNESS

$4.49

$

Usually ships in 3-6 days

0

10

Honda 36101-ZF5-L11

WIRE, STOP SWITCH

$15.99

$

Usually ships in 3-6 days

0

11

Honda 90015-883-000

BOLT, FLANGE (6X28)

$4.49

$

In Stock, Qty 20+

0

12

Honda 90031-ZE1-000

BOLT, FLANGE (6X32)

$4.49

$

In Stock, only 2 left!

0

13

Honda 90201-ZE3-V00

NUT, SPECIAL (16MM) (1)

Note: Use from Engine SN 2063198.

$11.99

$

Usually ships in 3-6 days

0

13

Honda 90201-ZE3-790

SEE PART DETAILS - PRI; NUT, SPECIAL (16MM)

Note: Use up to Engine SN 2063197.

$12.99

$

In Stock, only 2 left!

0

14

Honda 90649-SC2-003

BAND, WIRE HARNESS (WHITE)

Note: Use up to Engine SN 2061390.

$9.99

$

Usually ships in 3-6 days

0

14

Honda 90682-735-A01

CLIP, WIRE HARNESS

Note: Use from Engine SN 2061391.

$3.49

$

Usually ships in 3-6 days

0

15

Honda 90741-ZE2-000

KEY, SPECIAL WOODRUFF (25X18)

$4.49

$

In Stock, Qty 10

0
