H4514 H HSA/C (MZAS) - Honda Lawn Tractor, Made in Japan (SN: MZAS-3000001 - MZAS-3999999) SUB-TRANSMISSION Parts Diagram

Lawn Tractor, Made in Japan

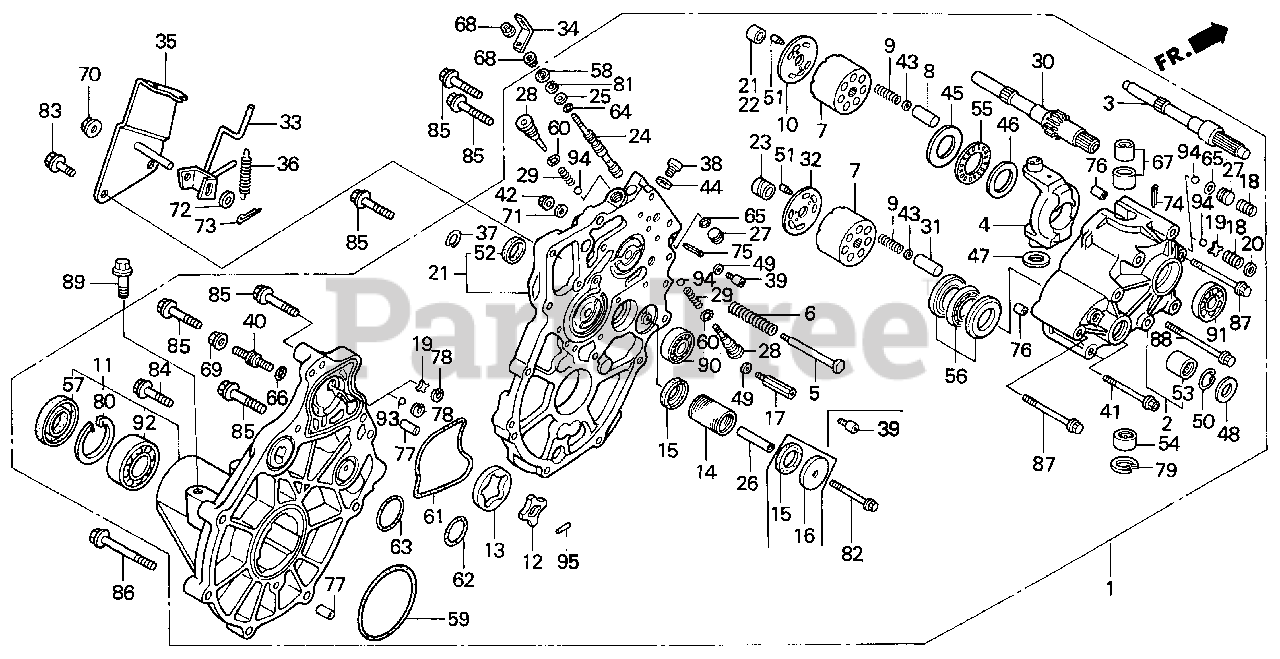

SUB-TRANSMISSION Parts Diagram

  • Title

1

Honda 20006-VD6-801

TRANSMISSION SUB-ASSY. (H.S.T.)

$1404.99

$

Usually ships in 3-6 days

0

2

Honda 25310-VD6-010

CASE, PUMP

$269.99

$

Usually ships in 3-6 days

0

3

Honda 25321-VD6-801

SHAFT, PUMP

$133.99

$

Usually ships in 3-6 days

0

4

Honda 25330-VD6-000

BOWL, PUMP CONTROL

$185.99

$

Usually ships in 3-6 days

0

5

Honda 25333-VD6-000

SHAFT, RETURN

$15.99

$

Usually ships in 3-6 days

0

6

Honda 25334-VD6-800

SPRING, RETURN

$3.99

$

Usually ships in 3-6 days

0

7

Honda 25341-VD6-800

CYLINDER, PUMP

$88.99

$

Usually ships in 3-6 days

0

8

Honda 25342-VD6-000

PISTON, PUMP

$10.99

$

Usually ships in 3-6 days

0

9

Honda 25343-VD6-000

SPRING, PISTON

$2.99

$

Usually ships in 3-6 days

0

10

Honda 25344-VD6-800

PLATE, PUMP CYLINDER

$34.99

$

Usually ships in 3-6 days

0

11

Honda 25410-VD6-803

CASE, CHARGE PUMP

$274.99

$

Usually ships in 3-6 days

0

12

Honda 25411-VD6-003

ROTOR, TROCHOID

$16.99

$

Usually ships in 3-6 days

0

13

Honda 25415-VD6-003

VANE, TROCHOID

$27.99

$

Usually ships in 3-6 days

0

14

Honda 25421-VD6-003

FILTER, SUCTION

$

$

Not available

15

Honda 25422-VD6-000

CAP, FILTER GUIDE

$8.49

$

Usually ships in 3-6 days

0

17

Honda 25430-VD6-801

VALVE ASSY., RELIEF

$41.99

$

Usually ships in 3-6 days

0

18

Honda 25431-VD6-010

SPRING, RELIEF VALVE

$1.99

$

Usually ships in 3-6 days

0

21

Honda 25510-VD6-800

PLATE, DISTRIBUTOR

$776.99

$

Usually ships in 3-6 days

0

22

Honda 25512-VD6-003

BUSH, PUMP SHAFT

$13.99

$

Usually ships in 3-6 days

0

23

Honda 25514-VD6-000

BUSH, MOTOR SHAFT

$17.99

$

Usually ships in 3-6 days

0

24

Honda 25521-VD6-800

SPOOL, NEUTRAL VALVE

$

$

Not available

25

Honda 25522-VD6-000

COLLAR, NEUTRAL VALVE

$6.49

$

Usually ships in 3-6 days

0

26

Honda 25523-VD6-010

COLLAR, FILTER SETTING

$8.49

$

Usually ships in 3-6 days

0

27

Honda 25524-VD6-000

CAP, NEUTRAL VALVE

$6.49

$

Usually ships in 3-6 days

0

28

Honda 25525-VD6-000

BOLT, CHECK VALVE

$19.99

$

Usually ships in 3-6 days

0

29

Honda 25526-VD6-000

SPRING, CHECK VALVE

$1.99

$

Usually ships in 3-6 days

0

30

Honda 25721-VD6-800

SHAFT, MOTOR

$168.99

$

Usually ships in 3-6 days

0

31

Honda 25742-VD6-000

PISTON, MOTOR

$10.99

$

Usually ships in 3-6 days

0

32

Honda 25744-VD6-800

PLATE, MOTOR CYLINDER

$33.99

$

Usually ships in 3-6 days

0

33

Honda 46920-758-040

LEVER, NEUTRAL VALVE

$22.99

$

Usually ships in 3-6 days

0

34

Honda 46921-758-010

PLATE, NEUTRAL VALVE

$5.99

$

Usually ships in 3-6 days

0

35

Honda 46922-758-020

BRACKET, NEUTRAL LEVER

$25.99

$

Usually ships in 3-6 days

0

36

Honda 46923-758-000

SPRING, NEUTRAL VALVE LEVER

$3.99

$

Usually ships in 3-6 days

0

37

Honda 51439-439-930

RING, PISTON STOPPER

$3.99

$

Usually ships in 3-6 days

0

38

Honda 90101-VD6-003

BOLT, SPECIAL (10X13)

$5.49

$

Usually ships in 3-6 days

0

39

Honda 90108-VD6-000

BOLT, SPECIAL (8X9)

$4.49

$

Usually ships in 3-6 days

0

40

Honda 90116-VD6-800

BOLT, ADJUSTING (6X33)

$9.99

$

Usually ships in 3-6 days

0

41

Honda 90154-KB7-700

BOLT, FLANGE (8X73)

$27.99

$

Usually ships in 3-6 days

0

42

Honda 90301-473-003

NUT, U (6MM)

$5.49

$

Usually ships in 3-6 days

0

43

Honda 90503-VD6-000

WASHER, PISTON (5MM)

$2.49

$

Usually ships in 3-6 days

0

44

Honda 90505-VD6-000

WASHER, SEALING (10MM)

$3.49

$

Usually ships in 3-6 days

0

45

Honda 90506-VD6-003

BEARING, PLATE

$27.99

$

Usually ships in 3-6 days

0

46

Honda 90507-VD6-003

PLATE, NEEDLE BEARING

$20.99

$

Usually ships in 3-6 days

0

47

Honda 90538-VD6-000

WASHER (20.5X32X3)

$10.99

$

Usually ships in 3-6 days

0

48

Honda 90539-VD6-000

WASHER, THRUST (17.5MM)

$

$

Not available

49

Honda 90540-VD6-000

WASHER, SEALING (8MM)

$3.49

$

Usually ships in 3-6 days

0

50

Honda 90660-VD6-000

CLIP, BEARING

$3.99

$

Usually ships in 3-6 days

0

51

Honda 90754-VD6-000

PIN, DOWEL (4X3)

$4.49

$

Usually ships in 3-6 days

0

52

Honda 90871-VD6-801

PLUG, SEAL (31X6)

$6.99

$

Usually ships in 3-6 days

0

53

Honda 91002-GG2-003

BEARING, NEEDLE (17X24X15)

$21.99

$

Usually ships in 3-6 days

0

54

Honda 91014-HA7-671

BEARING, NEEDLE (20MM)

$

$

Not available

55

Honda 91055-VD6-003

BEARING, THRUST ROLLER

$33.99

$

Usually ships in 3-6 days

0

56

Honda 91067-VD6-003

BEARING, THRUST BALL

$86.99

$

Usually ships in 3-6 days

0

57

Honda 91251-758-003

SEE PART DETAILS - PRI; OIL SEAL (25X52X7)

$

$

Not available

58

Honda 91256-VD6-003

DUST SEAL (5X14X3)

$

$

Not available

59

Honda 91314-MJ0-000

SEE PART DETAILS - SUP; O-RING (3X70)
(Superseded to 91314-MG7-003)

$11.99

$

Usually ships in 3-6 days

0

60

Honda 91353-VD6-003

SEE PART DETAILS - PRI; O-RING (11.8X2.4)

$1.99

$

Usually ships in 3-6 days

0

61

Honda 91359-VD6-003

O-RING (2.4)

$5.99

$

Usually ships in 3-6 days

0

62

Honda 91360-VD6-003

O-RING (22.5X2.4)

$1.99

$

Usually ships in 3-6 days

0

63

Honda 91361-VD6-003

O-RING (34X2.4)

$2.99

$

Usually ships in 3-6 days

0

64

Honda 91362-VD6-000

O-RING (6.8X1.9) (P7)

$1.49

$

Usually ships in 3-6 days

0

65

Honda 91363-VD6-003

SEE PART DETAILS - SUP; O-RING (P9)
(Superseded to 91302-GE0-000)

$4.99

$

In Stock, only 4 left!

0

66

Honda 91363-VD6-801

SEE PART DETAILS - SUP; O-RING (4.8X1.9)

$

$

Currently unavailable

67

Honda 91556-VD6-801

SEE PART DETAILS - PRI; COLLAR, CONTROL BOWL

$

$

Not available

68

Honda 94050-05000

NUT, FLANGE (5MM)

$1.99

$

In Stock, Qty 20+

0

69

Honda 94050-06080

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 12

0

70

Honda 94050-08080

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

71

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

72

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

73

Honda 94201-20120

PIN, COTTER (2.0X12)

$1.49

$

In Stock, Qty 7

0

74

Honda 94201-30450

PIN, COTTER (3.0X45)

$1.49

$

In Stock, Qty 7

0

75

Honda 94201-40300

SEE PART DETAILS - PRI; PIN, COTTER (4.0X30)

$1.49

$

In Stock, Qty 5

0

76

Honda 94301-06100

PIN A, DOWEL (6X10)

$2.99

$

Usually ships in 3-6 days

0

77

Honda 94301-08140

PIN A, DOWEL (8X14)

$2.99

$

In Stock, Qty 14

0

78

Honda 94520-12000

CIRCLIP (INNER) (12MM)

$0.99

$

Usually ships in 3-6 days

0

79

Honda 94520-28000

CIRCLIP (INNER) (28MM)

$1.49

$

Usually ships in 3-6 days

0

80

Honda 94520-52000

CIRCLIP (INNER) (52MM)

$3.99

$

Usually ships in 3-6 days

0

81

Honda 94524-14000

CIRCLIP (INNER) (14MM)

$1.49

$

Usually ships in 3-6 days

0

82

Honda 95701-06075-08

BOLT, FLANGE (6X75)

$2.99

$

Usually ships in 3-6 days

0

83

Honda 95701-08010-08

BOLT, FLANGE (8X10)

$1.49

$

Usually ships in 3-6 days

0

84

Honda 95701-08035-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X35)

$1.99

$

Usually ships in 3-6 days

0

85

Honda 95701-08040-08

BOLT, FLANGE (8X40)

$2.99

$

Usually ships in 3-6 days

0

86

Honda 95701-08065-08

BOLT, FLANGE (8X65)

$3.49

$

Usually ships in 3-6 days

0

87

Honda 95701-08080-08

BOLT, FLANGE (8X80)

$3.49

$

Usually ships in 3-6 days

0

88

Honda 95701-08095-08

BOLT, FLANGE (8X95)

$

$

Not available

89

Honda 95701-10025-08

BOLT, FLANGE (10X25)

$2.99

$

Usually ships in 3-6 days

0

90

Honda 96100-60040-00

BEARING, RADIAL BALL (6004)

$19.99

$

In Stock, only 1 left!

0

91

Honda 96100-62030-00

BEARING, RADIAL BALL (6203)

$10.99

$

Usually ships in 3-6 days

0

92

Honda 96100-62050-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6205)

$22.99

$

In Stock, only 1 left!

0

93

Honda 96211-10000

BALL, STEEL (#10) (5/16)

$1.99

$

Usually ships in 3-6 days

0

94

Honda 96211-13000

BALL, STEEL (#13) (13/32)

$0.99

$

Usually ships in 3-6 days

0

95

Honda 96220-30168

ROLLER (3X16.8)

$0.99

$

Usually ships in 3-6 days

0
