H4518 H HSA/B (MZAT) - Honda Lawn Tractor, Made in Japan (SN: MZAT-2000001 - MZAT-2999999) TENSIONER PULLEY (H4514H, H4518H) Parts Diagram

Lawn Tractor, Made in Japan

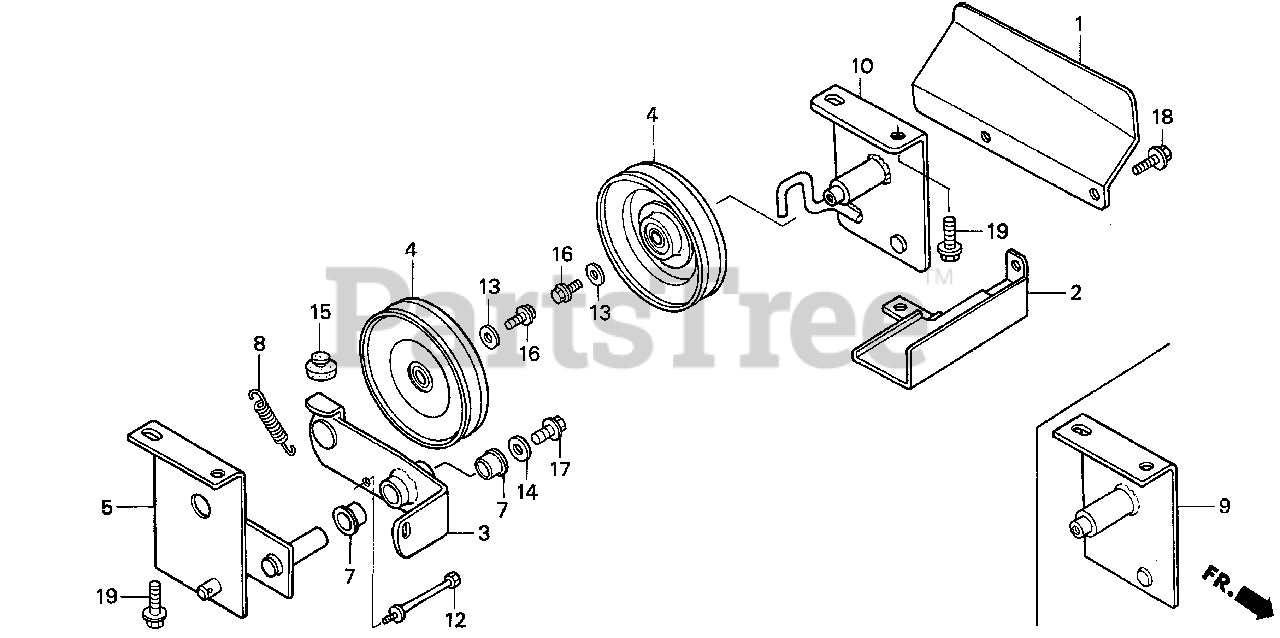

TENSIONER PULLEY (H4514H, H4518H) Parts Diagram

  • Title

1

Honda 50171-758-800

COVER, FRAME (LOWER)

Note: Use from Frame SN 2000872.

$

$

Not available

2

Honda 53451-758-000

COVER, SIDE

Note: Use from Frame SN 2000872.

$43.99

$

Usually ships in 3-6 days

0

3

Honda 75520-758-800

SEE PART DETAILS - SUP; ARM, TENSIONER

$

$

Not available

4

Honda 75560-758-000

SEE PART DETAILS - SUP; PULLEY, TENSIONER
(Superseded to 75560-758-020)

Note: Use up to Frame SN 2001440.

$90.99

$

In Stock, only 2 left!

0

4

Honda 75560-758-010

SEE PART DETAILS - SUP; PULLEY, TENSIONER
(Superseded to 75560-758-020)

$90.99

$

In Stock, only 2 left!

0

4

Honda 75560-758-020

SEE PART DETAILS - PRI; PULLEY, TENSIONER

$90.99

$

In Stock, only 2 left!

0

5

Honda 75571-758-000

BRACKET, R. ROLLER

$143.99

$

Usually ships in 3-6 days

0

7

Honda 75572-750-000

BUSH (17X23X19)

$

$

Not available

8

Honda 76122-758-J01

SPRING, TENSIONER

$

$

Not available

9

Honda 75576-758-010

BRACKET, L. ROLLER

Note: Use up to Frame SN 2000689.

$

$

Not available

10

Honda 75576-758-610

BRACKET, L. ROLLER

Note: Use from Frame SN 2000690.

$

$

Not available

12

Honda 90109-751-000

BOLT, BELT STOPPER

$6.99

$

Usually ships in 3-6 days

0

13

Honda 90453-752-830

WASHER (6MM)

$5.99

$

Usually ships in 3-6 days

0

14

Honda 94103-08800

WASHER, PLAIN (8MM)

$1.49

$

In Stock, Qty 8

0

15

Honda 95011-62000

RUBBER B, STAND STOPPER

$1.99

$

Usually ships in 3-6 days

0

16

Honda 95701-06016-08

BOLT, FLANGE (6X16)

$2.49

$

In Stock, only 4 left!

0

17

Honda 95701-08014-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X14)

$2.99

$

Usually ships in 3-6 days

0

18

Honda 95701-10022-08

BOLT, FLANGE (10X22)

$3.49

$

Usually ships in 3-6 days

0

19

Honda 95701-10020-08

BOLT, FLANGE (10X20)

$3.49

$

In Stock, only 2 left!

0
