H4518 H HSA/C (MZAT) - Honda Lawn Tractor, Made in Japan (SN: MZAT-3000001 - MZAT-3999999) FLYWHEEL (H4518H) Parts Diagram

Lawn Tractor, Made in Japan

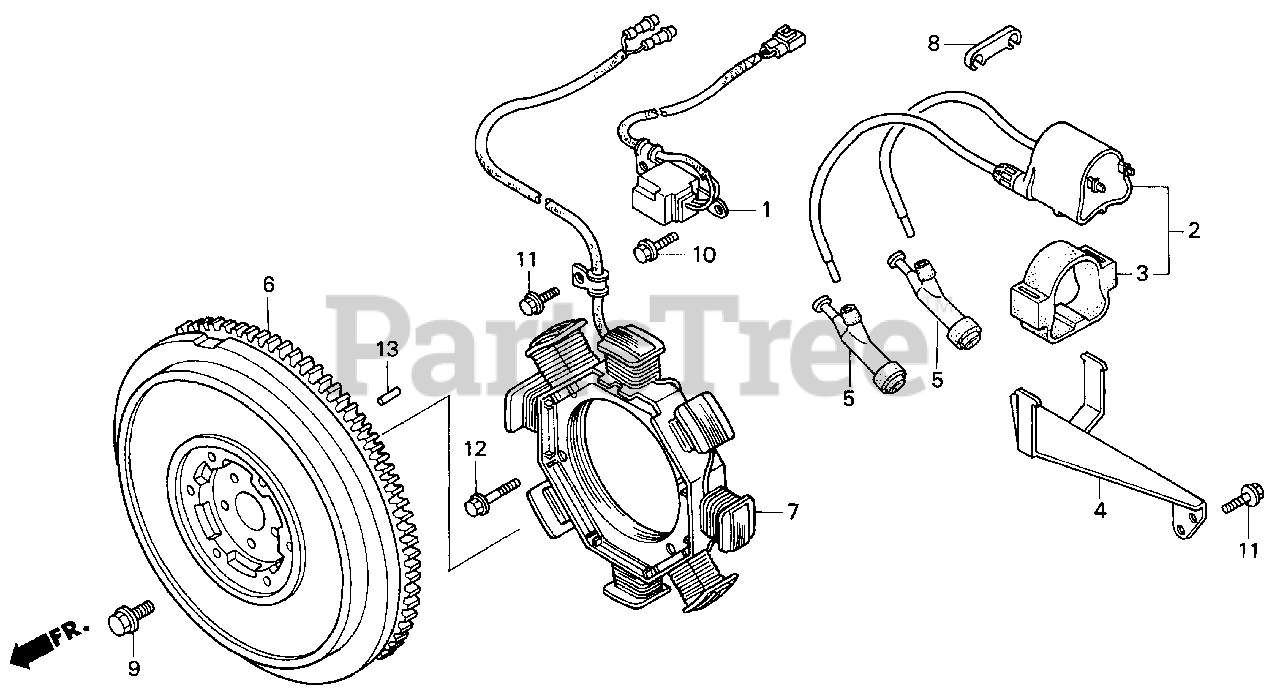

FLYWHEEL (H4518H) Parts Diagram

  • Title

1

Honda 30400-ZG8-003

COIL ASSY., PULSER

$

$

Not available

2

Honda 30500-ZG8-003

COIL ASSY., IGNITION

$155.99

$

Usually ships in 3-6 days

0

3

Honda 30506-ML4-003

SUSPENSION, IGNITION COIL

$8.99

$

In Stock, only 1 left!

0

4

Honda 30515-ZG8-000

BRACKET, IGNITION COIL

$23.99

$

Usually ships in 3-6 days

0

5

Honda 30700-ZE1-013

CAP ASSY., NOISE SUPPRESSOR (NICHIWA Y-EZ RTFM256)

$26.99

$

In Stock, only 2 left!

0

6

Honda 31100-ZG8-000

FLYWHEEL

$

$

Not available

7

Honda 31630-ZG8-003

COIL ASSY., CHARGE

$414.99

$

Usually ships in 3-6 days

0

8

Honda 32764-PA0-000

CLAMP, WIRE

$

$

Not available

9

Honda 90011-689-000

BOLT, HEX. (10MM)

$13.99

$

Usually ships in 3-6 days

0

10

Honda 90012-892-000

BOLT, FLANGE (5X16)

$2.49

$

In Stock, Qty 5

0

11

Honda 90014-952-000

BOLT, FLANGE (6X14)

$3.49

$

In Stock, Qty 20+

0

12

Honda 90123-VA4-800

BOLT, FLANGE (6X25)

$2.99

$

Usually ships in 3-6 days

0

13

Honda 94302-06100

PIN B, DOWEL (6X10)

$3.49

$

Usually ships in 3-6 days

0
