H5013 A2/D (FAHA) - Honda Multi-Purpose Tractor, Made in Japan (SN: FAHA-4100001 - FAHA-4299999) CYLINDER Parts Diagram

Multi-Purpose Tractor, Made in Japan

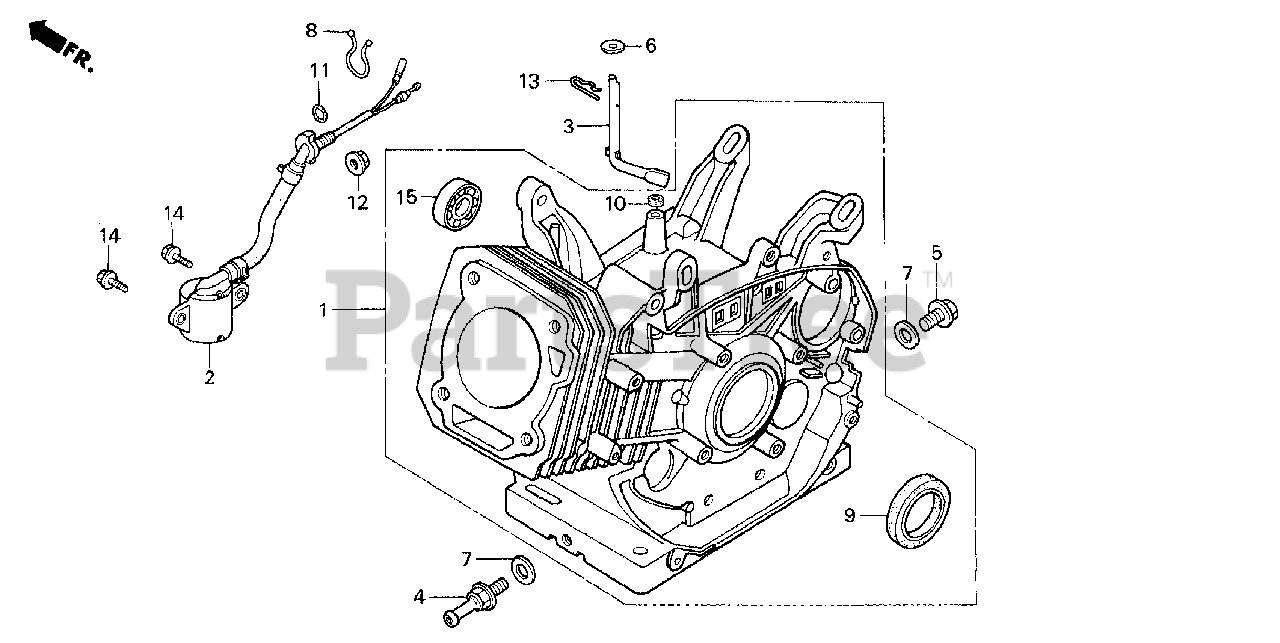

CYLINDER Parts Diagram

  • Title

1

Honda 12000-ZF6-405

SEE PART DETAILS - SUP; CYLINDER ASSY. (L04)

$

$

Currently unavailable

2

Honda 15510-ZE2-023

SEE PART DETAILS - SUP; SWITCH ASSY., OIL LEVEL
(Superseded to 15510-ZE2-043)

$69.99

$

In Stock, only 2 left!

0

2

Honda 15510-ZE2-033

SEE PART DETAILS - SUP; SWITCH ASSY., OIL LEVEL
(Superseded to 15510-ZE2-043)

$69.99

$

In Stock, only 2 left!

0

2

Honda 15510-ZE2-043

SEE PART DETAILS - SUP; SWITCH ASSY., OIL LEVEL
(Superseded to 15510-ZE2-053)

$69.99

$

In Stock, only 2 left!

0

3

Honda 16541-ZE3-010

SHAFT, GOVERNOR ARM

$17.99

$

Usually ships in 3-6 days

0

4

Honda 90131-ZE3-790

PLUG, OIL DRAIN

$14.99

$

Usually ships in 3-6 days

0

5

Honda 90131-896-650

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG

$5.99

$

In Stock, only 2 left!

0

6

Honda 90446-KE1-000

WASHER (8.2X17X0.8)

$2.49

$

Usually ships in 3-6 days

0

7

Honda 94109-12000

WASHER, DRAIN PLUG (12MM)

$1.99

$

In Stock, Qty 20+

0

8

Honda 90630-751-000

SEE PART DETAILS - PRI; CLIP, PURSE LOCK

$2.99

$

Usually ships in 3-6 days

0

9

Honda 91201-ZE3-004

OIL SEAL (35X52X8)

$12.99

$

In Stock, Qty 5

0

10

Honda 91201-ZE9-003

SEE PART DETAILS - PRI; OIL SEAL (8X14X5)

$5.99

$

In Stock, only 2 left!

0

10

Honda 91203-952-771

SEE PART DETAILS - SUP; OIL SEAL (8X14X5)
(Superseded to 91201-ZE9-003)

$5.99

$

In Stock, only 2 left!

0

11

Honda 91353-671-003

SEE PART DETAILS - PRI; O-RING (14MM) (ARAI)

$3.99

$

In Stock, Qty 20+

0

12

Honda 94050-10000

SEE PART DETAILS - PRI; NUT, FLANGE (10MM)

$2.49

$

In Stock, Qty 20+

0

13

Honda 94251-08000

PIN, LOCK (8MM)

Note: Use up to Engine SN 2164704.

$1.99

$

In Stock, Qty 13

0

13

Honda 94251-10000

PIN, LOCK (10MM)

Note: Use from Engine SN 2164705.

$1.99

$

In Stock, only 3 left!

0

14

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 17

0

15

Honda 96100-62020-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6202)

$13.99

$

In Stock, only 2 left!

0
