H5013 A2/D (FAHA) - Honda Multi-Purpose Tractor, Made in Japan (SN: FAHA-4100001 - FAHA-4299999) STEERING WHEEL Parts Diagram

Multi-Purpose Tractor, Made in Japan

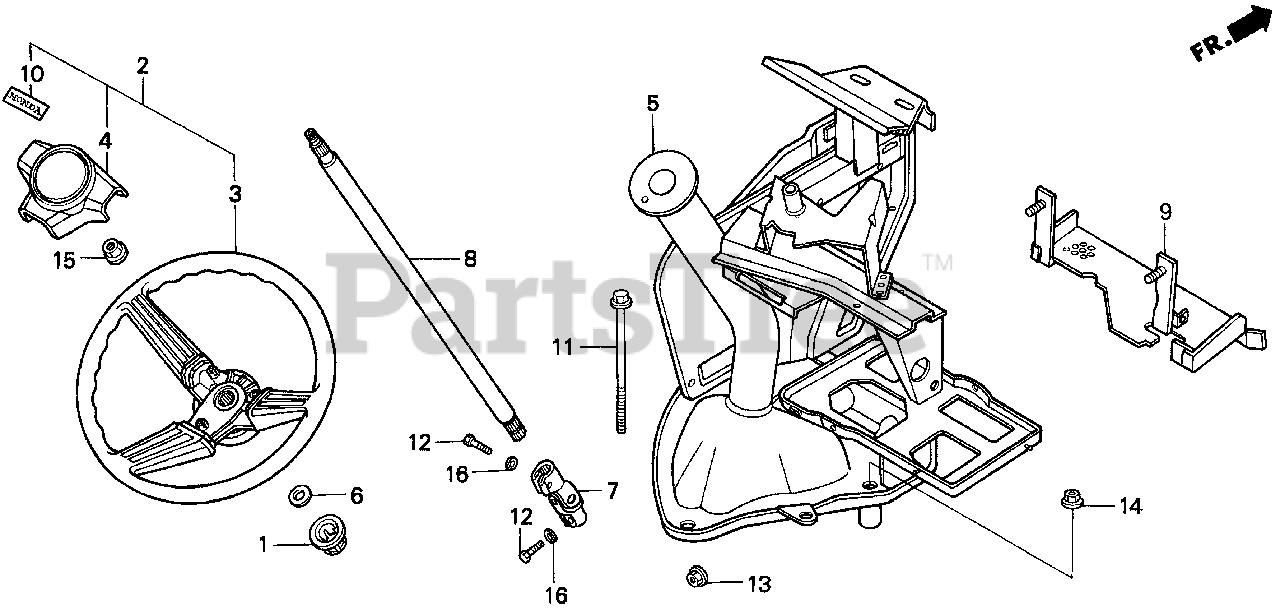

STEERING WHEEL Parts Diagram

  • Title

1

Honda 53055-752-003

BUSH, STEERING COLUMN

$

$

Not available

2

Honda 53100-752-A10

WHEEL ASSY., STEERING

$409.99

$

Usually ships in 3-6 days

0

3

Honda 53110-752-003

SEE PART DETAILS - SUP; WHEEL, STEERING

$356.99

$

Usually ships in 3-6 days

0

4

Honda 53122-752-A10

PAD, CENTER

$27.99

$

Usually ships in 3-6 days

0

5

Honda 53210-752-B30

COLUMN, STEERING

$

$

Not available

6

Honda 53222-579-000

WASHER, STEERING COLUMN

$18.99

$

Usually ships in 3-6 days

0

7

Honda 53300-679-003

JOINT ASSY., STEERING

$

$

Not available

8

Honda 53311-752-000

SHAFT, STEERING

$

$

Not available

9

Honda 66112-752-010

COVER, FR. PROPELLER SHAFT

$

$

Not available

10

Honda 87101-752-A10

SEE PART DETAILS - SUP; MARK, EMBLEM (6H000-4149)

$

$

Currently unavailable

11

Honda 90057-671-000

BOLT, ALTERNATOR

$34.99

$

Usually ships in 3-6 days

0

12

Honda 92201-08028-0H

BOLT, HEX. (8X28)

$1.99

$

Usually ships in 3-6 days

0

13

Honda 94050-06080

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 9

0

14

Honda 94050-10080

NUT, FLANGE (10MM)

$5.49

$

In Stock, Qty 20+

0

15

Honda 90380-SB2-003

NUT, SELF-LOCK (OHASHI)

$2.99

$

In Stock, only 2 left!

0

16

Honda 94111-08800

WASHER, SPRING (8MM)

$1.49

$

Usually ships in 3-6 days

0
