H5013 A4/D (FAHA) - Honda Multi-Purpose Tractor, Made in Japan (SN: FAHA-4100001 - FAHA-4299999) BATTERY Parts Diagram

Multi-Purpose Tractor, Made in Japan

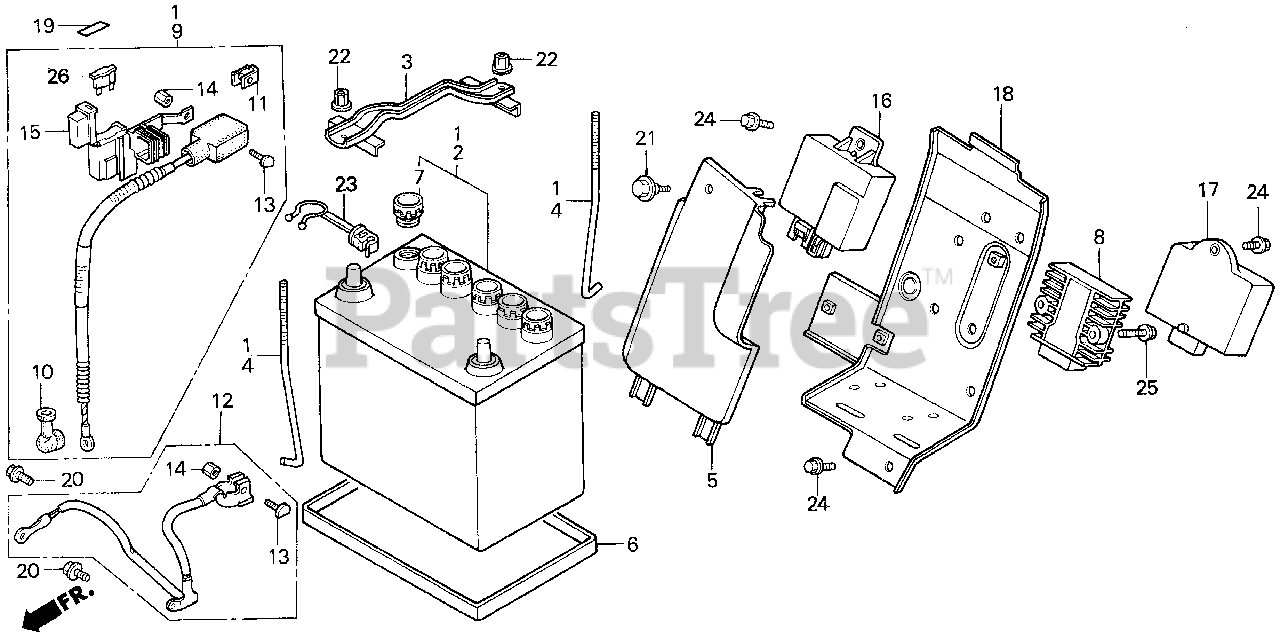

BATTERY Parts Diagram

  • Title

1

Honda 06315-752-730

BATTERY KIT (N/A: SEE COMPONENTS)

$

$

Currently unavailable

2

Honda 31500-750-013

SEE PART DETAILS - SUP; BATTERY ASSY. (32A19RT-S) (YUASA)
(Superseded to 31500-750-023)

$145.99

$

Usually ships in 3-6 days

0

2

Honda 31500-750-013

SEE PART DETAILS - SUP; BATTERY ASSY. (32A19RT-S) (YUASA)
(Superseded to 31500-750-023)

$145.99

$

Usually ships in 3-6 days

0

3

Honda 31512-750-000

PLATE, BATTERY SETTING

$21.99

$

Usually ships in 3-6 days

0

4

Honda 31513-SA7-000

SEE PART DETAILS - SUP; BOLT, BATTERY SETTING (185MM)

$

$

Currently unavailable

4

Honda 31513-SP0-010

SEE PART DETAILS - PRI; BOLT, BATTERY SETTING (210MM)

$10.99

$

Usually ships in 3-6 days

0

5

Honda 31518-752-000

COVER, ELECTRIC PARTS

$

$

Not available

6

Honda 31523-ZA0-800

TRAY, BATTERY

$14.99

$

Usually ships in 3-6 days

0

7

Honda 31542-538-007

PLUG, VENT (YUASA)

$10.99

$

Usually ships in 3-6 days

0

8

Honda 31600-890-951

RECTIFIER ASSY., REGULATOR

$

$

Not available

9

Honda 32410-752-630

CABLE ASSY., STARTER

$

$

Not available

9

Honda 32410-752-730

CABLE ASSY., STARTER

$

$

Not available

10

Honda 32411-230-000

COVER, STARTER MOTOR TERMINAL

$8.99

$

Usually ships in 3-6 days

0

11

Honda 32416-752-000

STOPPER, MAIN FUSE

$4.49

$

Usually ships in 3-6 days

0

12

Honda 32600-752-630

CABLE ASSY., GROUND

$

$

Not available

13

Honda 32601-SA5-003

SEE PART DETAILS - SUP; BOLT, BATTERY TERMINAL (SUMITOMO)

$11.99

$

Usually ships in 3-6 days

0

13

Honda 32601-SK7-900

SEE PART DETAILS - PRI; BOLT, BATTERY TERMINAL

$11.99

$

Usually ships in 3-6 days

0

14

Honda 32602-SA5-003

NUT, BATTERY TERMINAL (SUMITOMO)

$7.49

$

Usually ships in 3-6 days

0

15

Honda 38210-751-003

CASE, MAIN FUSE

$20.99

$

In Stock, only 1 left!

0

17

Honda 38460-752-004

UNIT, FUEL CONTROL

$331.99

$

Usually ships in 3-6 days

0

18

Honda 53225-752-010

BRACKET, ELECTRIC PARTS

$

$

Not available

19

Honda 87117-752-630

MARK, MAIN FUSE (ENGLISH)

$

$

Not available

20

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

21

Honda 90111-SM4-003

BOLT, BUMPER

$5.99

$

Usually ships in 3-6 days

0

22

Honda 90304-896-650

NUT, HEX. (6MM)

$

$

Not available

23

Honda 91503-752-003

CLAMP, WIRE HARNESS

$16.99

$

Usually ships in 3-6 days

0

24

Honda 95700-06012-08

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

$

$

Currently unavailable

24

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, only 2 left!

0

25

Honda 95701-06020-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X20)

$0.99

$

Usually ships in 3-6 days

0

26

Honda 98200-32000

FUSE, BLADE (20A)

$1.99

$

Usually ships in 3-6 days

0
