H5013 A4/D (FAHA) - Honda Multi-Purpose Tractor, Made in Japan (SN: FAHA-4100001 - FAHA-4299999) FRONT DIFFERENTIAL GEAR Parts Diagram

Multi-Purpose Tractor, Made in Japan

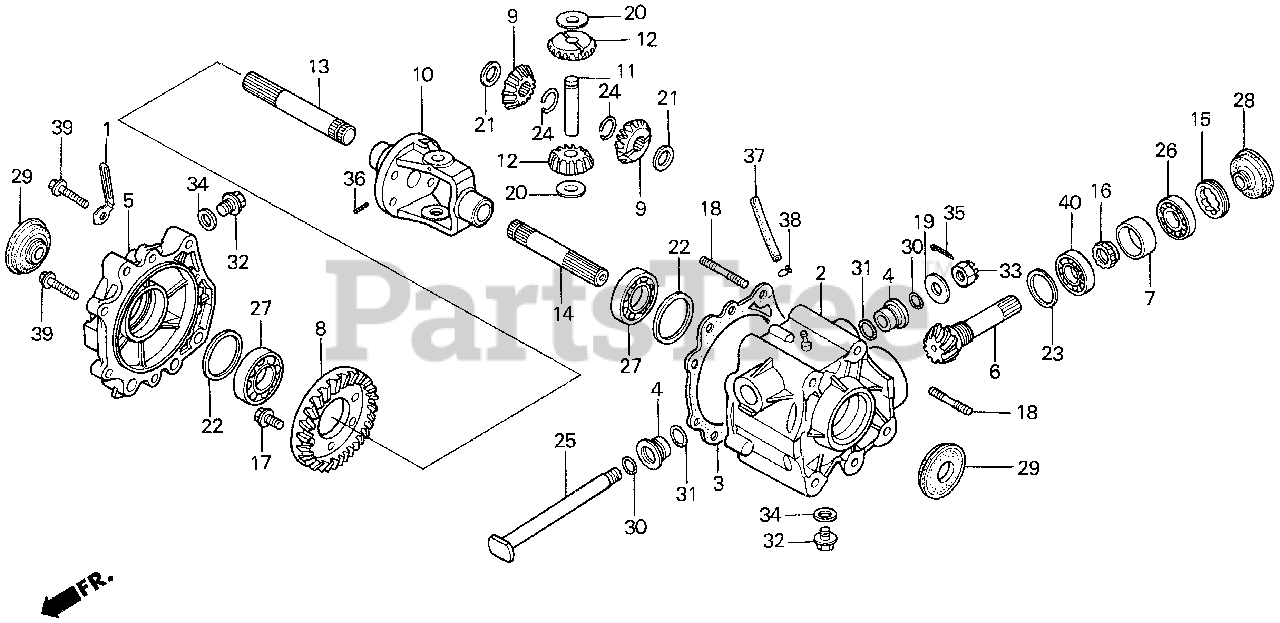

FRONT DIFFERENTIAL GEAR Parts Diagram

  • Title

1

Honda 32170-GG2-000

CLIP A, WIRE HARNESS

$

$

Not available

2

Honda 41140-752-000

HOUSING, FR. DIFFERENTIAL

$

$

Not available

3

Honda 45176-769-750

GASKET, FR. DIFFERENTIAL HOUSING

$

$

Not available

4

Honda 41146-752-000

BUSH, CENTER PIN

$19.99

$

Usually ships in 3-6 days

0

5

Honda 41151-752-000

COVER, FR. DIFFERENTIAL

$

$

Not available

6

Honda 41211-752-000

SHAFT, FR. DIFFERENTIAL INPUT

$

$

Not available

7

Honda 41213-752-000

COLLAR, FR. DIFFERENTIAL INPUT SHAFT

$13.99

$

Usually ships in 3-6 days

0

8

Honda 41216-752-000

GEAR, FR. DIFFERENTIAL DRIVEN

$178.99

$

Usually ships in 3-6 days

0

9

Honda 41241-752-000

GEAR, DIFFERENTIAL (16T)

$70.99

$

Usually ships in 3-6 days

0

10

Honda 41316-752-000

CASE, FR. DIFFERENTIAL

$

$

Not available

11

Honda 41321-750-000

SHAFT, DIFFERENTIAL PINION

$21.99

$

Usually ships in 3-6 days

0

12

Honda 41341-750-000

PINION, DIFFERENTIAL (16T)

$79.99

$

Usually ships in 3-6 days

0

13

Honda 44311-752-000

SHAFT, R. FR. DRIVE

$

$

Not available

14

Honda 44321-752-000

DRIVESHAFT, L. FR.

$

$

Not available

15

Honda 44331-752-000

NUT, LOCK (55MM)

$28.99

$

Usually ships in 3-6 days

0

16

Honda 44332-752-000

NUT, LOCK (25MM)

$15.99

$

Usually ships in 3-6 days

0

17

Honda 90011-689-000

BOLT, HEX. (10MM)

$11.99

$

Usually ships in 3-6 days

0

18

Honda 90048-752-000

BOLT, STUD (10X45)

$7.99

$

Usually ships in 3-6 days

0

19

Honda 90454-752-000

WASHER, THRUST (14X30X2.5)

$7.99

$

Usually ships in 3-6 days

0

20

Honda 90521-750-000

WASHER A, DIFFERENTIAL PINION (16.2X30X0.7)

$4.99

$

Usually ships in 3-6 days

0

20

Honda 90522-750-000

WASHER B, DIFFERENTIAL PINION (16.2X30X0.8)

$

$

Not available

20

Honda 90523-750-000

WASHER C, DIFFERENTIAL PINION (16.2X30X0.9)

$

$

Not available

20

Honda 90524-750-000

WASHER D, DIFFERENTIAL PINION (16.2X30X1.0)

$4.99

$

Usually ships in 3-6 days

0

21

Honda 90525-752-000

WASHER, DIFFERENTIAL GEAR

$7.49

$

Usually ships in 3-6 days

0

22

Honda 90530-752-000

SHIM, FR. DIFFERENTIAL CASE (54X64.5X1.8) (L)

$20.99

$

Usually ships in 3-6 days

0

22

Honda 90531-752-000

SHIM, FR. DIFFERENTIAL CASE (54X64.5X1.85) (M)

$20.99

$

Usually ships in 3-6 days

0

22

Honda 90532-752-000

SHIM, FR. DIFFERENTIAL CASE (54X64.5X1.9) (N)

$20.99

$

Usually ships in 3-6 days

0

22

Honda 90533-752-000

SHIM, FR. DIFFERENTIAL CASE (54X64.5X1.95) (O)

$20.99

$

Usually ships in 3-6 days

0

22

Honda 90534-752-000

SHIM, FR. DIFFERENTIAL CASE (54X64.5X2.0) (P)

$20.99

$

Usually ships in 3-6 days

0

22

Honda 90535-752-000

SHIM, FR. DIFFERENTIAL CASE (54X64.5X2.05) (Q)

$20.99

$

Usually ships in 3-6 days

0

22

Honda 90545-752-000

SHIM, FR. DIFFERENTIAL CASE (54X64.5X1.5) (F)

$

$

Not available

22

Honda 90546-752-000

SHIM, FR. DIFFERENTIAL CASE (54X64.5X1.55) (G)

$

$

Not available

22

Honda 90547-752-000

SHIM, FR. DIFFERENTIAL CASE (54X64.5X1.6) (H)

$

$

Not available

22

Honda 90548-752-000

SHIM, FR. DIFFERENTIAL CASE (54X64.5X1.65) (I)

$

$

Not available

22

Honda 90549-752-000

SHIM, FR. DIFFERENTIAL CASE (54X64.5X1.7) (J)

$

$

Not available

22

Honda 90550-752-000

SHIM, FR. DIFFERENTIAL CASE (54X64.5X1.75) (K)

$

$

Not available

23

Honda 90581-752-000

SHIM, PINION (45.5X51.5X1.35) (A)

$16.99

$

Usually ships in 3-6 days

0

23

Honda 90582-752-000

SHIM, PINION (45.5X51.5X1.4) (B)

$16.99

$

Usually ships in 3-6 days

0

23

Honda 90583-752-000

SHIM, PINION (45.5X51.5X1.45) (C)

$16.99

$

In Stock, only 1 left!

0

23

Honda 90584-752-000

SHIM, PINION (45.5X51.5X1.5) (D)

$12.99

$

Usually ships in 3-6 days

0

23

Honda 90585-752-000

SHIM, PINION (45.5X51.5X1.55) (E)

$

$

Not available

23

Honda 90586-752-000

SHIM, PINION (45.5X51.5X1.6) (F)

$

$

Not available

23

Honda 90587-752-000

SHIM, PINION (45.5X51.5X1.65) (G)

$

$

Not available

23

Honda 90598-752-000

SHIM, PINION (45.5X51.5X1.25) (R)

$16.99

$

Usually ships in 3-6 days

0

23

Honda 90599-752-000

SHIM, PINION (45.5X51.5X1.3) (S)

$16.99

$

Usually ships in 3-6 days

0

24

Honda 90601-752-000

CIRCLIP (OUTER) (22MM)

$5.28

$

In Stock, only 2 left!

0

25

Honda 90702-752-000

PIN, CENTER

$43.99

$

Usually ships in 3-6 days

0

26

Honda 91002-HA5-003

SEE PART DETAILS - PRI; BEARING, SPECIAL (22) (KOYO)

$

$

Not available

27

Honda 91008-752-003

BEARING, RADIAL BALL (62/32)

$48.99

$

Usually ships in 3-6 days

0

28

Honda 91202-752-003

SEAL, WATER (33X58X12)

$

$

Not available

29

Honda 91206-752-005

OIL SEAL (22X52X11.5)

$

$

Not available

30

Honda 91256-383-721

O-RING (17.8X2.4) (SHOWA)

$2.99

$

Usually ships in 3-6 days

0

31

Honda 91305-425-003

O-RING (23.5X2.6)

$4.49

$

Usually ships in 3-6 days

0

32

Honda 92800-14000

BOLT, DRAIN PLUG (14MM)

$5.49

$

Usually ships in 3-6 days

0

33

Honda 94011-14080-0S

NUT, CASTLE (14MM)

$

$

Not available

34

Honda 94109-14000

WASHER, DRAIN PLUG (14MM)

$0.99

$

In Stock, Qty 20+

0

35

Honda 94201-30450

PIN, SPLIT (3.0X45)

$1.49

$

In Stock, Qty 7

0

36

Honda 94305-40322

PIN, SPRING (4X32)

Note: Use from Frame SN 4100236.

$2.99

$

In Stock, only 2 left!

0

36

Honda 94305-40320

PIN, SPRING (4X32)

Note: Use up to Frame SN 4100235.

$2.49

$

Usually ships in 3-6 days

0

37

Honda 95001-45003-50M

SEE PART DETAILS - PRI; BULK HOSE, FUEL (4.5X3000) (4.5X200)

$77.99

$

In Stock, only 1 left!

0

38

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, Qty 20+

0

39

Honda 95801-08032-08

BOLT, FLANGE (8X32)

$2.99

$

Usually ships in 3-6 days

0

40

Honda 96100-62050-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6205)

$22.99

$

In Stock, only 2 left!

0
