H5013 A4/D (FAHA) - Honda Multi-Purpose Tractor, Made in Japan (SN: FAHA-4100001 - FAHA-4299999) SEAT Parts Diagram

Multi-Purpose Tractor, Made in Japan

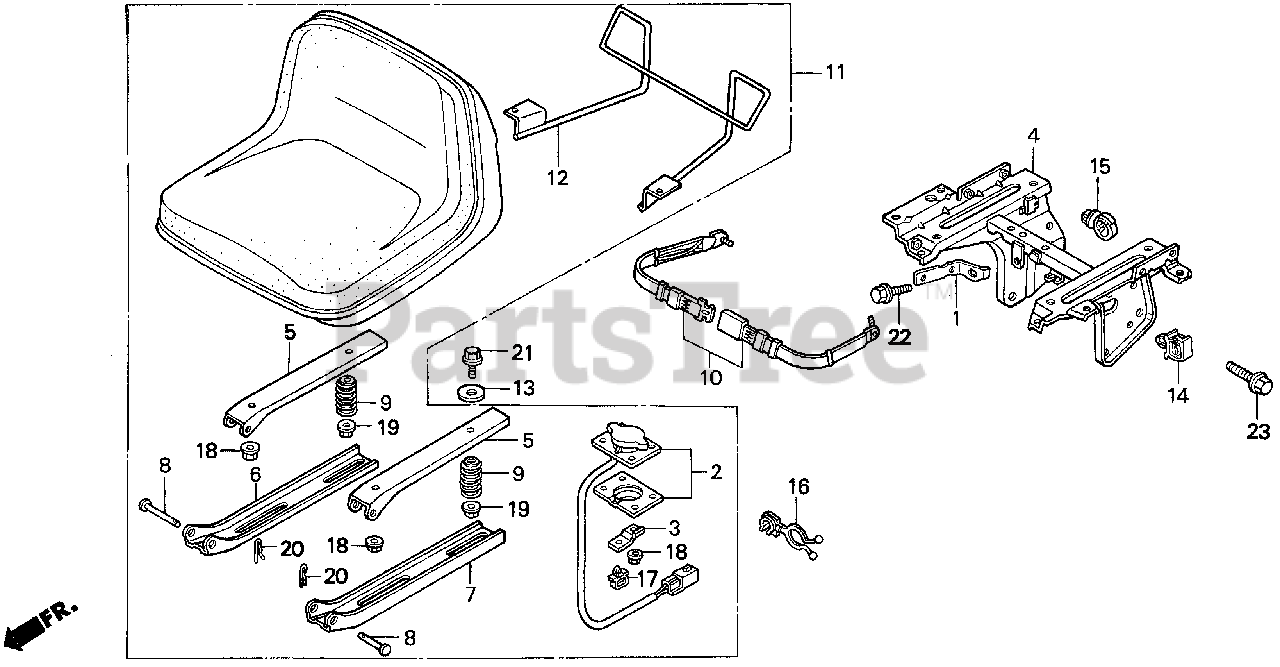

SEAT Parts Diagram

  • Title

1

Honda 32114-752-000

BRACKET, HARNESS CLIP (B)

$

$

Not available

2

Honda 35800-752-631

SWITCH ASSY., SEAT

$

$

Not available

3

Honda 35806-758-000

BASE, CLIP

$5.49

$

Usually ships in 3-6 days

0

4

Honda 65160-752-B30

FRAME, SEAT SUPPORT

$

$

Not available

5

Honda 77223-750-003

BASE, SEAT (UPPER)

$58.99

$

Usually ships in 3-6 days

0

6

Honda 77224-750-003

BASE, R. SEAT (LOWER)

$58.99

$

Usually ships in 3-6 days

0

7

Honda 77225-750-003

BASE, L. SEAT (LOWER)

$58.99

$

Usually ships in 3-6 days

0

8

Honda 77226-750-003

PIN, SEAT BASE (8MM)

$5.99

$

Usually ships in 3-6 days

0

9

Honda 77228-752-003

SPRING, SEAT

$16.99

$

Usually ships in 3-6 days

0

10

Honda 77610-752-B31

SEAT BELT ASSY.

$

$

Not available

11

Honda 81100-752-B30

SEAT ASSY.

$

$

Not available

12

Honda 83517-752-B30

HOLDER, TOOL BOX

$77.99

$

Usually ships in 3-6 days

0

13

Honda 90426-355-000

WASHER, ROTOR SETTING

$4.99

$

Usually ships in 3-6 days

0

14

Honda 90650-SB6-003

CLIP, HARNESS (15MM) (BLUE)

$5.49

$

Usually ships in 3-6 days

0

14

Honda 90650-SB6-003

CLIP, HARNESS (15MM) (BLUE)

Note: Use up to Frame SN 2100066.

$5.49

$

Usually ships in 3-6 days

0

15

Honda 90681-763-A01

CLIP, WIRE HARNESS

$10.99

$

In Stock, only 1 left!

0

15

Honda 90681-763-A01

CLIP, WIRE HARNESS

Note: Use from Frame SN 2100067.

$10.99

$

In Stock, only 1 left!

0

17

Honda 91508-SA4-003

CLIP, WIRE HARNESS (BLACK)

$9.99

$

Usually ships in 3-6 days

0

18

Honda 94050-06080

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 12

0

19

Honda 94071-06080

NUT-WASHER (6MM)

$1.99

$

Usually ships in 3-6 days

0

20

Honda 94251-08000

PIN, LOCK (8MM)

$1.49

$

In Stock, Qty 20+

0

21

Honda 95701-08016-07

BOLT, FLANGE (8X16)

$2.49

$

In Stock, Qty 5

0

22

Honda 95701-08020-08

BOLT, FLANGE (8X20)

$1.99

$

In Stock, Qty 6

0

23

Honda 95701-10025-08

BOLT, FLANGE (10X25)

$2.99

$

Usually ships in 3-6 days

0
