H5500 (0060360) - Honeywell Portable Generator (SN: 6276935A - 6285550A) (2011) EV Portable Honeywell 2010 (0J3349) Parts Diagram

Portable Generator

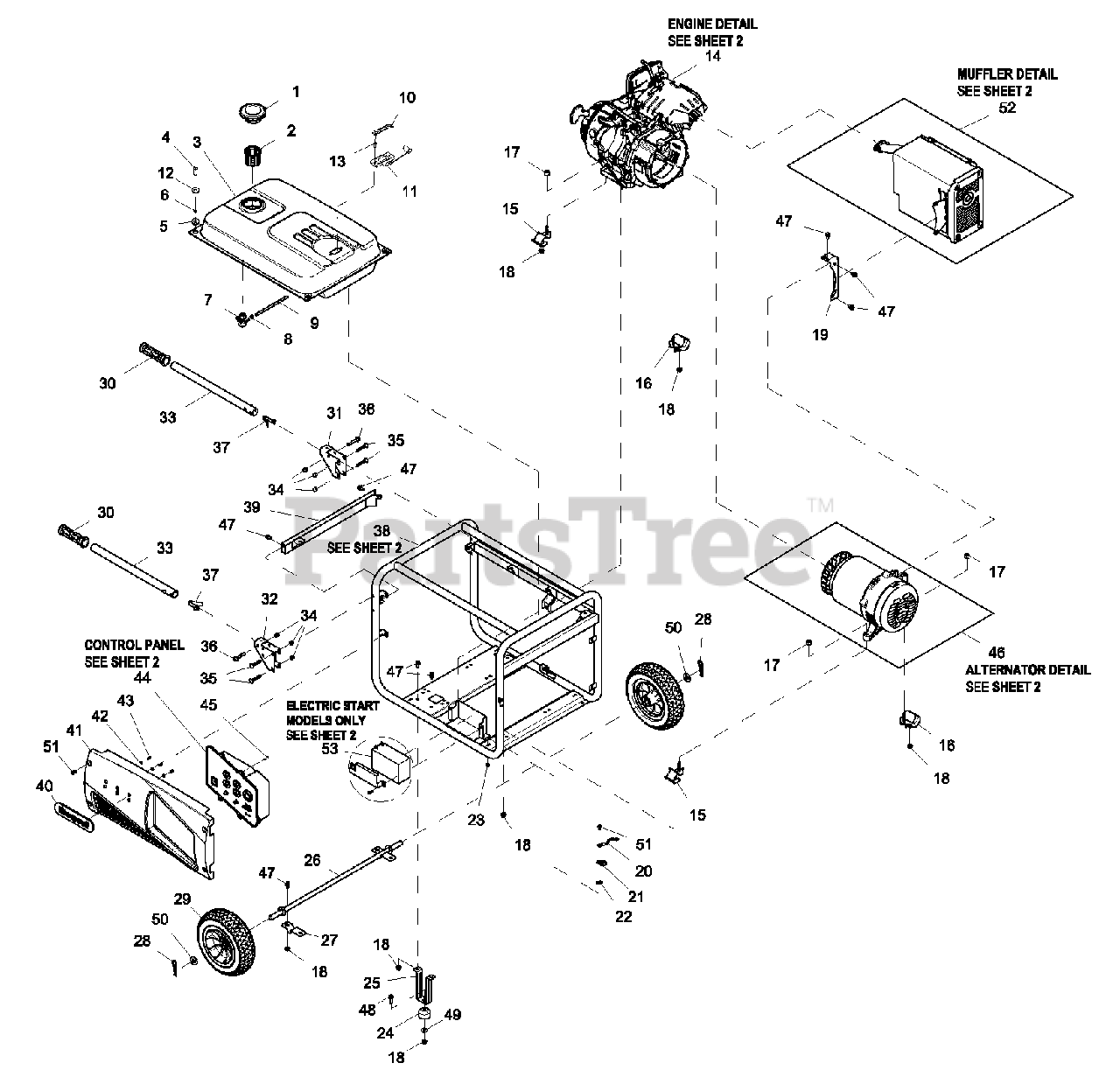

EV Portable Honeywell 2010 (0J3349) Parts Diagram

  • Title

1

Generac 0J4690

FUEL CAP,VENTED,BLACK CAP

$21.99

$

Usually ships in 2-12 days

0

2

Generac 0H1326

FILTER, FUEL

$5.49

$

In Stock, Qty 20+

0

3

0J4601

FUEL TANK 5.8GALHNYWL

$

$

Not available

4

Generac 0J4030

SCREW HHFC M6-1.0X25FTH

Note: ORDER PART# 0H58410165

$

$

Currently unavailable

5

Generac 0H1411B

RUBBER MOUNT,10.3 ID X11 HGT

$3.49

$

In Stock, Qty 20+

0

6

OH 1610 A

INSERT, ANTI-CRUSH FOR TANKS

$

$

Not available

7

Generac 0J0974

VALVE FUEL SHUTOFF

$26.99

$

In Stock, Qty 14

0

8

Generac 048031B

CLAMP HOSE BAND SPRING .38

$3.99

$

In Stock, only 4 left!

0

9

Generac 0G9757C

FUEL HOSE 4 ID X 8.50D X165MM

$7.49

$

Usually ships in 2-12 days

0

10

Generac 0H1359

PLATE, FUEL GAGE

Note: CANNOT BUY SEPARATE. MUST PURCHASE FUEL GAUGE ASSY OFF OF BOM

$

$

Currently unavailable

11

Generac 0H1345A

FUEL GAGE, 90MM LONG ARM

Note: ORDER P/N 0G84300102

$

$

Currently unavailable

12

Generac 054381

WASHER FLAT .266ID X 1.00D

$

$

Not available

13

Generac 0H1357

SCREW PFHMM5-0.8X 12

Note: INCLUDED WITH FUEL GUAGE.

$0.99

$

Usually ships in 2-12 days

0

14

Generac 0G8442B

ENGINE HNYWL

$

$

Currently unavailable

15

Generac 0J2085

VIB MNT45DEG M8X13.5/M10X37.5

$11.99

$

Usually ships in 2-12 days

0

16

Generac 0J2085A

VIB MNT45DEG M8X15.5/M10X37.5

$11.99

$

Usually ships in 2-12 days

0

17

Generac 0J4029

NUT HEX FL WHIZ M10-1.25

$1.49

$

Usually ships in 2-12 days

0

18

Generac 067989

NUT HEX FLWHIZM8-1.25
(Superseded to G067989)

$3.49

$

In Stock, Qty 20+

0

19

Generac 0G8542

BRACKET, MUFFLER 389CC

$19.99

$

Usually ships in 2-12 days

0

20

Generac 0742600197

GND WIRE PORT BRG CARR-FRAME

$

$

Not available

21

Generac 0J3047

LUG GROUNDING HONEYWELL

Note: ORDER # 0J4534

$

$

Currently unavailable

22

Generac 0A1658

WASHER LOCK SPECIAL 1/4"

$17.99

$

Usually ships in 2-12 days

0

23

Generac 049813

NUT HEX M6-1.0 G8 CLEAR ZINC
(Superseded to G049813)

$3.49

$

Usually ships in 2-12 days

0

24

Generac 0J2862

RUBBER FOOT

$7.99

$

In Stock, only 4 left!

0

25

0J3665

BENT FOOT HONEYWELL

$

$

Not available

26

0J3645

WELDMENT AXLE AND BRACKET HW

$

$

Not available

27

0J3961

AXLE BRACKET HONEYWELL

$

$

Not available

28

Generac 0H3443

COTTER HAIRPIN 2.56X.80

$1.99

$

In Stock, Qty 5

0

29

Generac 0J2666

WHEEL 10.25" OD 5/8" AXLE

$90.99

$

Usually ships in 2-12 days

0

30

Generac 0J2665

GRIP HANDLE HONEYWELL

$9.99

$

Usually ships in 2-12 days

0

31

0J3462A

BRACKET HANDLE LH HW PORT

$

$

Not available

32

0J3462

BRACKET HANDLE RH HW PORT

$

$

Not available

33

0J3474

HANDLE, HW PORTABLE

$

$

Not available

34

Generac 0H1782

CAP NUT M8-1.25 BLACK ZINC

$2.99

$

In Stock, Qty 12

0

35

Generac 0H1781A

CHB M8-1.25 X 40MM LONG

$4.99

$

Usually ships in 2-12 days

0

36

Generac 0H1779

SCREW,HHFC M8-1.25X45

$1.99

$

In Stock, only 3 left!

0

37

Generac 0G5442

SNAP BUTTON - .437" DIA. HEAD

$1.49

$

In Stock, Qty 14

0

38

0J3463

CRADLE WELDMENT HNYWL

$

$

Not available

39

0J3508

WELDMENT END RAIL HONEYWELL

$

$

Not available

40

0J3074

BADGE, HW SIDE PANEL

$

$

Not available

41

Generac 0J2804

PANEL, PLASTIC SIDE C-PNL PORT

$53.99

$

Usually ships in 2-12 days

0

42

Generac 038150

WASHER FLAT #8 ZINC
(Superseded to G038150)

Note: MODEL 4270-3 AND 4614- CHANGE TO PART NUMBER 051713 WASHER FLAT M5 AND LOCK WASHER 049226 WHEN USING WITH 076040 SCREW PER ECO- G-6948

$0.99

$

Usually ships in 2-12 days

0

43

Generac 0J4616

SCREW PPPH #8-16 X 0.40" BZC

$1.49

$

Usually ships in 2-12 days

0

44

Generac 0J2804

CONTROL PANEL HONEYWELL

$53.99

$

Usually ships in 2-12 days

0

45

Generac 0G8382

SCREW PPPH #8-16 X .66" BZC

$1.99

$

Usually ships in 2-12 days

0

46

Generac 0J4062

ASSY ALTERNATOR

$933.99

$

Usually ships in 2-12 days

0

47

Generac 0E9507A

SCREW HHFC M8-1.25 X14 W/M10

Note: ORDER P/N 0E9470

$

$

Currently unavailable

48

Generac 0E9507B

SCREW HHFC M8-1.25 X 25 W/M10

$3.99

$

In Stock, only 4 left!

0

49

Generac 0J4032

WSHR FLAT 22.60D X 8.6ID X3

Note: ORDER P/N 0J5762 WASHER FLAT 8.5ID X 3

$

$

Not available

50

Generac 022247

WASHER FLAT 5/8 ZINC
(Superseded to G022247)

$1.49

$

Usually ships in 2-12 days

0

51

Generac 0J4033

SCREW HHFC M6-1.0X14

Note: ORDER # 0J35220156

$

$

Currently unavailable

52

Generac 0J4608

MUFFLER HNYWL

$79.99

$

Usually ships in 2-12 days

0

53

Generac 0G9449

BATTERY 12V10AH SEALED

$81.99

$

In Stock, Qty 5

0
