H5500 (0060371) - Honeywell Portable Generator (SN: 7514583A - 7514942A) (2012) Crankcase Parts Diagram

Portable Generator

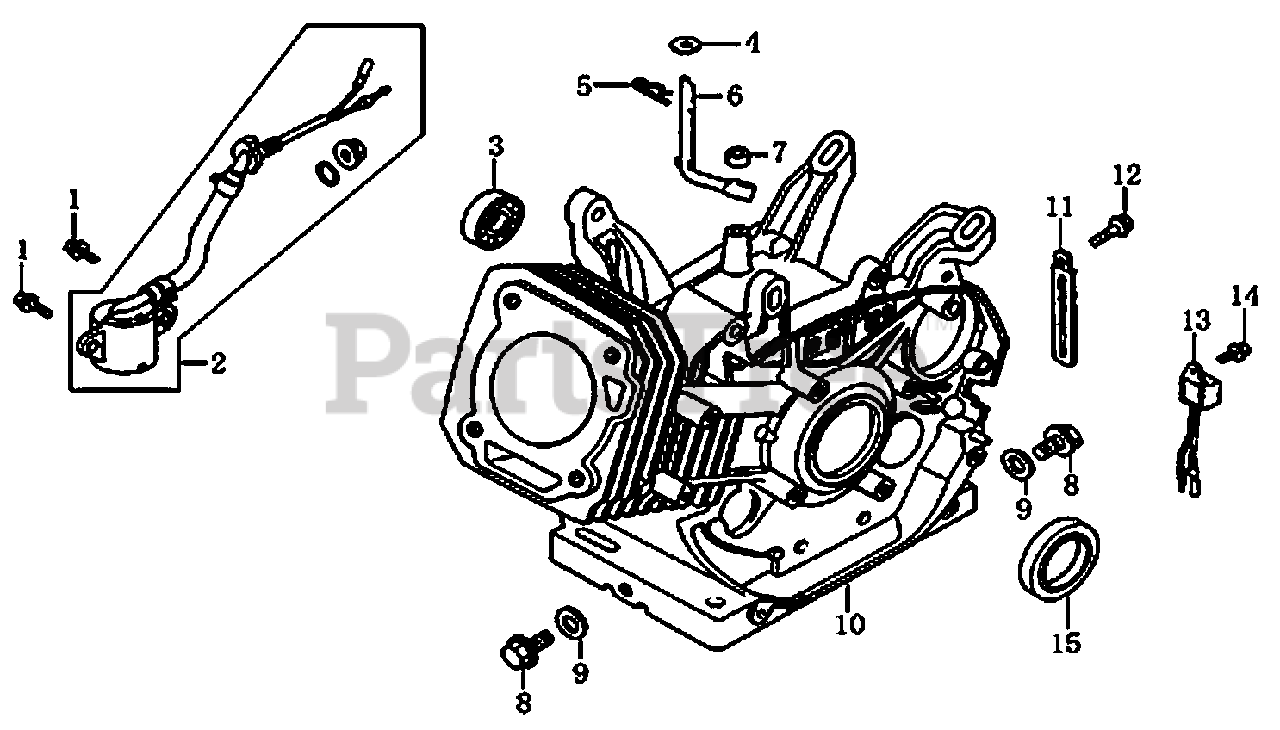

Crankcase Parts Diagram

  • Title

1

Generac 0G84420217

BOLT, FLANGE, 6×14

$1.99

$

In Stock, Qty 7

0

2

Generac 0G84420105

SWITCH ASSY., OIL LEVEL

$29.99

$

In Stock, only 1 left!

0

3

Generac 0G84420118

BEARING, RADIAL BALL, 6202

$14.99

$

Usually ships in 2-12 days

0

4

Generac 0G84420218

WASHER,8X16X1.2

$0.99

$

Usually ships in 2-12 days

0

5

Generac 0G84420219

PIN, LOCK, 10MM

$0.99

$

Usually ships in 2-12 days

0

6

Generac 0G84420220

SHAFT, GOVERNOR ARM

$7.99

$

Usually ships in 2-12 days

0

7

Generac 0G84420108

OIL SEAL, 8×14×4

$4.99

$

In Stock, only 2 left!

0

8

Generac 0G84420110

BOLT, DRAIN PLUG

$4.49

$

In Stock, only 2 left!

0

9

Generac 0G84420109

WASHER, DRAIN PLUG

$1.99

$

In Stock, Qty 6

0

10

Generac 0J39430118

CRANKCASE

$

$

Currently unavailable

11

Generac 0G84420267

CLIP

$1.49

$

Usually ships in 2-12 days

0

12

Generac 0G84420194

BOLT, FLANGE, M6×12

$1.49

$

In Stock, Qty 6

0

13

Generac 0G84420112

ALERT UNIT,OIL

$15.99

$

In Stock, only 2 left!

0

14

Generac 0G84420194

BOLT, FLANGE, M6×12

$1.49

$

In Stock, Qty 6

0
