H5518 NA2/A (TZAC) - Honda Multi-Purpose Tractor, Made in Japan (SN: TZAC-1000001 - TZAC-1999999) LABELS Parts Diagram

Multi-Purpose Tractor, Made in Japan

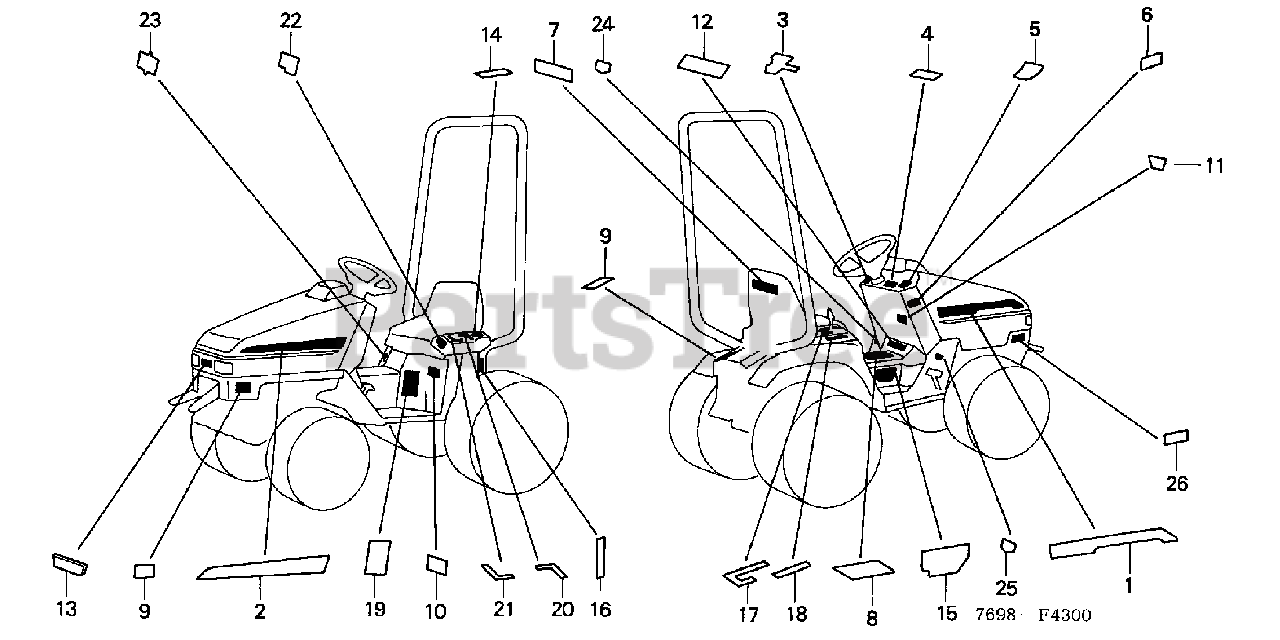

LABELS Parts Diagram

  • Title

1

Honda 87101-769-000

MARK, R. SIDE STRIPE

$

$

Not available

2

Honda 87102-769-000

MARK, L. SIDE STRIPE (4WS)

$

$

Not available

3

Honda 87104-769-000

MARK, LIGHT OPERATION (ENGLISH)

$7.99

$

Usually ships in 3-6 days

0

4

Honda 87105-769-000

MARK, ENGINE SWITCH (ENGLISH)

$7.99

$

Usually ships in 3-6 days

0

5

Honda 87107-769-000

MARK, THROTTLE OPERATION (ENGLISH)

$7.99

$

Usually ships in 3-6 days

0

6

Honda 87108-758-000

MARK, P.T.O. INDICATION

$5.99

$

Usually ships in 3-6 days

0

7

Honda 87113-750-010

MARK, SEAT

$9.99

$

Usually ships in 3-6 days

0

8

Honda 87114-769-000

LABEL, WARNING (ENGLISH)

$22.99

$

Usually ships in 3-6 days

0

9

Honda 87115-769-000

LABEL B, WARNING (ENGLISH)

$6.49

$

Usually ships in 3-6 days

0

10

Honda 87123-763-A00

LABEL, FUEL WARNING (B)(ENGLISH)

$7.49

$

In Stock, only 1 left!

0

11

Honda 87124-752-630

MARK, BRAKE LOCK INDICATION (ENGLISH)

$

$

Not available

12

Honda 87128-769-000

LABEL, PARKING BRAKE (ENGLISH)

$12.99

$

Usually ships in 3-6 days

0

13

Honda 87160-769-000

SEE PART DETAILS - SUP; EMBLEM, HOOD

$

$

Currently unavailable

14

Honda 87165-752-B30

SEE PART DETAILS - SUP; MARK, P.T.O. INDICATION (ENGLISH)

$

$

Not available

16

Honda 87176-752-B30

LABEL, ROLL OVER PROTECTIVE STRUCTURE WARNING (ENGLISH)

$9.49

$

Usually ships in 3-6 days

0

17

Honda 87181-752-B30

SEE PART DETAILS - SUP; MARK, LIFT INDICATION (ENGLISH)

$

$

Not available

18

Honda 87185-752-B30

SEE PART DETAILS - SUP; LABEL, HYDRAULIC ADJUST OPERATION (ENGLISH)

$

$

Not available

19

Honda 87191-769-000

SEE PART DETAILS - SUP; MARK, RECOMMENDED WORK SPEED (ENGLISH)

$

$

Currently unavailable

20

Honda 87251-752-B30

MARK A, MAIN CHANGE INDICATION (ENGLISH)

$

$

Not available

21

Honda 87252-752-B30

SEE PART DETAILS - SUP; MARK B, MAIN CHANGE INDICATION (ENGLISH)

$

$

Currently unavailable

22

Honda 87253-752-B30

SEE PART DETAILS - SUP; MARK, SUB-CHANGE INDICATION (ENGLISH)

$

$

Currently unavailable

24

Honda 87291-752-B30

SEE PART DETAILS - SUP; MARK, CLUTCH INDICATION (ENGLISH)

$

$

Currently unavailable

25

Honda 87296-752-B30

SEE PART DETAILS - SUP; MARK, BRAKE INDICATION (ENGLISH)

$

$

Currently unavailable

26

Honda 87539-737-E80

MARK, EX. CAUTION (A)

$6.99

$

Usually ships in 3-6 days

0
