H5518 NA2/C (TZAC) - Honda Multi-Purpose Tractor, Made in Japan (SN: TZAC-2500001 - TZAC-3499999) 2WD FRONT AXLE Parts Diagram

Multi-Purpose Tractor, Made in Japan

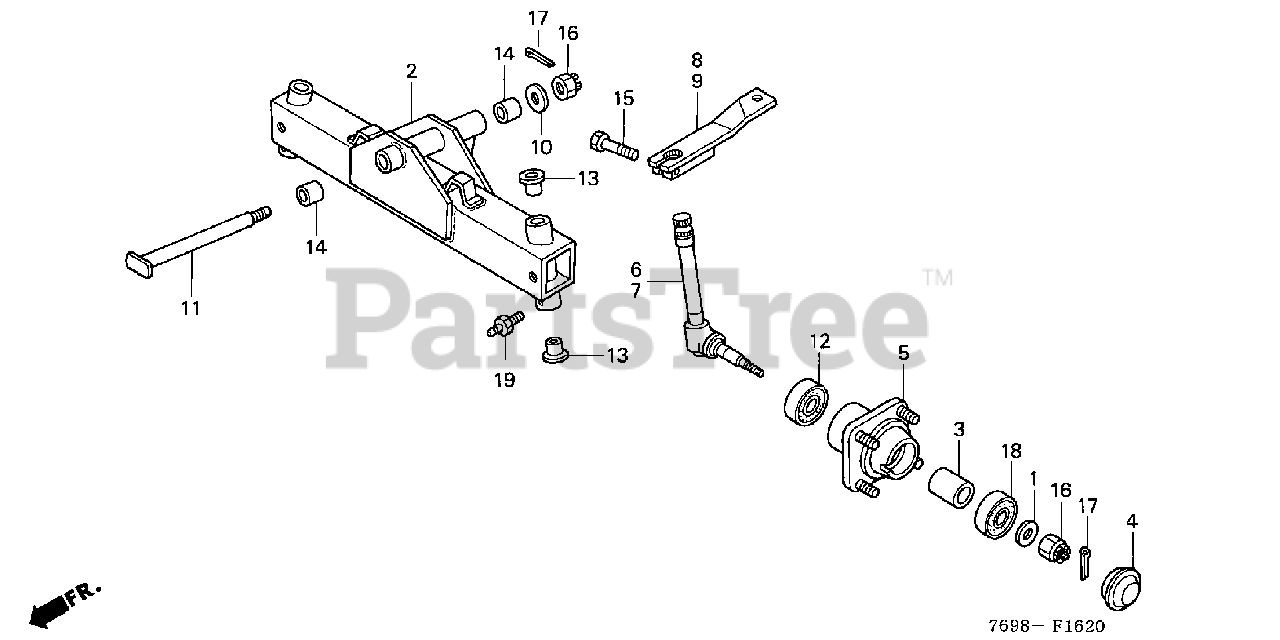

2WD FRONT AXLE Parts Diagram

  • Title

1

Honda 42322-950-000

WASHER (14MM)

$6.49

$

Usually ships in 3-6 days

0

2

Honda 44110-752-B30

AXLE, FR.

$

$

Not available

3

Honda 44312-752-B30

COLLAR, FR. AXLE

$

$

Not available

4

Honda 44719-752-B30

CAP, FR. HUB

$12.99

$

Usually ships in 3-6 days

0

5

Honda 44720-752-B30

HUB, FR. AXLE

$

$

Not available

6

Honda 51210-752-B30

KNUCKLE, R. FR.

$

$

Not available

7

Honda 51220-752-B31

KNUCKLE, L. FR.

$

$

Not available

8

Honda 53451-752-B30

ARM, R. FR. KNUCKLE

$

$

Not available

9

Honda 53456-752-B30

ARM, L. FR. KNUCKLE

$

$

Not available

10

Honda 90454-752-000

WASHER, THRUST (14X30X2.5)

$9.99

$

Usually ships in 3-6 days

0

11

Honda 90702-752-000

PIN, CENTER

$52.99

$

Usually ships in 3-6 days

0

12

Honda 91073-MV4-781

SEE PART DETAILS - SUP; BEARING, RADIAL BALL (62/22)
(Superseded to 91073-MV4-782)

$19.99

$

Usually ships in 3-6 days

0

12

Honda 91073-MV4-782

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (62/22)

$19.99

$

Usually ships in 3-6 days

0

13

Honda 91551-752-B31

BUSH (28X25X20)

$

$

Not available

14

Honda 91552-752-B31

BUSH (20X18X20)

$

$

Not available

15

Honda 92101-12040-0H

BOLT, HEX. (12X40)

$

$

Not available

16

Honda 94011-14080-0S

NUT, CASTLE (14MM)

$

$

Not available

17

Honda 94201-30450

PIN, COTTER (3.0X45)

$1.49

$

In Stock, Qty 20+

0

18

Honda 96150-62050-10

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6205UU)

$48.99

$

In Stock, only 2 left!

0

19

Honda 96201-10000

FITTING, GREASE (A.76)

$3.99

$

Usually ships in 3-6 days

0
