H5518 NA2/C (TZAC) - Honda Multi-Purpose Tractor, Made in Japan (SN: TZAC-2500001 - TZAC-3499999) 2WD LOWER COUNTERSHAFT Parts Diagram

Multi-Purpose Tractor, Made in Japan

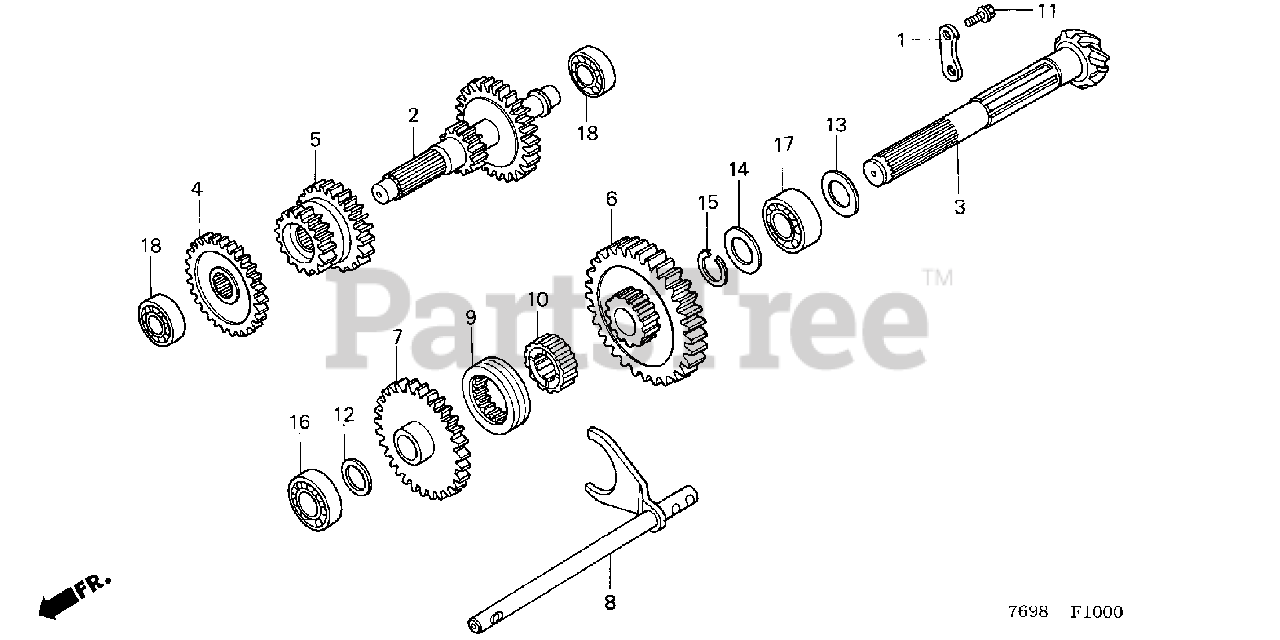

2WD LOWER COUNTERSHAFT Parts Diagram

  • Title

1

Honda 21162-752-000

PLATE B, BEARING STOPPER

$

$

Not available

2

Honda 23231-752-000

COUNTERSHAFT (LOWER)

$

$

Not available

3

Honda 23251-752-B30

SHAFT, FINAL

$

$

Not available

4

Honda 23461-752-010

GEAR, COUNTERSHAFT THIRD (39T)

$

$

Not available

5

Honda 23471-752-010

GEAR, COUNTERSHAFT FOURTH (29T/17T)

$

$

Not available

6

Honda 23521-752-010

GEAR, AUXILIARY LOW DRIVEN (39T)

$

$

Not available

7

Honda 23526-752-010

GEAR, AUXILIARY DRIVEN HIGH (35T)

$

$

Not available

8

Honda 24140-752-620

FORK, AUXILIARY SHIFT

$

$

Not available

9

Honda 24145-752-010

SELECTOR, AUXILIARY

$82.99

$

Usually ships in 3-6 days

0

10

Honda 24146-752-000

HUB, AUXILIARY SELECTOR

$

$

Not available

11

Honda 90012-752-000

BOLT, FLANGE (8X20)

$4.49

$

In Stock, only 4 left!

0

12

Honda 90413-752-000

WASHER, THRUST (22X32X1.3) (D)

$10.99

$

Usually ships in 3-6 days

0

13

Honda 90430-752-000

SHIM (25X38X1.25) (A)

$10.99

$

Usually ships in 3-6 days

0

13

Honda 90431-752-000

SHIM (25X38X1.3) (B)

$

$

Not available

13

Honda 90433-752-000

SHIM (25X38X1.4) (D)

$

$

Not available

13

Honda 90434-752-000

SHIM (25X38X1.45) (E)

$11.99

$

Usually ships in 3-6 days

0

13

Honda 90435-752-000

SHIM (25X38X1.5) (F)

$

$

Not available

13

Honda 90436-752-000

SHIM (25X38X1.55) (G)

$

$

Not available

13

Honda 90437-752-000

SHIM (25X38X1.6) (H)

$

$

Not available

13

Honda 90438-752-000

SHIM (25X38X1.65) (I)

$

$

Not available

13

Honda 90439-752-000

SHIM (25X38X1.7) (J)

$11.99

$

Usually ships in 3-6 days

0

13

Honda 90440-752-000

SHIM (25X38X1.75) (K)

$

$

Not available

14

Honda 90461-752-000

SHIM, THRUST (25X38X1.3) (B)

$12.99

$

Usually ships in 3-6 days

0

14

Honda 90462-752-000

SHIM, THRUST (25X38X1.35) (C)

$12.99

$

Usually ships in 3-6 days

0

14

Honda 90463-752-000

SHIM, THRUST (25X38X1.4) (D)

$12.99

$

Usually ships in 3-6 days

0

14

Honda 90464-752-000

SHIM, THRUST (25X38X1.45) (E)

$12.99

$

Usually ships in 3-6 days

0

14

Honda 90465-752-000

SHIM, THRUST (25X38X1.5) (F)

$12.99

$

Usually ships in 3-6 days

0

14

Honda 90466-752-000

SHIM, THRUST (25X38X1.55) (G)

$12.99

$

Usually ships in 3-6 days

0

14

Honda 90467-752-000

SHIM, THRUST (25X38X1.6) (H)

$12.99

$

Usually ships in 3-6 days

0

14

Honda 90468-752-000

SHIM, THRUST (25X38X1.65) (I)

$12.99

$

Usually ships in 3-6 days

0

14

Honda 90469-752-000

SHIM, THRUST (25X38X1.7) (J)

$12.99

$

Usually ships in 3-6 days

0

14

Honda 90470-752-000

SHIM, THRUST (25X38X1.75) (K)

$12.99

$

Usually ships in 3-6 days

0

15

Honda 90612-752-000

CIRCLIP (OUTER) (25MM)

$8.49

$

Usually ships in 3-6 days

0

16

Honda 91002-750-003

BEARING, RADIAL BALL (62/22)

$25.99

$

Usually ships in 3-6 days

0

17

Honda 91002-752-003

BEARING, RADIAL BALL (25X52X20.6)

$120.99

$

Usually ships in 3-6 days

0

18

Honda 96100-62030-00

BEARING, RADIAL BALL (6203)

$12.99

$

Usually ships in 3-6 days

0
