H5518 NA4/C (TZAC) - Honda Multi-Purpose Tractor, Made in Japan (SN: TZAC-2500001 - TZAC-3499999) 4WD LOWER COUNTERSHAFT Parts Diagram

Multi-Purpose Tractor, Made in Japan

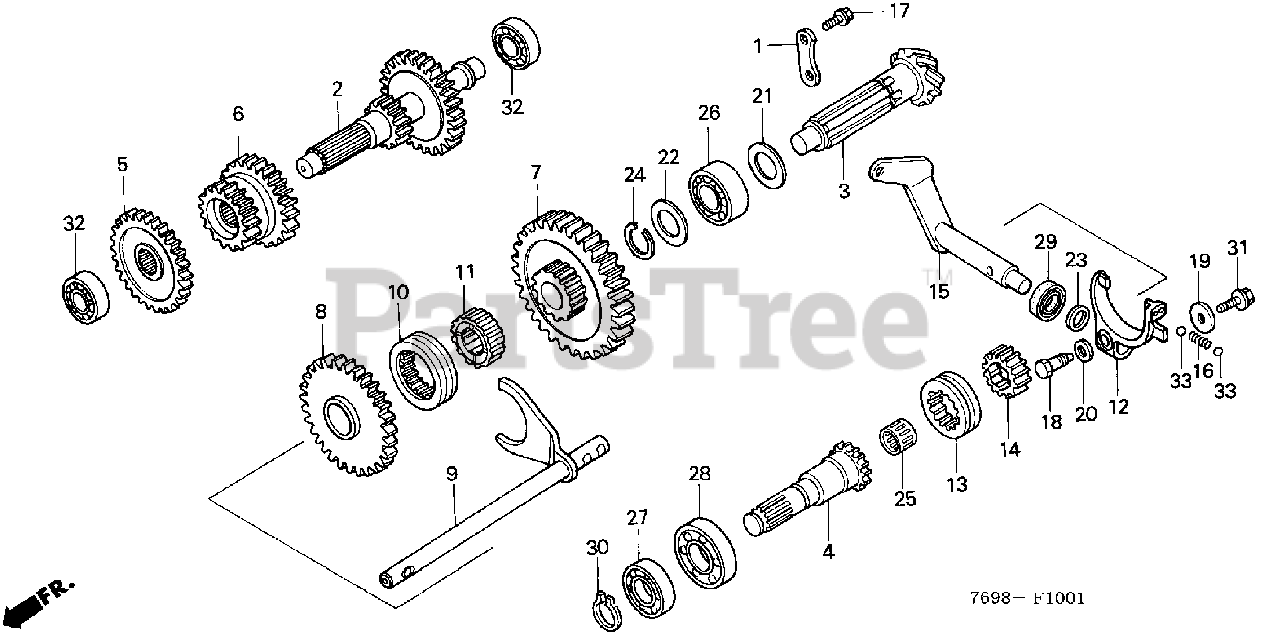

4WD LOWER COUNTERSHAFT Parts Diagram

  • Title

1

Honda 21162-752-000

PLATE B, BEARING STOPPER

$

$

Not available

2

Honda 23231-752-000

COUNTERSHAFT (LOWER)

$

$

Not available

3

Honda 23251-752-620

SHAFT, FINAL

$240.99

$

Usually ships in 3-6 days

0

4

Honda 23256-752-620

SHAFT, FINAL (B)

$174.99

$

Usually ships in 3-6 days

0

5

Honda 23461-752-010

GEAR, COUNTERSHAFT THIRD (39T)

$

$

Not available

6

Honda 23471-752-010

GEAR, COUNTERSHAFT FOURTH (29T/17T)

$

$

Not available

7

Honda 23521-752-010

GEAR, AUXILIARY LOW DRIVEN (39T)

$

$

Not available

8

Honda 23526-752-620

GEAR, AUXILIARY DRIVEN HIGH (35T)

$

$

Not available

9

Honda 24140-752-620

FORK, AUXILIARY SHIFT

$

$

Not available

10

Honda 24145-752-010

SELECTOR, AUXILIARY

$82.99

$

Usually ships in 3-6 days

0

11

Honda 24146-752-000

HUB, AUXILIARY SELECTOR

$

$

Not available

12

Honda 24311-752-620

FORK, SHIFT (2/4WD)

$

$

Not available

13

Honda 24315-752-620

SELECTOR, CHANGE (2/4WD)

$

$

Not available

14

Honda 24316-752-620

HUB, CHANGE (2/4WD)

$

$

Not available

15

Honda 24321-752-620

SHAFT, SHIFT (2/4WD)

$

$

Not available

16

Honda 24451-752-620

SPRING, BALL SETTING

$

$

Not available

17

Honda 90012-752-000

BOLT, FLANGE (8X20)

$4.49

$

In Stock, only 4 left!

0

18

Honda 90029-PB6-000

BOLT, SPECIAL (8X22)

$9.99

$

Usually ships in 3-6 days

0

19

Honda 90402-752-620

WASHER (6X26X3.2)

$10.99

$

Usually ships in 3-6 days

0

20

Honda 90412-679-000

WASHER, CONICAL SPRING (8MM)

$7.49

$

Usually ships in 3-6 days

0

21

Honda 90430-752-000

SHIM (25X38X1.25) (A)

$10.99

$

Usually ships in 3-6 days

0

21

Honda 90431-752-000

SHIM (25X38X1.3) (B)

$

$

Not available

21

Honda 90433-752-000

SHIM (25X38X1.4) (D)

$

$

Not available

21

Honda 90434-752-000

SHIM (25X38X1.45) (E)

$11.99

$

Usually ships in 3-6 days

0

21

Honda 90435-752-000

SHIM (25X38X1.5) (F)

$

$

Not available

21

Honda 90436-752-000

SHIM (25X38X1.55) (G)

$

$

Not available

21

Honda 90437-752-000

SHIM (25X38X1.6) (H)

$

$

Not available

21

Honda 90438-752-000

SHIM (25X38X1.65) (I)

$

$

Not available

21

Honda 90439-752-000

SHIM (25X38X1.7) (J)

$11.99

$

Usually ships in 3-6 days

0

21

Honda 90440-752-000

SHIM (25X38X1.75) (K)

$

$

Not available

22

Honda 90461-752-000

SHIM, THRUST (25X38X1.3) (B)

$12.99

$

Usually ships in 3-6 days

0

22

Honda 90462-752-000

SHIM, THRUST (25X38X1.35) (C)

$12.99

$

Usually ships in 3-6 days

0

22

Honda 90463-752-000

SHIM, THRUST (25X38X1.4) (D)

$12.99

$

Usually ships in 3-6 days

0

22

Honda 90464-752-000

SHIM, THRUST (25X38X1.45) (E)

$12.99

$

Usually ships in 3-6 days

0

22

Honda 90465-752-000

SHIM, THRUST (25X38X1.5) (F)

$12.99

$

Usually ships in 3-6 days

0

22

Honda 90466-752-000

SHIM, THRUST (25X38X1.55) (G)

$12.99

$

Usually ships in 3-6 days

0

22

Honda 90467-752-000

SHIM, THRUST (25X38X1.6) (H)

$12.99

$

Usually ships in 3-6 days

0

22

Honda 90468-752-000

SHIM, THRUST (25X38X1.65) (I)

$12.99

$

Usually ships in 3-6 days

0

22

Honda 90469-752-000

SHIM, THRUST (25X38X1.7) (J)

$12.99

$

Usually ships in 3-6 days

0

22

Honda 90470-752-000

SHIM, THRUST (25X38X1.75) (K)

$12.99

$

Usually ships in 3-6 days

0

23

Honda 90501-752-620

WASHER, THRUST (16X24X2)

$4.99

$

Usually ships in 3-6 days

0

24

Honda 90612-752-000

CIRCLIP (OUTER) (25MM)

$8.49

$

Usually ships in 3-6 days

0

25

Honda 91001-733-931

BEARING, NEEDLE (17X21X17)

$18.99

$

Usually ships in 3-6 days

0

26

Honda 91002-752-003

BEARING, RADIAL BALL (25X52X20.6)

$120.99

$

Usually ships in 3-6 days

0

27

Honda 91003-GE0-003

SEE PART DETAILS - SUP; BEARING, RADIAL BALL (60/22)
(Superseded to 91003-751-701)

$

$

Not available

27

Honda 91003-751-701

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (60/22) (TMB)

$

$

Not available

28

Honda 91014-752-621

BEARING, RADIAL BALL (60/28)

$28.99

$

Usually ships in 3-6 days

0

29

Honda 91211-PE9-003

OIL SEAL (16X24X6) (ARAI)

$

$

Not available

30

Honda 94510-22000

CIRCLIP (OUTER) (22MM)

$1.99

$

Usually ships in 3-6 days

0

31

Honda 95701-06016-08

BOLT, FLANGE (6X16)

$2.49

$

In Stock, only 4 left!

0

32

Honda 96100-62030-00

BEARING, RADIAL BALL (6203)

$12.99

$

Usually ships in 3-6 days

0

33

Honda 96211-10000

BALL, STEEL (#10) (5/16)

$1.99

$

Usually ships in 3-6 days

0
