H5518 NA4/C (TZAC) - Honda Multi-Purpose Tractor, Made in Japan (SN: TZAC-2500001 - TZAC-3499999) MAINSHAFT Parts Diagram

Multi-Purpose Tractor, Made in Japan

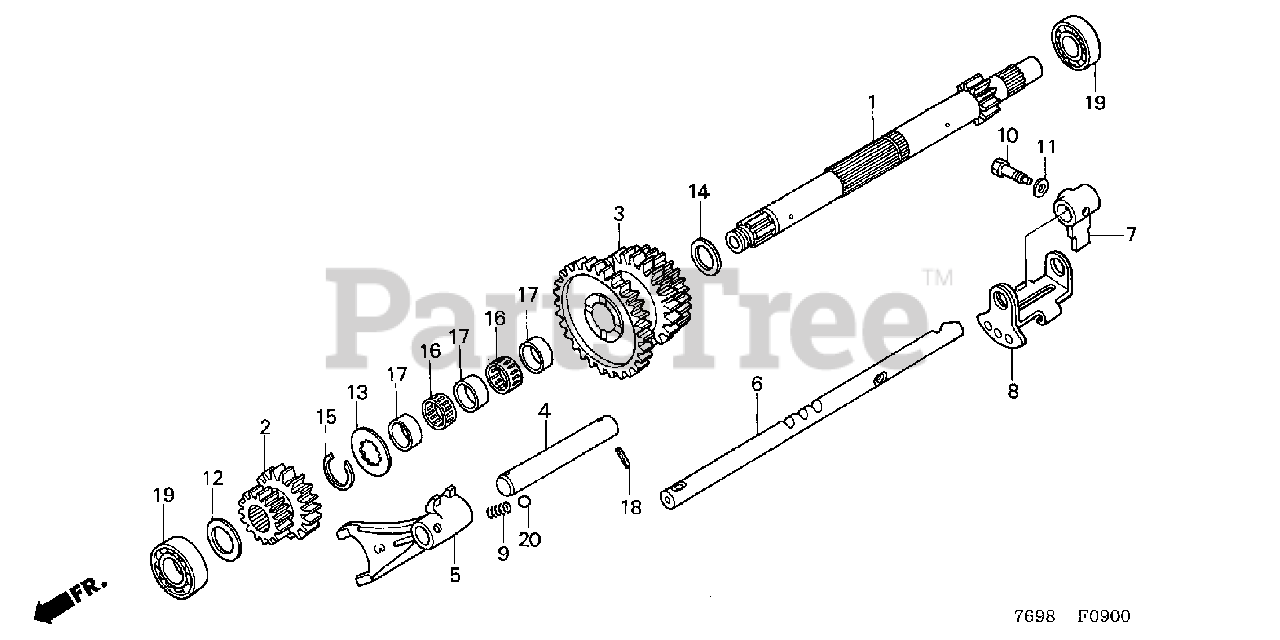

MAINSHAFT Parts Diagram

  • Title

1

Honda 23111-752-010

MAINSHAFT

$260.99

$

Usually ships in 3-6 days

0

2

Honda 23411-752-010

GEAR, THIRD-FOURTH CHANGE

$

$

Not available

3

Honda 23415-752-010

GEAR, FIRST IDLE (41T-31T-27T)

$

$

Not available

4

Honda 24111-752-000

SHAFT, MAIN CHANGE

$

$

Not available

5

Honda 24122-752-000

SEE PART DETAILS - SUP; FORK, SHIFT (3-4)
(Superseded to 24122-752-010)

$

$

Not available

5

Honda 24122-752-010

SEE PART DETAILS - PRI; FORK, SHIFT (3-4)

$

$

Not available

6

Honda 24342-752-B30

SHAFT, SHIFT PIECE

$82.99

$

Usually ships in 3-6 days

0

7

Honda 24421-752-000

PIECE, SHIFT

$39.99

$

Usually ships in 3-6 days

0

8

Honda 24427-752-000

PLATE, INTERLOCK

$

$

Not available

9

Honda 24456-PH8-000

SPRING A, BALL SETTING

$

$

Not available

10

Honda 90029-611-010

SEE PART DETAILS - PRI; BOLT, SPECIAL (8X24)

$12.99

$

Usually ships in 3-6 days

0

11

Honda 90412-679-000

WASHER, CONICAL SPRING (8MM)

$7.49

$

Usually ships in 3-6 days

0

12

Honda 90443-430-000

WASHER, THRUST (20X31.5)

$12.99

$

Usually ships in 3-6 days

0

13

Honda 90443-752-003

WASHER, SPLINE (23MM)

$11.99

$

Usually ships in 3-6 days

0

14

Honda 90457-KA4-700

WASHER, THRUST (24X36)

$

$

Not available

15

Honda 90611-752-000

CIRCLIP (OUTER) (23MM)

$8.49

$

Usually ships in 3-6 days

0

16

Honda 91021-430-006

BEARING, NEEDLE (24X28X13) (TOMUSON)

$

$

Not available

17

Honda 91555-752-000

COLLAR A, FIRST IDLE GEAR

$7.99

$

Usually ships in 3-6 days

0

18

Honda 94305-30182

PIN, SPRING (3X18)

$1.99

$

Usually ships in 3-6 days

0

19

Honda 96100-62040-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6204)

$18.99

$

In Stock, only 3 left!

0

20

Honda 96211-10000

BALL, STEEL (#10) (5/16)

$1.99

$

Usually ships in 3-6 days

0
