H5518 NAC2/A (TZAC) - Honda Multi-Purpose Tractor, Made in Japan (SN: TZAC-3500001 - TZAC-3599999) CRANKSHAFT Parts Diagram

Multi-Purpose Tractor, Made in Japan

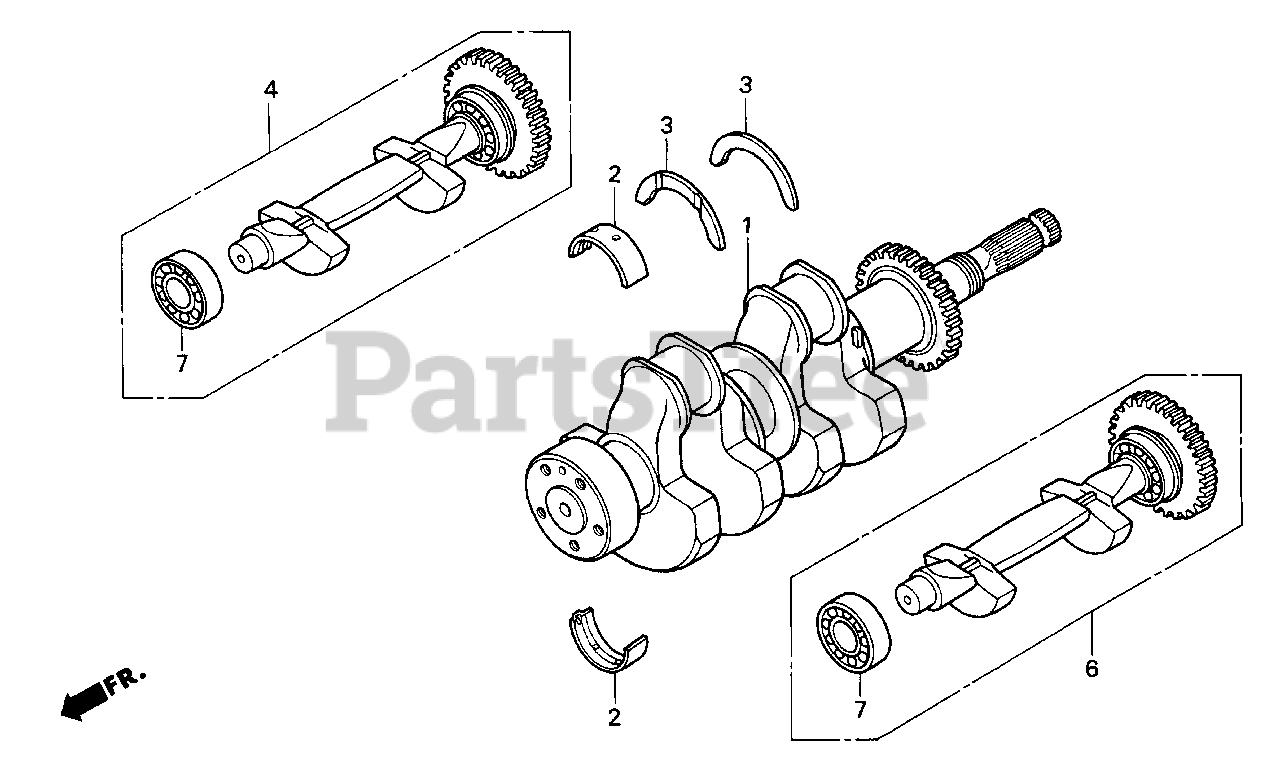

CRANKSHAFT Parts Diagram

  • Title
1

Honda 13310-ZG8-010

CRANKSHAFT

$754.99

$

Usually ships in 3-6 days

0

2

Honda 13321-ZG8-003

BEARING A, MAIN (BLUE)

$25.99

$

Usually ships in 3-6 days

0

2

Honda 13322-ZG8-003

BEARING B, MAIN (BLACK)

$25.99

$

Usually ships in 3-6 days

0

2

Honda 13323-ZG8-003

BEARING C, MAIN (BROWN)

$25.99

$

Usually ships in 3-6 days

0

2

Honda 13324-ZG8-003

BEARING D, MAIN (GREEN)

$25.99

$

Usually ships in 3-6 days

0

2

Honda 13325-ZG8-003

BEARING E, MAIN (YELLOW)

$25.99

$

Usually ships in 3-6 days

0

2

Honda 13326-ZG8-003

BEARING F, MAIN (PINK)

$25.99

$

Usually ships in 3-6 days

0

2

Honda 13327-ZG8-003

BEARING G, MAIN (RED)

$25.99

$

Usually ships in 3-6 days

0

3

Honda 13331-679-003

WASHER, THRUST

$25.99

$

Usually ships in 3-6 days

0

4

Honda 13350-ZG8-000

WEIGHT, R. BALANCER

$328.99

$

Usually ships in 3-6 days

0

6

Honda 13360-ZG8-000

WEIGHT, L. BALANCER

$342.99

$

Usually ships in 3-6 days

0

7

Honda 96100-62030-00

BEARING, RADIAL BALL (6203)

$11.99

$

Usually ships in 3-6 days

0
