H6522 A4H/A (TZAD) - Honda Compact Tractor, Made in Japan (SN: TZAD-1001870 - TZAD-1099999) PISTON Parts Diagram

Compact Tractor, Made in Japan

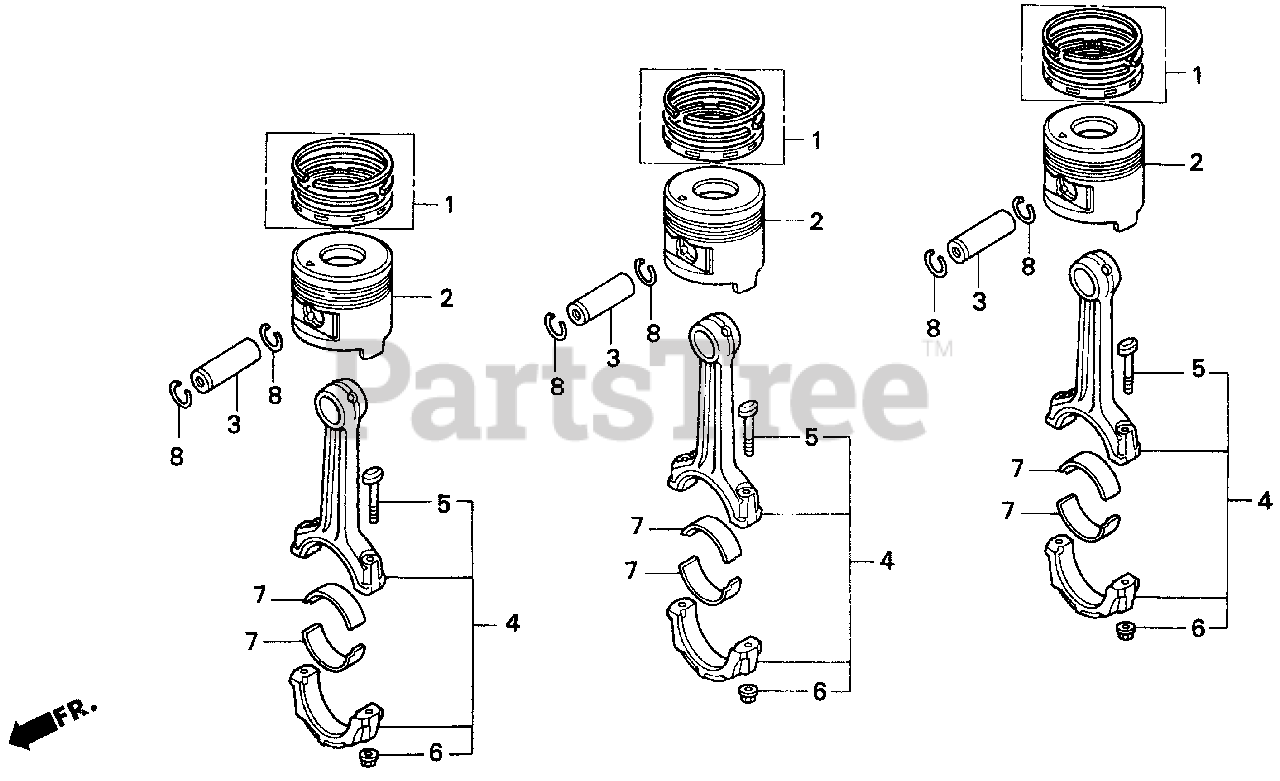

PISTON Parts Diagram

  • Title

1

Honda 13010-ZG6-010

RING SET, PISTON (STD)

$

$

Not available

1

Honda 13011-ZG6-010

RING SET, PISTON (OS 0.25)

$102.99

$

Usually ships in 3-6 days

0

1

Honda 13012-ZG6-010

RING SET, PISTON (OS 0.50)

$102.99

$

Usually ships in 3-6 days

0

2

Honda 13101-ZG6-L60

PISTON (USA)

$

$

Not available

2

Honda 13104-ZG6-L60

PISTON (OS 0.25)

$

$

Not available

2

Honda 13105-ZG6-L60

PISTON (OS 0.50)

$226.99

$

Usually ships in 3-6 days

0

3

Honda 13111-ZG5-000

PIN, PISTON

$34.99

$

Usually ships in 3-6 days

0

4

Honda 13200-ZG3-000

ROD ASSY., CONNECTING

$287.99

$

Usually ships in 3-6 days

0

5

Honda 13204-ZG3-003

BOLT, CONNECTING ROD (8X51)

$8.49

$

Usually ships in 3-6 days

0

6

Honda 13205-ZG3-003

NUT, CONNECTING ROD

$5.49

$

Usually ships in 3-6 days

0

7

Honda 13211-ZG3-003

BEARING A, CONNECTING ROD (BLUE)

$26.99

$

Usually ships in 3-6 days

0

7

Honda 13212-ZG3-003

BEARING B, CONNECTING ROD (BLACK)

$26.99

$

Usually ships in 3-6 days

0

7

Honda 13213-ZG3-003

BEARING C, CONNECTING ROD (BROWN)

$26.99

$

Usually ships in 3-6 days

0

7

Honda 13214-ZG3-003

BEARING D, CONNECTING ROD (GREEN)

$26.99

$

Usually ships in 3-6 days

0

7

Honda 13215-ZG3-003

BEARING E, CONNECTING ROD (YELLOW)

$26.99

$

Usually ships in 3-6 days

0

7

Honda 13216-ZG3-003

BEARING, CONNECTING ROD (F)(PINK)

$26.99

$

Usually ships in 3-6 days

0

7

Honda 13217-ZG3-003

BEARING G, CONNECTING ROD (RED)

$25.99

$

Usually ships in 3-6 days

0

8

Honda 90601-ZG3-000

CLIP, PISTON PIN

$2.99

$

Usually ships in 3-6 days

0
