H7500 (0060391) - Honeywell Portable Generator (SN: 7515123A - 7516022A) (2012) Cylinder Head Parts Diagram

Portable Generator

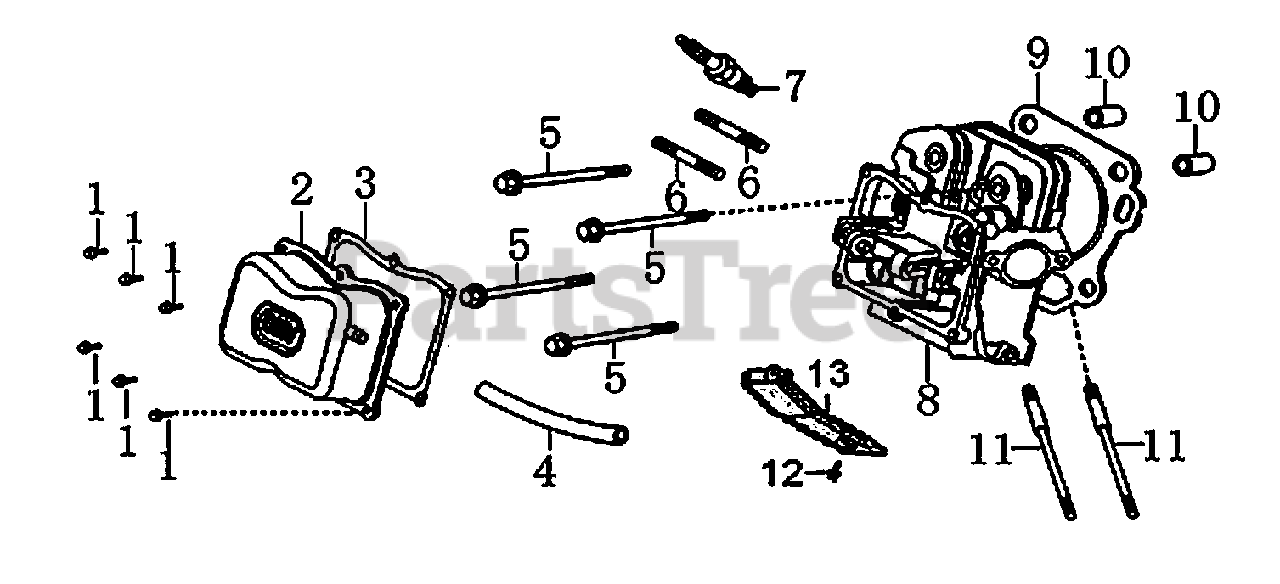

Cylinder Head Parts Diagram

  • Title

1

Generac 0J39340111

BOLT' FLANGE

$1.49

$

Usually ships in 2-12 days

0

2

Generac 0J39340112

COVER COMP. HEAD

$34.99

$

Usually ships in 2-12 days

0

3

Generac 0J39340113

GASKET' VALVE COVER

$7.49

$

In Stock, Qty 7

0

4

Generac 0J39340114

TUBE' BREATHER

$8.99

$

In Stock, only 1 left!

0

5

Generac 0G84420211

BOLT' FLANGE' 10×80

$5.99

$

In Stock, only 4 left!

0

6

Generac 0G84420210

BOLT' STUD' EXHAUST

$2.99

$

In Stock, only 3 left!

0

7

Generac 0J00620106

SPARK PLUG

$22.99

$

In Stock, only 1 left!

0

8

Generac 0J39340115

CYLINDER HEAD COMP
(Superseded to 0K56930SRV)

Note: ORDER 0K56930SRV

$259.99

$

In Stock, Qty 8

0

9

Generac 0J39340116

GASKET' CYLINDER

$12.99

$

In Stock, only 1 left!

0

10

Generac 0G84420212

PIN' DOWEL

$1.49

$

In Stock, Qty 6

0

11

Generac 0G84420209

BOLT' STUD' INTAKE

$4.99

$

In Stock, only 2 left!

0

12

Generac 0G84420194

BOLT' FLANGE M6×12

$1.49

$

In Stock, Qty 6

0

13

Generac 0J39340117

SHROUD

$8.99

$

In Stock, only 2 left!

0
