HA 850 - Husqvarna Hedge Trimmer Attachment (2009-04) Gear Parts Diagram

Hedge Trimmer Attachment

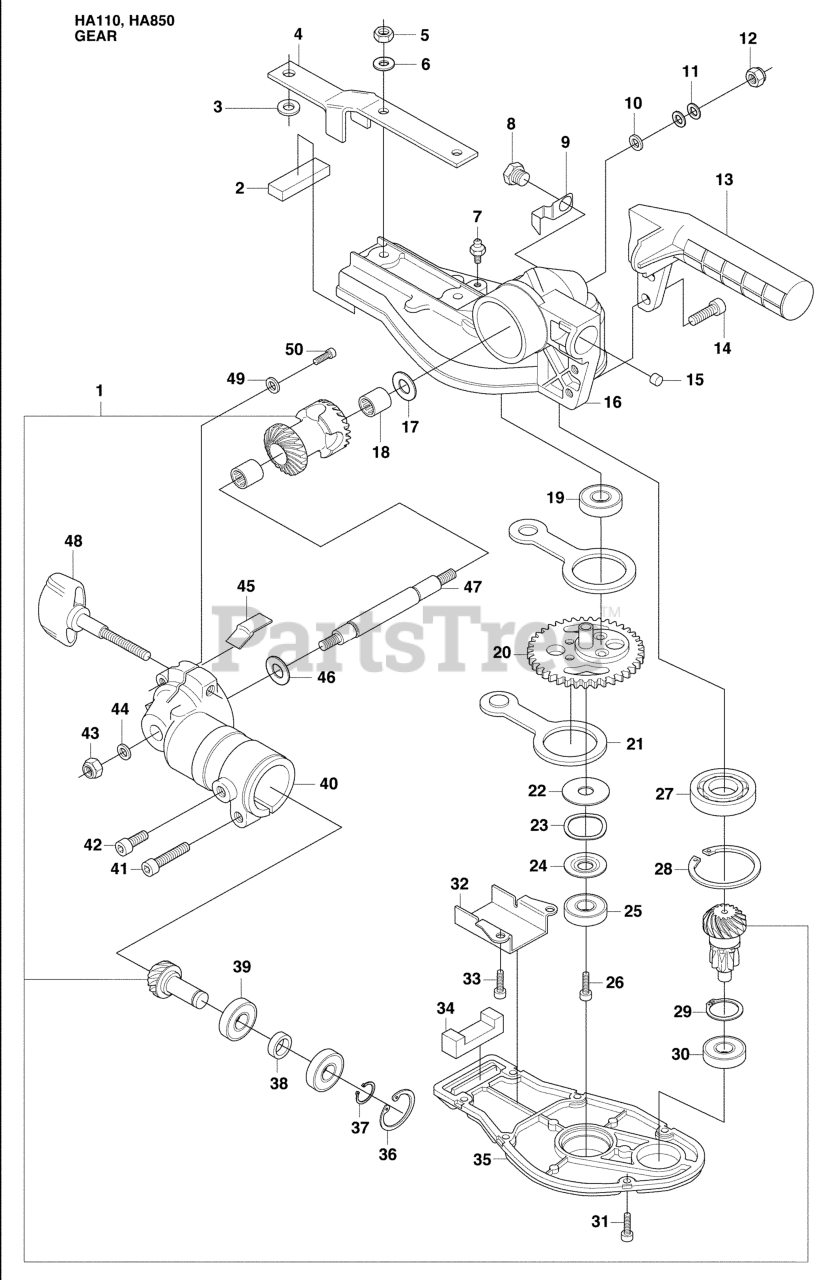

Gear Parts Diagram

  • Title

1

Husqvarna 544064001

GEAR KIT

$227.99

$

Usually ships in 3-10 days

0

2

Husqvarna 537232201

SEALING
(Superseded to 575746301)

$7.99

$

Usually ships in 3-10 days

0

3

Husqvarna 503230024

WASHER 6,4X18X1,5

$5.49

$

In Stock, only 4 left!

0

4

Husqvarna 537232101

BRACKET

$17.99

$

Usually ships in 3-10 days

0

5

Husqvarna 503221012

NUT

$3.49

$

In Stock, Qty 8

0

6

Husqvarna 734114601

WASHER
(Superseded to 819070816)

$6.99

$

In Stock, Qty 5

0

7

Husqvarna 738881001

GREASE NIPPLE

$7.99

$

Usually ships in 3-10 days

0

8

Husqvarna 537416601

PLUG *

$

$

Not available

9

Husqvarna 544000401

PLATE

$

$

Not available

10

Husqvarna 734115201

WASHER - M6

$3.49

$

In Stock, Qty 20+

0

11

Husqvarna 737385200

WASHER

$3.49

$

Usually ships in 3-10 days

0

12

Husqvarna 732251601

NUT FLANGE - M6

$3.49

$

In Stock, Qty 10

0

13

Husqvarna 537233001

HANDLE

Note: HA850

$

$

Not available

14

Husqvarna 537126401

RP SCREW
(Superseded to 725536855)

Note: HA850

$4.99

$

In Stock, Qty 20+

0

15

Husqvarna 544093101

PLUG

$

$

Not available

16

Husqvarna 537231701

GEAR HOUSING

$113.99

$

Usually ships in 3-10 days

0

17

Husqvarna 537294201

WASHER

$3.49

$

Usually ships in 3-10 days

0

18

Husqvarna 537233601

SUPPORT BUSHING

$62.99

$

Usually ships in 3-10 days

0

19

Husqvarna 738219804

BALL BEARING

$5.99

$

In Stock, only 2 left!

0

20

Husqvarna 537232801

GEAR

$102.99

$

Usually ships in 3-10 days

0

21

Husqvarna 537232001

CONNECTING ROD

$13.99

$

In Stock, only 3 left!

0

22

Husqvarna 537404801

WASHER

$13.99

$

In Stock, only 1 left!

0

23

Husqvarna 503230302

WASHER

$20.99

$

In Stock, only 1 left!

0

24

Husqvarna 537341801

WASHER

$4.99

$

Usually ships in 3-10 days

0

25

Husqvarna 738219804

BALL BEARING

$5.99

$

In Stock, only 2 left!

0

26

Husqvarna 725532305

SCREW MC6S 5X8
(Superseded to 725532555)

$3.49

$

In Stock, only 2 left!

0

27

Husqvarna 537406402

BALL BEARING

$17.99

$

Usually ships in 3-10 days

0

28

Husqvarna 735313310

RETAINING RING SGH 35

$3.49

$

Usually ships in 3-10 days

0

29

Husqvarna 735311900

RETAINING RING

$3.49

$

Usually ships in 3-10 days

0

30

Husqvarna 738219804

BALL BEARING

$5.99

$

In Stock, only 2 left!

0

31

Husqvarna 725529101

SCREW

$3.49

$

In Stock, only 4 left!

0

32

Husqvarna 537341501

PLATE

$6.99

$

In Stock, Qty 12

0

33

Husqvarna 725528755

SCREW MC6S 4X8

$3.49

$

In Stock, only 2 left!

0

34

Husqvarna 537234201

RP SEALING
(Superseded to 575746301)

$7.99

$

Usually ships in 3-10 days

0

35

Husqvarna 537231801

COVER

$62.99

$

Usually ships in 3-10 days

0

36

Husqvarna 735312510

RETAINING RING

$3.49

$

Usually ships in 3-10 days

0

37

Husqvarna 735311100

RETAINING RING

$2.49

$

In Stock, only 2 left!

0

38

Husqvarna 537233701

SPACER

$7.99

$

Usually ships in 3-10 days

0

39

Husqvarna 738219904

BALL BEARING

$20.99

$

Usually ships in 3-10 days

0

40

Husqvarna 537231601

GEAR HOUSING

$74.99

$

In Stock, only 1 left!

0

41

Husqvarna 503200725

SCREW

$3.49

$

In Stock, Qty 11

0

42

Husqvarna 503201412

SCREW

$3.99

$

In Stock, Qty 7

0

43

Husqvarna 732251601

NUT FLANGE - M6

$3.49

$

In Stock, Qty 10

0

44

Husqvarna 734115201

WASHER - M6

$3.49

$

In Stock, Qty 20+

0

45

Husqvarna 537394901

SEALING

$

$

Not available

46

Husqvarna 537294201

WASHER

$3.49

$

Usually ships in 3-10 days

0

47

Husqvarna 537232601

SHAFT

$20.99

$

Usually ships in 3-10 days

0

48

Husqvarna 537442301

KNOB

$31.99

$

Usually ships in 3-10 days

0

49

Husqvarna 734114601

WASHER
(Superseded to 819070816)

$6.99

$

In Stock, Qty 5

0

50

Husqvarna 725532955

SCREW MC6S 5X16

$7.99

$

In Stock, Qty 15

0
