HA GTH 220 B - Electrolux/AYP Lawn Tractor CHASSIS AND ENCLOSURES Parts Diagram

Lawn Tractor

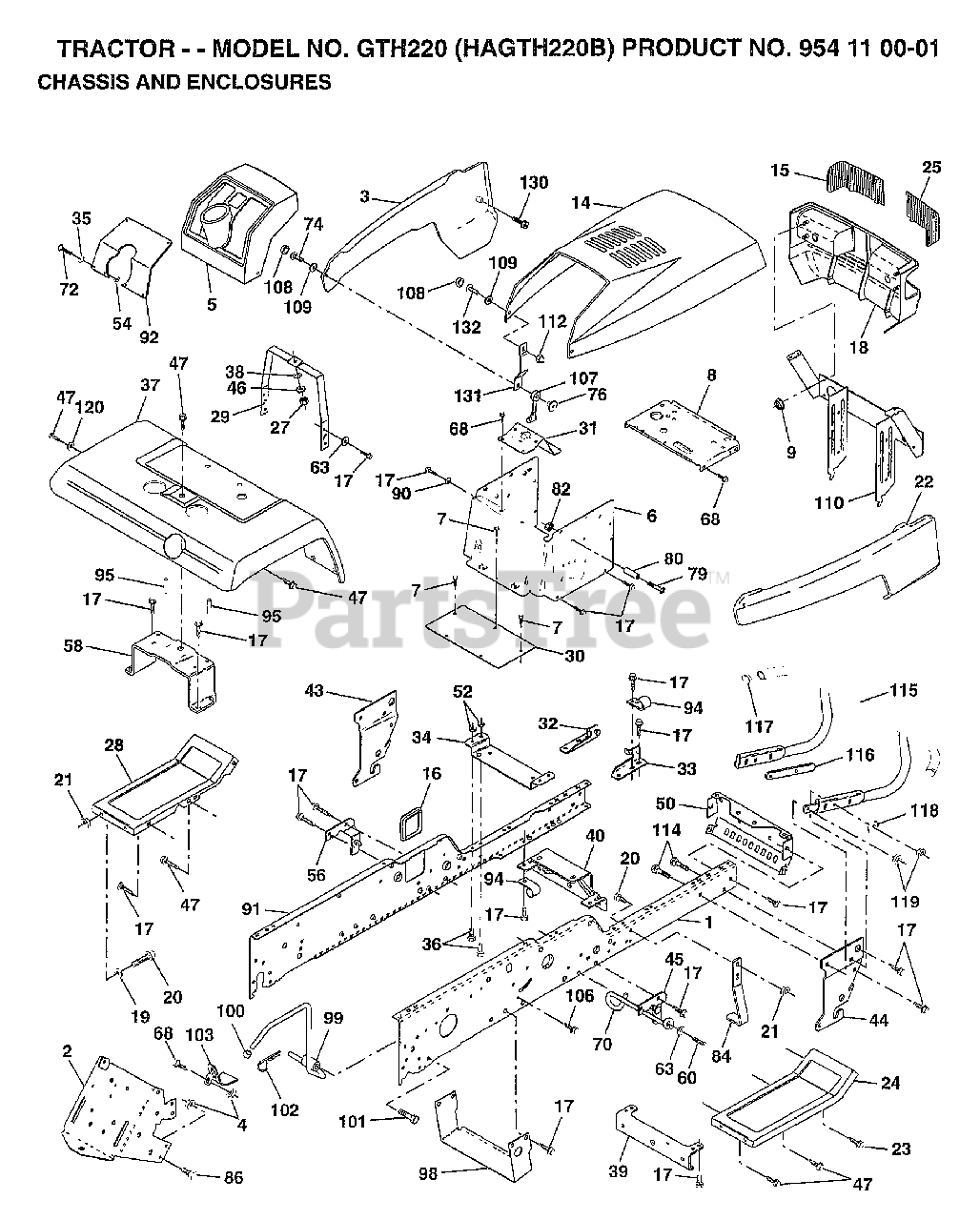

CHASSIS AND ENCLOSURES Parts Diagram

  • Title

1

Electrolux/AYP 532150253

SUB= 150253
(Superseded to 532180375)

$56.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 532140506

SUB= 140506
(Superseded to 532175282)

$

$

Not available

3

Electrolux/AYP 532150478

SUB= 150189X422
(Superseded to 532150189)

$

$

Not available

4

Electrolux/AYP 873800700

NUT, LOCK HEX 7/16

$4.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 532140452

DASHBOARD YP GRAY

$

$

Not available

6

Electrolux/AYP 532157882

SUB= 158007
(Superseded to 157882)

$

$

Not available

7

Electrolux/AYP 817720408

SCREW, 1/4-20 X 1/2
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 532145166

SUB= 145166

$

$

Not available

9

Electrolux/AYP 532108067

SUB= 108067X
(Superseded to 108067X)

$

$

Not available

14

Electrolux/AYP 532150477

SUB= 150304X422
(Superseded to 532125454)

$

$

Not available

15

Electrolux/AYP 532157068

"LENS-HEADLIGHT,LH"

$

$

Not available

16

Electrolux/AYP 532121794

SUB= 121794X
(Superseded to 121794X)

$

$

Not available

17

Electrolux/AYP 817490612

SCREW THDROL 3/8-16X3/4 TY-TT
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

18

Electrolux/AYP 532157236

GRILLE ASM

$

$

Not available

19

Electrolux/AYP 819131312

WASHER
(Superseded to 596133201)

$3.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 874760616

BOLT FIN HEX 3/8-16 X 1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 873680600

NUT, CROWNLOCK 3/8-16
(Superseded to 596322601)

$3.99

$

In Stock, Qty 20+

0

22

Electrolux/AYP 532150479

SUB= 150190X422

$

$

Not available

23

Electrolux/AYP 817490616

SCREW THDROL 3/8-16 X 1 TY-TT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 532147202

SUB= 145243X418
(Superseded to 532145243)

$

$

Not available

25

Electrolux/AYP 532157069

"LENS-HEADLIGHT,RH"

$

$

Not available

27

Electrolux/AYP 873220400

NUT, HEX 1/4-20
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

28

Electrolux/AYP 532147203

SUB= 145244X418

$

$

Not available

29

Electrolux/AYP 532145205

SUB= 145205

$

$

Not available

30

Electrolux/AYP 532145052

SUB= 145052

$

$

Not available

31

Electrolux/AYP 532145183

SUB= 145183

$

$

Not available

32

Electrolux/AYP 532141315

SUB= 141315

$7.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 532141314

SUB= 141314
(Superseded to 141314)

$

$

Not available

34

Electrolux/AYP 532142131

SUB= 142131

$6.49

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 819111116

WASHER 11/32 X 11/16 X 16 GA.
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

36

Electrolux/AYP 874780512

BOLT, FIN HEX 5/16-18 X 3/4
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

37

Electrolux/AYP 532141449

SUB= 140002X422
(Superseded to 532140002)

$

$

Not available

38

Electrolux/AYP 810040400

WASHER, LOCK 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0

39

Electrolux/AYP 532136961

SUB= 136961

$

$

Not available

40

Electrolux/AYP 532156111

SUB= 156111

$9.49

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 532136939

SUB= 136939

$

$

Not available

44

Electrolux/AYP 532136940

SUB= 136940

$

$

Not available

45

Electrolux/AYP 532154913

SUB= 154913

$

$

Not available

46

Electrolux/AYP 819091216

WASHER, 9/32 X 3/4 X 16 GA.
(Superseded to 596204201)

$3.99

$

In Stock, only 1 left!

0

47

Electrolux/AYP 817490608

SCREW THDROL 3/8-16X1/2 TY-TT

$6.49

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 532152728

SUB= 152728

$

$

Not available

52

Electrolux/AYP 873800500

LOCKNUT
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

54

Electrolux/AYP 873510500

NUT, KEPS 5/16-18
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

56

Electrolux/AYP 532154914

SUB= 154914

$

$

Not available

58

Electrolux/AYP 532137113

SUB= 137113
(Superseded to 532183569)

$14.99

$

Usually ships in 3-10 days

0

60

Electrolux/AYP 817490620

SCREW THDROL 3/8-16 X 1-1/4 TYTT
(Superseded to 874760620)

$7.49

$

In Stock, only 3 left!

0

63

Electrolux/AYP 819131614

WASHER 13/32 X 1 X 14 GA
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

68

Electrolux/AYP 817490508

SCREW, 5/16-18 X 1/2 HEX, SELF TAPPING

$6.49

$

Usually ships in 3-10 days

0

70

Electrolux/AYP 532137159

SUB= 137159
(Superseded to 532177679)

$9.99

$

Usually ships in 3-10 days

0

72

Electrolux/AYP 874180512

SCREW MACHINE TRHD 5/16-18 X 3/4

$4.99

$

Usually ships in 3-10 days

0

74

Electrolux/AYP 874191008

SCREW, MACHINE #10-24
(Superseded to 871191008)

$6.49

$

Usually ships in 3-10 days

0

76

Electrolux/AYP 532125004

SUB= 2029J
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

79

Electrolux/AYP 874981020

SCREW, MACHINE #10-24 X 1/4
(Superseded to 874981024)

$9.99

$

In Stock, Qty 16

0

80

Electrolux/AYP 532007206

SUB= 7206J

$7.49

$

In Stock, Qty 15

0

82

Electrolux/AYP 873731000

NUT, #10-24
(Superseded to 873271000)

$2.99

$

Usually ships in 3-10 days

0

84

Electrolux/AYP 532142992

SUB= 142992

$6.49

$

Usually ships in 3-10 days

0

86

Electrolux/AYP 874760716

BOLT, FIN HEX 7/16-14 UNC X 1
(Superseded to 874780716)

$4.99

$

Usually ships in 3-10 days

0

90

Electrolux/AYP 811050600

WASHER LOCK
(Superseded to 810040600)

$3.49

$

Usually ships in 3-10 days

0

91

Electrolux/AYP 532156586

SUB= 156586

$

$

Not available

92

Electrolux/AYP 532157221

SUB= 156283X010
(Superseded to 532156283)

$7.49

$

Usually ships in 3-10 days

0

94

Electrolux/AYP 532100207

SUB= 100207K

$4.99

$

Usually ships in 3-10 days

0

95

Electrolux/AYP 532105531

SUB= 105531X

$2.99

$

Usually ships in 3-10 days

0

98

Electrolux/AYP 532140503

SUB= 140503
(Superseded to 532175847)

$

$

Not available

99

Electrolux/AYP 532140871

SUB= 140871

$

$

Not available

100

Electrolux/AYP 532124236

SUB= 124236X
(Superseded to 532071673)

$4.99

$

In Stock, only 2 left!

0

101

Electrolux/AYP 817490628

SCREW, THDROL 3/8-16 X 1-3/4
(Superseded to 596564003)

$3.49

$

Usually ships in 3-10 days

0

102

Electrolux/AYP 532124788

SUB= 4497H
(Superseded to 532004497)

$10.99

$

In Stock, Qty 20+

0

103

Electrolux/AYP 532142273

SUB= 142273
(Superseded to 142273)

$

$

Not available

106

Electrolux/AYP 532138776

SUB= 157722
(Superseded to 532157722)

$3.49

$

In Stock, Qty 20+

0

107

Electrolux/AYP 532109808

SUB= 109808X

$4.99

$

In Stock, Qty 20+

0

108

Electrolux/AYP 532110356

SUB= 110356X

$3.99

$

Usually ships in 3-10 days

0

109

Electrolux/AYP 532110357

SUB= 110357X

$

$

Not available

110

Electrolux/AYP 532150200

PIVOT.ASM.GRL/HD

$

$

Not available

112

Electrolux/AYP 532060867

SUB= 60867
(Superseded to 60867)

$4.99

$

In Stock, Qty 20+

0

114

Electrolux/AYP 872140610

BOLT, CARRIAGE 3/8-16 X 1-1/4
(Superseded to 583611601)

$3.99

$

Usually ships in 3-10 days

0

115

Electrolux/AYP 532150300

SUB= 150300
(Superseded to 532170311)

$

$

Not available

116

Electrolux/AYP 532141461

SUB= 141461
(Superseded to 532170310)

$2.99

$

Usually ships in 3-10 days

0

117

REFER TO IMAGE

$

$

Not available

118

Electrolux/AYP 819131316

WASHER 13/32 X 13/16 X 16 GA

$4.99

$

In Stock, Qty 9

0

119

Electrolux/AYP 873680600

NUT, CROWNLOCK 3/8-16
(Superseded to 596322601)

$3.99

$

In Stock, Qty 20+

0

120

Electrolux/AYP 819131616

WASHER
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

130

Electrolux/AYP 817521312

SCREW, SLTD HEX HD W/PL WASHER

$

$

Not available

131

Electrolux/AYP 532150195

SUB= 150195

$

$

Not available

132

Electrolux/AYP 874291006

SCREW, TRUSS HD #10-24 X 3/8

$2.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 532125085

SUB= 8022J
(Superseded to 8022J)

$

$

Not available
