HA LT 150 E - Electrolux/AYP Lawn Tractor CHASSIS/ENCLOSURES Parts Diagram

Lawn Tractor

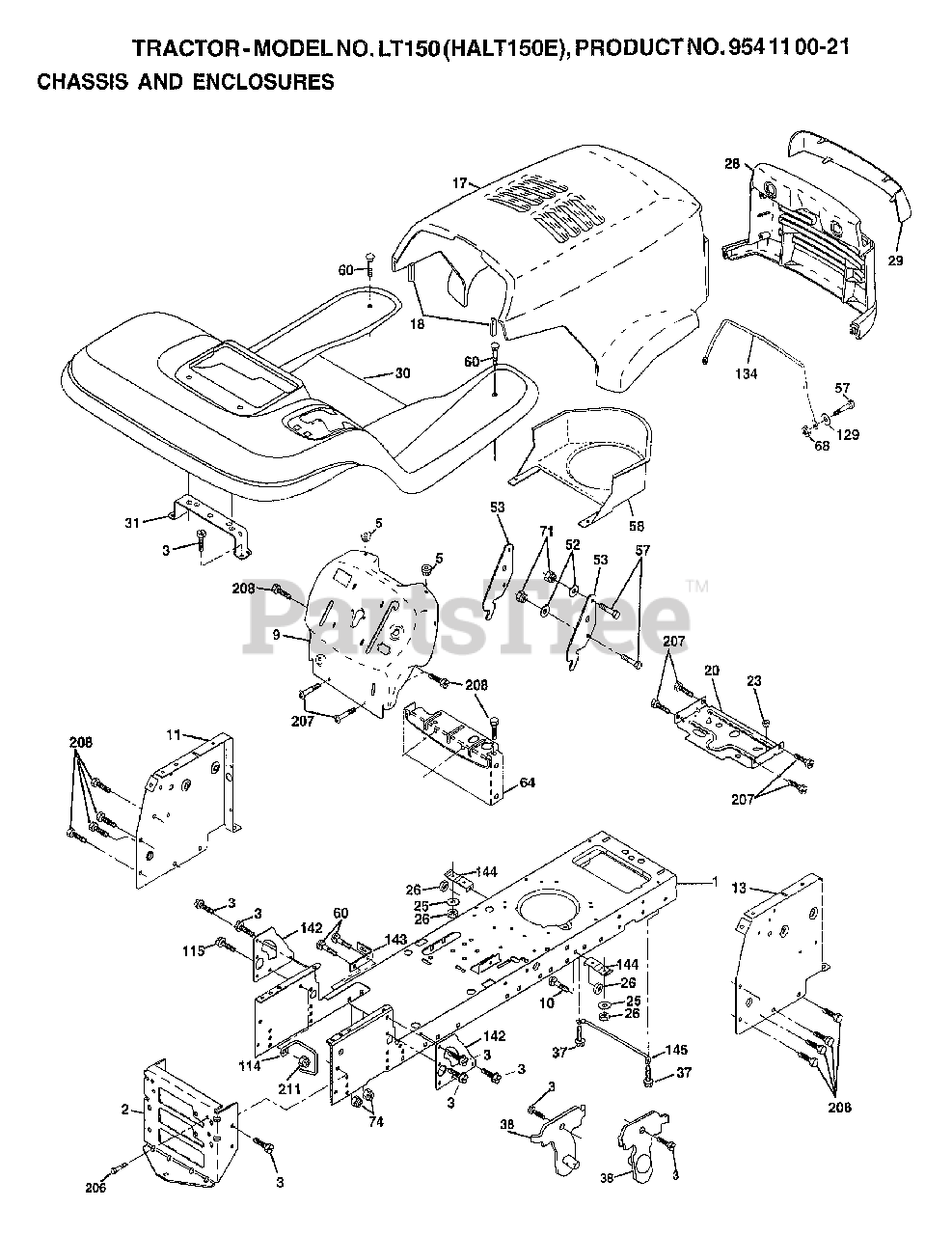

CHASSIS/ENCLOSURES Parts Diagram

  • Title

1

Electrolux/AYP 532169830

CHASSIS STAMPING

$

$

Not available

2

Electrolux/AYP 532169061

DRAWBAR
(Superseded to 532176554)

$40.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 817060612

SUB=17060612
(Superseded to 817000612)

$4.99

$

In Stock, Qty 20+

0

5

Electrolux/AYP 532155272

SUB= 155272

$7.49

$

In Stock, Qty 5

0

9

Electrolux/AYP 532171708

DASH
(Superseded to 532168337)

$

$

Not available

10

Electrolux/AYP 872140608

BOLT CARRIAGE 3/8-16X1
(Superseded to 872110608)

$6.49

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 532155927

SUB= 155927
(Superseded to 532174996)

$11.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 532172108

PANEL DASH

$

$

Not available

17

Electrolux/AYP 532165378

HOOD
(Superseded to 532156051)

$519.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 532126938

"BUMPER,HOOD T"

$

$

Not available

20

Electrolux/AYP 532156437

SUB= 156437
(Superseded to 532180679)

$10.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 532124028

GROMMET T

$6.99

$

In Stock, only 3 left!

0

25

Electrolux/AYP 819131312

WASHER
(Superseded to 596133201)

$3.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 873800600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 532165379

GRILLE
(Superseded to 532156880)

$

$

Not available

29

Electrolux/AYP 532165380

LENS
(Superseded to 532149777)

$

$

Not available

30

Electrolux/AYP 532171854

FENDER FOOTREST
(Superseded to 532192813)

$

$

Not available

31

Electrolux/AYP 532139976

SUB= 139976

$10.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 817490508

SCREW, 5/16-18 X 1/2 HEX, SELF TAPPING

$6.49

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 532169834

BRK ASM
(Superseded to 532175710)

$9.99

$

In Stock, only 2 left!

0

51

Electrolux/AYP 873800400

NUT LOCK HEX W/INS 1/4-20
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 819091416

WASHER 9/32 X 7/8 X 16 GA

$6.49

$

Usually ships in 3-10 days

0

53

Electrolux/AYP 532150067

SUB= 150067X431

$

$

Not available

57

Electrolux/AYP 874780412

BOLT HEX 1/4-20 X 3/4
(Superseded to 874780416)

$6.49

$

Usually ships in 3-10 days

0

58

Electrolux/AYP 532150127

SUB= 150127

$

$

Not available

60

Electrolux/AYP 872140606

BOLT

$

$

Not available

64

Electrolux/AYP 532154798

SUB= 154798
(Superseded to 154798)

$31.99

$

Usually ships in 3-10 days

0

68

Electrolux/AYP 873510400

LOCKNUT
(Superseded to 873640400)

$

$

Not available

71

Electrolux/AYP 873680400

NUT CROWNLOCK 1/4-20
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

74

Electrolux/AYP 873680600

NUT, CROWNLOCK 3/8-16
(Superseded to 596322601)

$3.99

$

In Stock, Qty 20+

0

114

Electrolux/AYP 532158112

KEEPER BELT REAR
(Superseded to 584448901)

$8.99

$

Usually ships in 3-10 days

0

115

Electrolux/AYP 817060620

SCREW

$7.49

$

In Stock, Qty 20+

0

129

Electrolux/AYP 819091016

WASHER 9/32 X 5/8 X 16 GA.
(Superseded to 596582301)

$3.99

$

In Stock, Qty 12

0

134

Electrolux/AYP 532160219

"ROD-SUPPORT,HOOD"

$7.99

$

Usually ships in 3-10 days

0

142

Electrolux/AYP 532165867

PLATE.REINFORCEMENT
(Superseded to 532175702)

$7.49

$

Usually ships in 3-10 days

0

143

Electrolux/AYP 532154966

SUB= 154966
(Superseded to 532186689)

$6.49

$

In Stock, Qty 11

0

144

Electrolux/AYP 532154207

SUB= 154207
(Superseded to 532175582)

$7.49

$

Usually ships in 3-10 days

0

145

Electrolux/AYP 532156524

SUB= 156524
(Superseded to 532409167)

$13.99

$

Usually ships in 3-10 days

0

206

Electrolux/AYP 532170165

BOLT SHOULDER

$4.99

$

In Stock, Qty 20+

0

207

Electrolux/AYP 817670508

SCREW

$6.49

$

In Stock, only 2 left!

0

208

Electrolux/AYP 817670608

SCREW

$6.49

$

In Stock, only 2 left!

0

211

Electrolux/AYP 532145212

SUB= 145212
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

Electrolux/AYP 532005479

SUB= 5479J

$4.99

$

Usually ships in 3-10 days

0
