HA LT 150 E - Electrolux/AYP Lawn Tractor STEERING Parts Diagram

Lawn Tractor

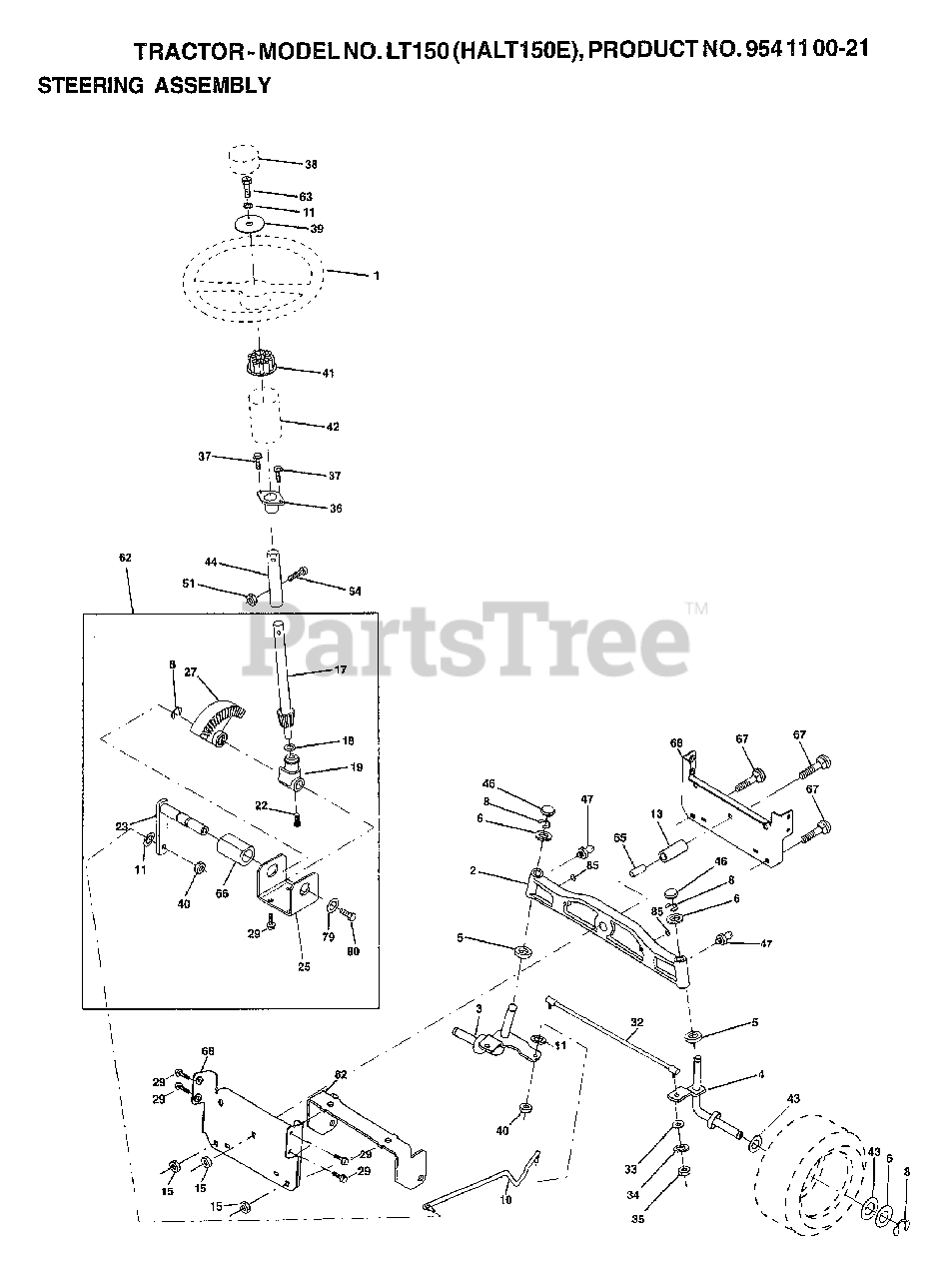

STEERING Parts Diagram

  • Title

1

Electrolux/AYP 532124415

STEERING WHEEL

$

$

Not available

2

Electrolux/AYP 532165854

AXLE ASM
(Superseded to 532172393)

$148.99

$

In Stock, only 1 left!

0

3

Electrolux/AYP 532169840

SPINDLE ASM
(Superseded to 596873901)

$20.99

$

In Stock, Qty 5

0

4

Electrolux/AYP 532169839

SPINDLE ASM
(Superseded to 596873801)

$34.99

$

In Stock, Qty 11

0

5

Electrolux/AYP 532124931

SUB= 6266H
(Superseded to 532006266)

$4.99

$

In Stock, Qty 11

0

6

Electrolux/AYP 532121748

SUB= 121748X

$4.99

$

In Stock, Qty 20+

0

8

Electrolux/AYP 812000029

RING KLIP #T5304-75

$1.49

$

In Stock, Qty 20+

0

10

Electrolux/AYP 532169832

LINK DRAG

$85.99

$

In Stock, only 2 left!

0

11

Electrolux/AYP 810040600

WASHER LOCK HVY HLCL SPR 3/8
(Superseded to 539990118)

$3.49

$

In Stock, Qty 20+

0

13

Electrolux/AYP 532136518

SUB= 136518

$11.99

$

In Stock, Qty 18

0

15

Electrolux/AYP 532145212

SUB= 145212
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

17

Electrolux/AYP 532156546

SUB= 156546
(Superseded to 531166901)

$56.99

$

In Stock, only 2 left!

0

18

Electrolux/AYP 532057079

SUB= 57079

$2.49

$

In Stock, Qty 20+

0

19

Electrolux/AYP 532160395

SUPPORT SHAFT

$10.99

$

In Stock, Qty 6

0

22

Electrolux/AYP 532165857

SCREW

$3.49

$

In Stock, only 1 left!

0

23

Electrolux/AYP 532165851

SHAFT ASM PITTMAN
(Superseded to 531154301)

$34.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 532154406

SUB= 154406

$7.99

$

In Stock, only 1 left!

0

27

Electrolux/AYP 532136874

SUB= 136874

$80.99

$

In Stock, Qty 7

0

29

Electrolux/AYP 817060612

SUB=17060612
(Superseded to 817000612)

$4.99

$

In Stock, Qty 20+

0

32

Electrolux/AYP 532171888

ROD TIE

$74.99

$

In Stock, only 3 left!

0

33

Electrolux/AYP 819111216

WASHER 11/32 X 3/4 X 16 GA
(Superseded to 819111116)

$3.49

$

In Stock, Qty 19

0

34

Electrolux/AYP 810040500

WASHER, LOCK
(Superseded to 596238801)

$3.49

$

In Stock, only 2 left!

0

35

Electrolux/AYP 873540500

CROWNLOCK NUT

$3.49

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 532155099

SUB= 155099
(Superseded to 532155106)

$10.99

$

In Stock, Qty 5

0

37

Electrolux/AYP 532152927

SUB= 152927

$7.49

$

In Stock, only 3 left!

0

38

Electrolux/AYP 532124416

"INSERT,STR WHEEL"

$

$

Not available

39

Electrolux/AYP 819133812

WASHER
(Superseded to 583789501)

$

$

Not available

40

Electrolux/AYP 532124701

SUB= 7810H
(Superseded to 873610600)

$

$

Not available

41

Electrolux/AYP 232100711

ADAPTER WHEEL STRG

$

$

Not available

42

Electrolux/AYP 532169634

BOOT STEERING SHAFT
(Superseded to 532145054)

$

$

Not available

43

Electrolux/AYP 532121749

SUB= 121749X

$3.49

$

In Stock, Qty 20+

0

44

Electrolux/AYP 532153720

SUB= 153720
(Superseded to 532153721)

$

$

Not available

46

Electrolux/AYP 532121232

SUB= 121232X

$4.99

$

In Stock, Qty 20+

0

47

Electrolux/AYP 532124836

SUB= 6855M
(Superseded to 532183226)

$5.99

$

In Stock, Qty 11

0

51

Electrolux/AYP 873800500

LOCKNUT
(Superseded to 596040501)

$3.49

$

In Stock, Qty 20+

0

54

Electrolux/AYP 874780520

BOLT FIN HEX 5/16-18 UNC X 1-1/4
(Superseded to 595305701)

$4.99

$

In Stock, Qty 14

0

62

Electrolux/AYP 532167902

KIT
(Superseded to 584371701)

$159.99

$

In Stock, only 3 left!

0

63

Electrolux/AYP 874780616

BOLT FIN HEX 3/8-16 X 1
(Superseded to 596564401)

$4.99

$

In Stock, Qty 7

0

65

Electrolux/AYP 532160367

SUB= 160367
(Superseded to 532414736)

$6.99

$

In Stock, Qty 7

0

66

Electrolux/AYP 532154404

SUB= 154404

$

$

Not available

67

Electrolux/AYP 872140618

BOLT RDHD SQ 3/8-16 X 2-1/4
(Superseded to 872110618)

$5.99

$

In Stock, only 2 left!

0

68

Electrolux/AYP 532169827

AXLE
(Superseded to 531167401)

$26.99

$

In Stock, only 3 left!

0

79

Electrolux/AYP 819132012

WASHER 13/32 X 1-1/4 X 12 GA

$

$

Not available

80

Electrolux/AYP 874950612

BOLT

$5.99

$

In Stock, only 2 left!

0

82

Electrolux/AYP 532169635

BRKT
(Superseded to 532169642)

$

$

Not available

85

Electrolux/AYP 532133835

SUB= 133835

$7.49

$

Usually ships in 3-10 days

0
